TSD Hanging Type 1Phase Series

Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator

Model
TSD-10KVA
Brand
NQQK
Application:
Computer, test equipment, lighting equipment, alarm and security system, X-rey equipment, Medical equipmnet,
duplicator, broadcastion equipment, numeric control machine tool, industrial
Contact Now
Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator
Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator Wall Mounted LCD Display AC servo motor home electrical hanging voltage stabilizer regulator

Application:

Computer, test equipment, lighting equipment, alarm and security system, X-rey equipment, Medical equipmnet,
duplicator, broadcastion equipment, numeric control machine tool, industrial robot, photographicprocessing
equipment, laboratoryinstrument Hi-Fl equipment.


Specification:

Brand NQQK
product name Intelligent automatic AC voltage regulator Effectiveness ≥95%
Product number WF-10KVA Temperature rise   <60 ° C
Operating Voltage Single-phase 140V-250V Waveform distortion No additional waveform distortion
The output voltage Single phase 220V ± 3% Load power factor 0.9
Output overvoltage protection 246V ± 4V Dielectric strength 2000V / min without flashover, breakdown phenomenon
frequency 50Hz / 60Hz Insulation resistance 2 MΩ
Net weight of the machine 24.5KG Adjust the time <1 second (when the input voltage changes by 10%)

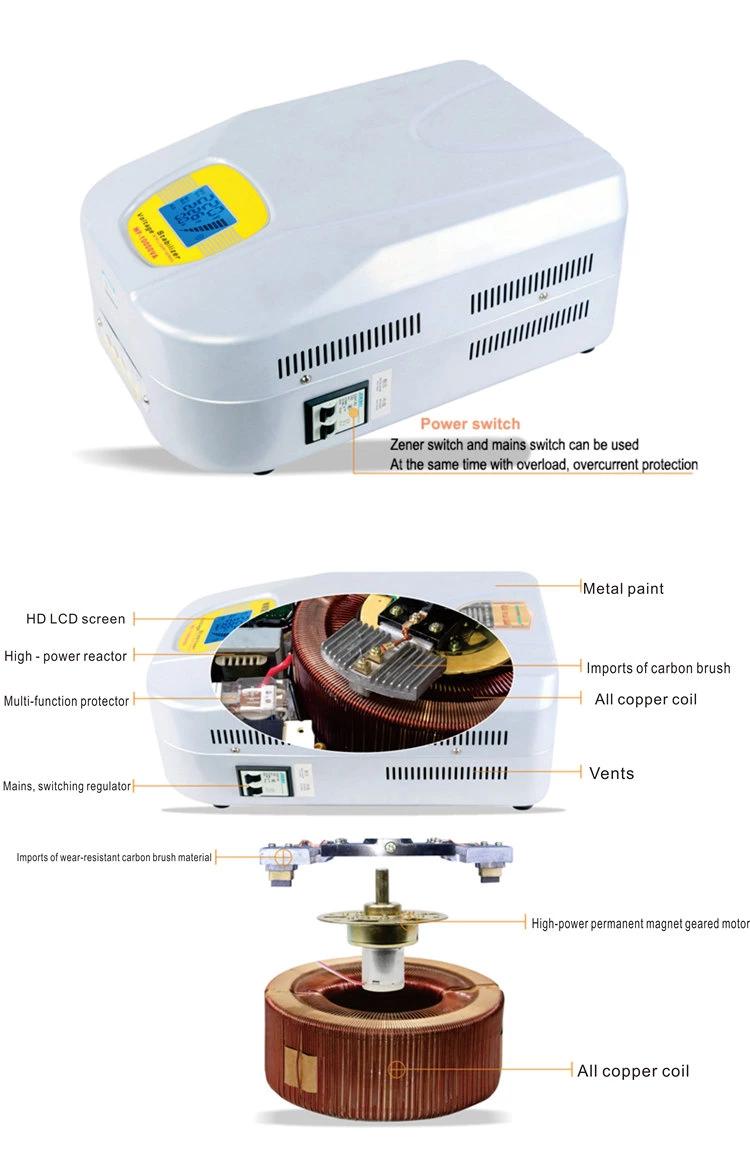

Features Description With overvoltage protection, undervoltage protection, temperature control and overload protection and other functions, wide input voltage range, high precision output voltage, PLC single-chip control module, the core components of reliable quality.



Ultra-low voltage AVR-10KVA (90V-250V)
Input voltage 140V 150V 160V 180V or more 200V or more
With load power ≤5000W ≤6000W ≤7000W ≤8000W ≤10000W
Note: Regulator operating characteristics The lower the input voltage, the smaller the load power

Our Services:

1.  Prompt reply: Any inquiry or questions would be replied within 24 hours.

2.  Quality Product: Manufacture company, each of the products is tested and calibrated.

3.  Hospitality: Offer smiling service and your visiting is highly welcomed

4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.



Trade Information:

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
