Three phase SSR

Motor Reversing 10-30V DC 3rd phase LED indication SSR Solid State Relay

Model
NKTRxxxxxZD
Brand
NQQK
Features:
● Long service life
● Control voltage 10-30V DC
● Switching on the 3rd phase
● There isn’t contact bounce and sparks during switching
● High insulation resistance between the control ci
Contact Now
Motor Reversing 10-30V DC 3rd phase LED indication SSR Solid State Relay
Motor Reversing 10-30V DC 3rd phase LED indication SSR Solid State Relay Motor Reversing 10-30V DC 3rd phase LED indication SSR Solid State Relay

Features:

● Long service life

● Control voltage 10-30V DC

● Switching on the 3rd phase

● There isn’t contact bounce and sparks during switching

● High insulation resistance between the control circuit and switched

● Built-in RC-circuit protection and simultaneous switching

● LED indication of the direction of rotation


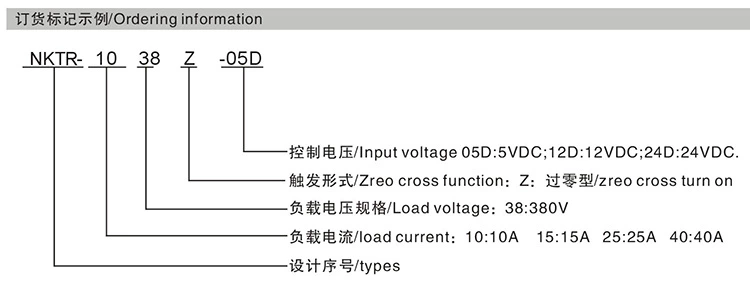

Models explanation:
NKDH......40......48.......ZD3
    1           2        3          4


1.

NKDH – single-phase solid state relay (10 – 120А)

NKDM – industrial class solid state relay (100 – 500А)

NKTH – three-phase solid state relay (10 – 120А)

NKTR – motor reversing solid state relay (10 – 40А)

2.
40 – load current 40А (10 – 500А)

3.
48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC

4.
ZD3 – control signal type(swithing mode)

VA – variable resistor 220-560кОм/2Вт (phase control)

LA – analog signal 4-20мА (phase control)

VD – analog signal 0-10V DC (phase control)

ZD – control voltage 10-30V DC (switching at zero crossing)

ZD3 – control voltage 3-32V DC (switching at zero crossing)

ZA2 – control voltagte 70-280V AC (switching at zero crossing)

DD3 – control voltage 3-32V DC (DC voltage switching)


Types:

Loda voltage  Control Signal  Rated current
10A 25A 40A 60A 80A
480V AC  10-30V DC NKTR1048ZD NKTR2548ZD NKTR4048ZD NKTR6048ZD NKTR8048ZD


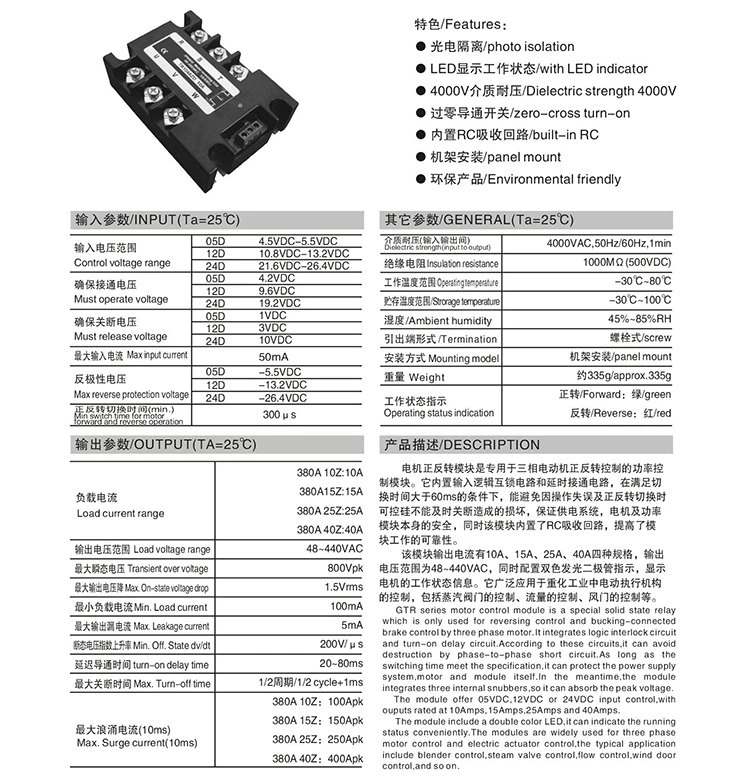

Technical specifications:

Model NKTRxxxxxZD
Load voltage 48-480V AC 47-63Hz
Peak voltage  1000V AC
Peak current 10A:100A,25A:250A,40A:400A within 10ms
Voltage drop  ≤1.6V AC
Leakage current(off-state) ≤10mA
Switching time 1/2 cycle
Control voltage 10-30V DC
Switching ON voltage >10V DC
Switching OFF voltage <8.5V DC
Current consumption in control circuit ≤30mA
LED status indication green-forward rotation                          red- reverse rotation
Dielectric strength 2500V AC (1min)
Insulation resistance 500MΩ with 500V DC
Operating temperature -30°c ~ +75°c
Relative Humidity ≤80%(non-condensing)
Dimensions 105*74*33mm
Mounting method Screws on
Weight ≤300g

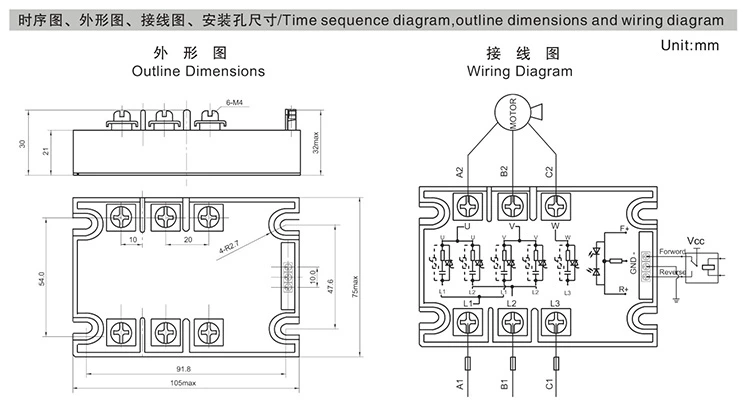

Outline dimensions & Wiring diagram:
