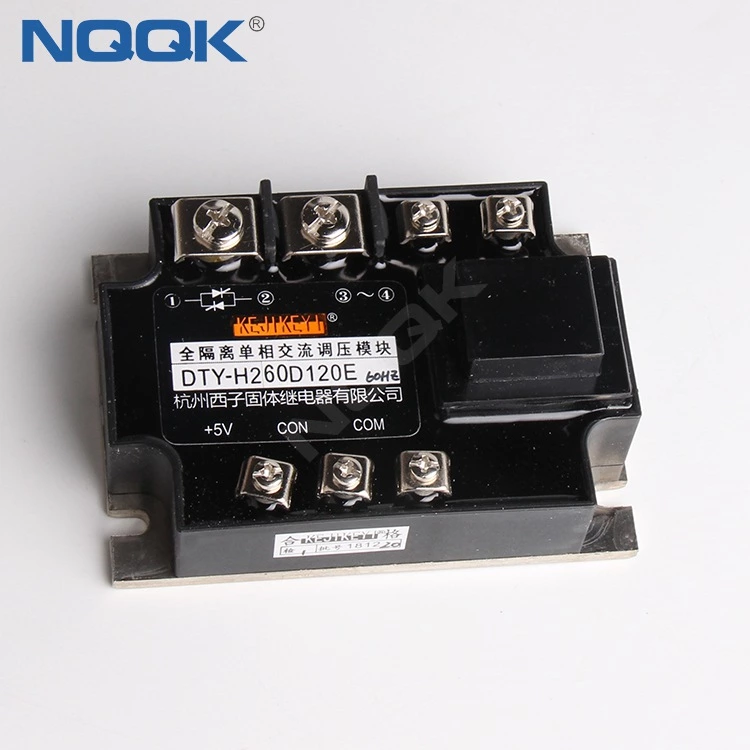

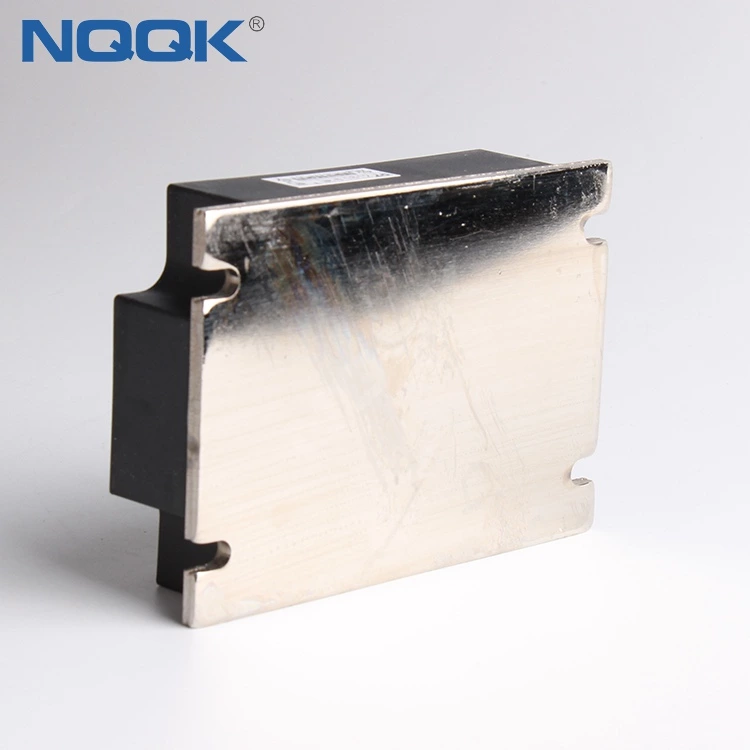

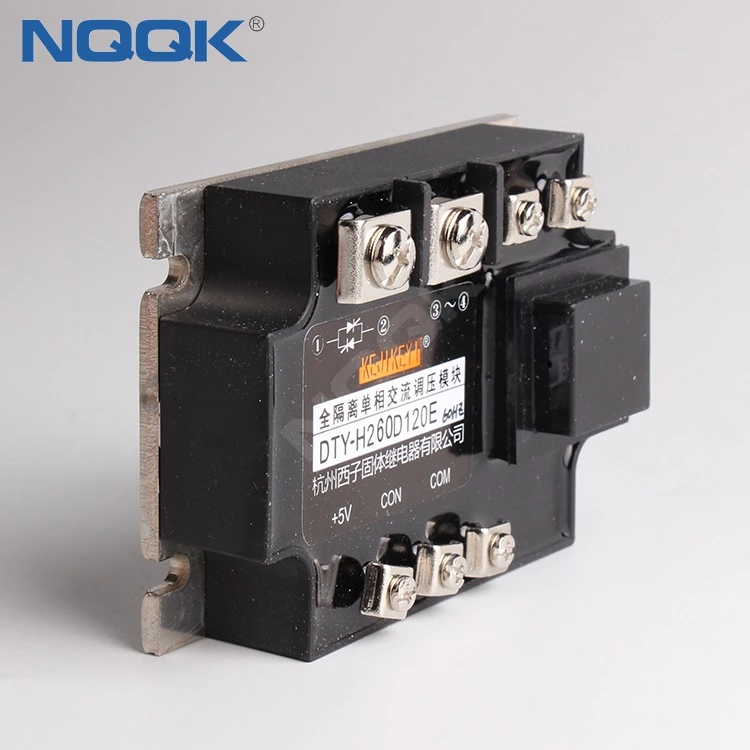

KEJIKEYI DTY H260D120E solid state relay Single-phase AC voltage regulator module

Brand
NQQK
The fully isolated single-phase AC voltage regulating module (hereinafter referred to as the single-phase voltage regulating module DTY)
is a synchronous transformer, a phase detecting circuit, a pha
Contact Now
KEJIKEYI DTY H260D120E solid state relay Single-phase AC voltage regulator module
KEJIKEYI DTY H260D120E solid state relay Single-phase AC voltage regulator module KEJIKEYI DTY H260D120E solid state relay Single-phase AC voltage regulator module KEJIKEYI DTY H260D120E solid state relay Single-phase AC voltage regulator module KEJIKEYI DTY H260D120E solid state relay Single-phase AC voltage regulator module

The fully isolated single-phase AC voltage regulating module (hereinafter referred to as the single-phase voltage regulating module DTY)

is a synchronous transformer, a phase detecting circuit, a phase shifting trigger circuit and an output thyristor. When the control voltage

is changed, the output can be changed. The trigger phase angle of the thyristor is the voltage regulation of the single-phase alternating

current. According to the output thyristor device, a common type of two-way thyristor, two unidirectional thyristor anti-parallel enhancement

type and one unidirectional thyristor half-wave type are classified into three types. According to the rated voltage of single-phase AC load,

it is divided into 220V and 380V. According to the different control signals, it is divided into four categories: E, F, G, H, etc.

The following is the specification model table: (Note: The current level is the internal thyristor of the module. Maximum current RMS)

DTY-H220D15E DTY-H380D15E
DTY-H220D35E DTY-H380D35E
DTY-H220D55E DTY-H380D55E
DTY-H220D75E DTY-H380D75E
DTY-H220D120E DTY-H380D120E
DTY-H220D150E DTY-H380D150E
DTY-H220D190E DTY-H380D190E
DTY-H220D240E DTY-H380D240E
DTY-H220D290E DTY-H380D290E
DTY-H220D350E DTY-H380D350E
DTY-220D10E DTY-380D10E
DTY-220D25E DTY-380D25E
DTY-220D40E DTY-380D40E
DTY-220D10XE DTY-380D10XE
DTY-220D25XE DTY-380D25XE
DTY-220D50XE DTY-380D50XE

KEJIKEYI ssr.JPGIMG_4459.JPGIMG_4461.JPGIMG_4462.JPGIMG_4458.JPGIMG_4464.JPG
