50A AC To AC 3 Three Phase SSR Solid State Relay

Brand
NQQK
Features:
Adjustable output voltage
Analog control signals: 4-20mA, 0-10V DC, variable resistor 220-560kOm
There isn’t contact bounce and sparks during switching
Removable finger proof cover avail
Contact Now
50A AC To AC 3 Three Phase SSR Solid State Relay
50A AC To AC 3 Three Phase SSR Solid State Relay 50A AC To AC 3 Three Phase SSR Solid State Relay 50A AC To AC 3 Three Phase SSR Solid State Relay 50A AC To AC 3 Three Phase SSR Solid State Relay 50A AC To AC 3 Three Phase SSR Solid State Relay 50A AC To AC 3 Three Phase SSR Solid State Relay

Features:
Adjustable output voltage
Analog control signals: 4-20mA, 0-10V DC, variable resistor 220-560kOm
There isn’t contact bounce and sparks during switching
Removable finger proof cover available
Low power consumption
Panel mount



Models explanation:

NKDH.......40.......48.......ZD3

    1            2         3         4

1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA– analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)

nqqk  three 3 phase solid state relay.jpg

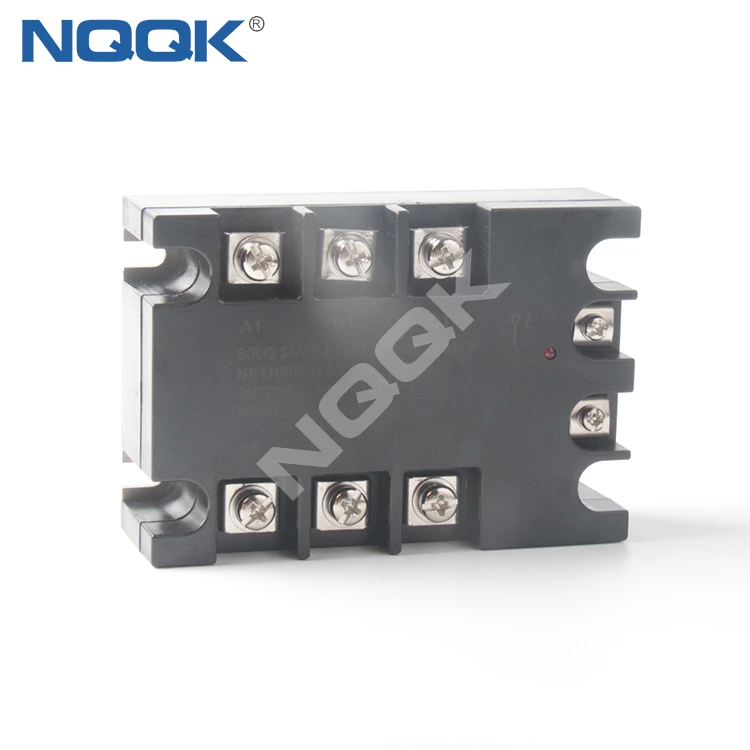

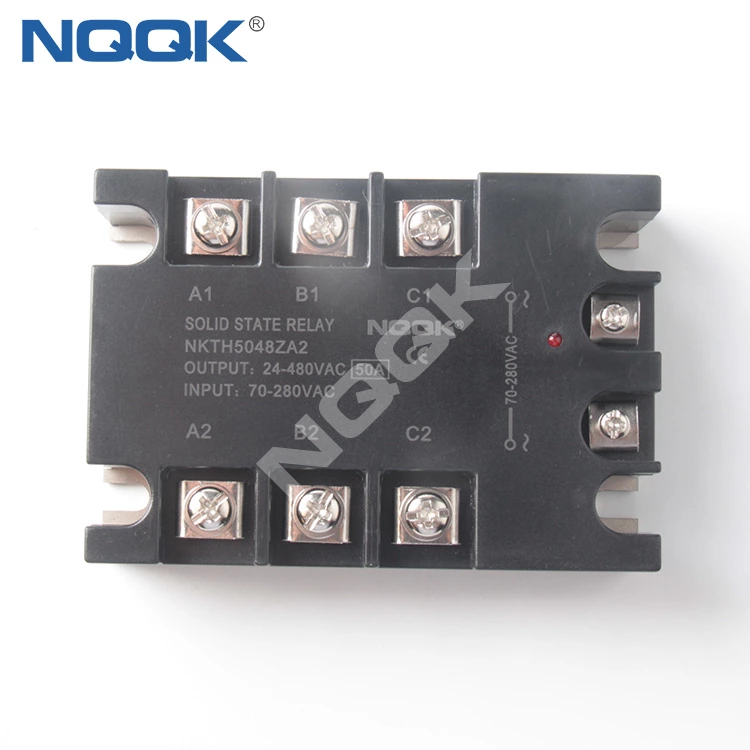

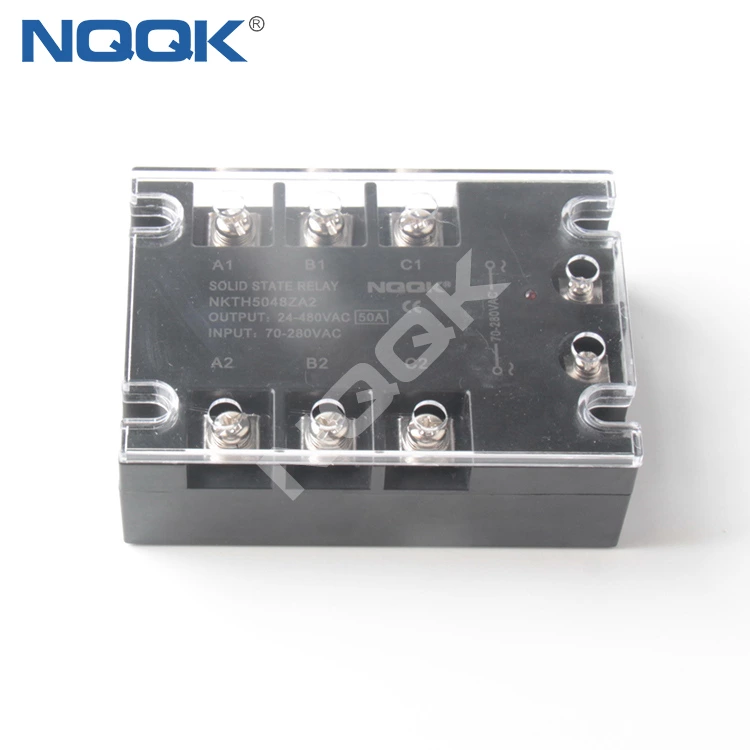

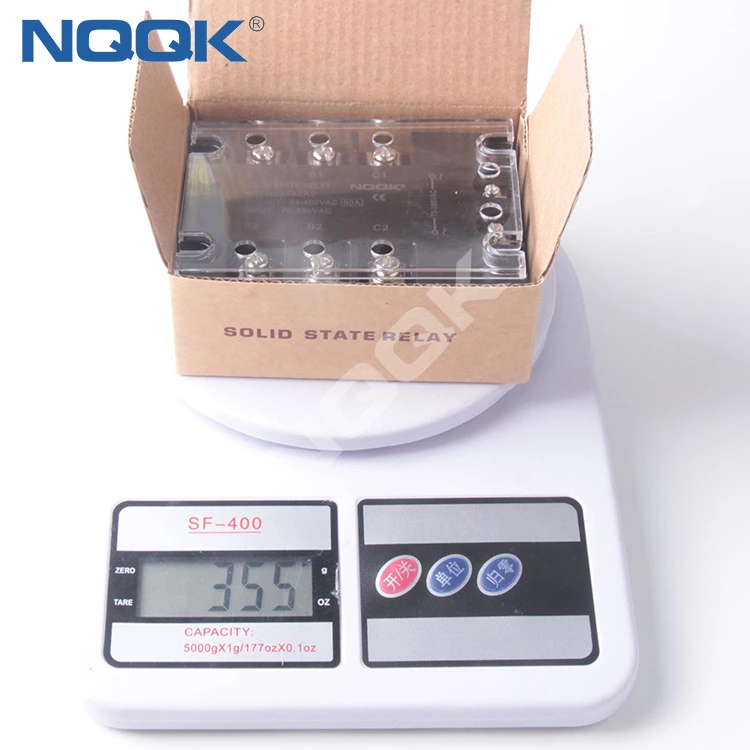

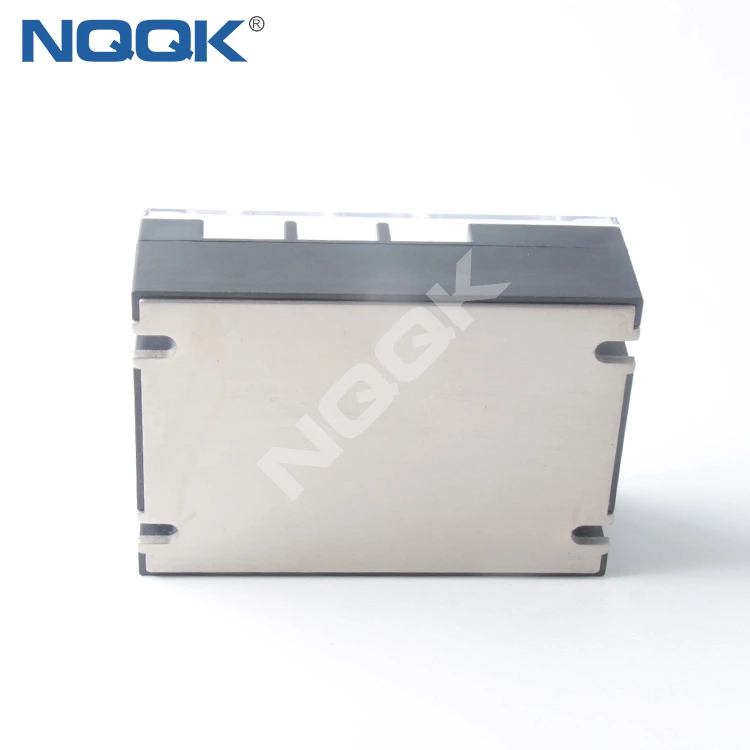

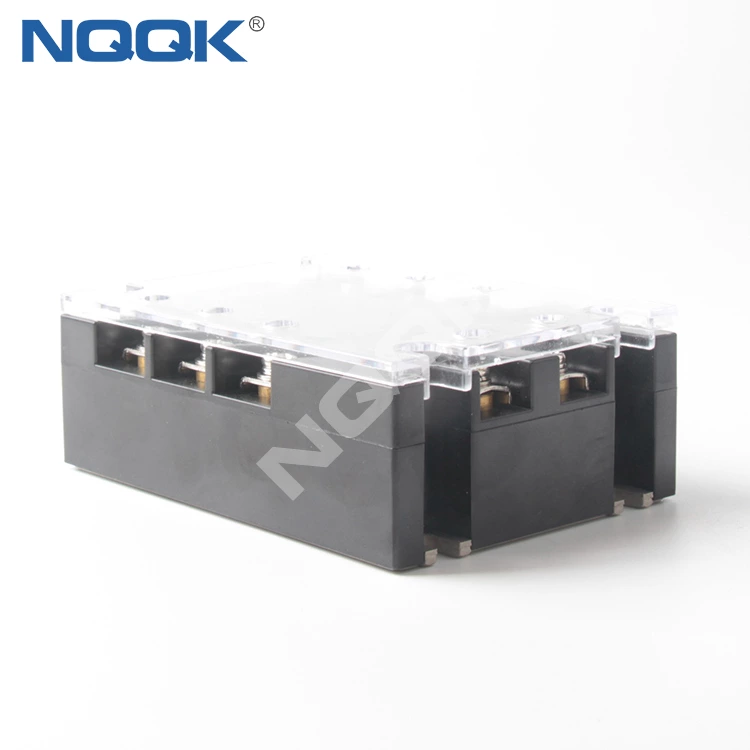

2D NKTH5048ZA2.JPG1D NKTH5048ZA2.JPG3D NKTH5048ZA2.JPG4D NKTH5048ZA2.JPG5D NKTH5048ZA2.JPG6D NKTH5048ZA2.JPG
