ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating

Model
ZR 011
Brand
NQQK
NO and NC in one casing
separate adjustable temperature
High switching capacity
Terminals easily accessible
Clip fixing

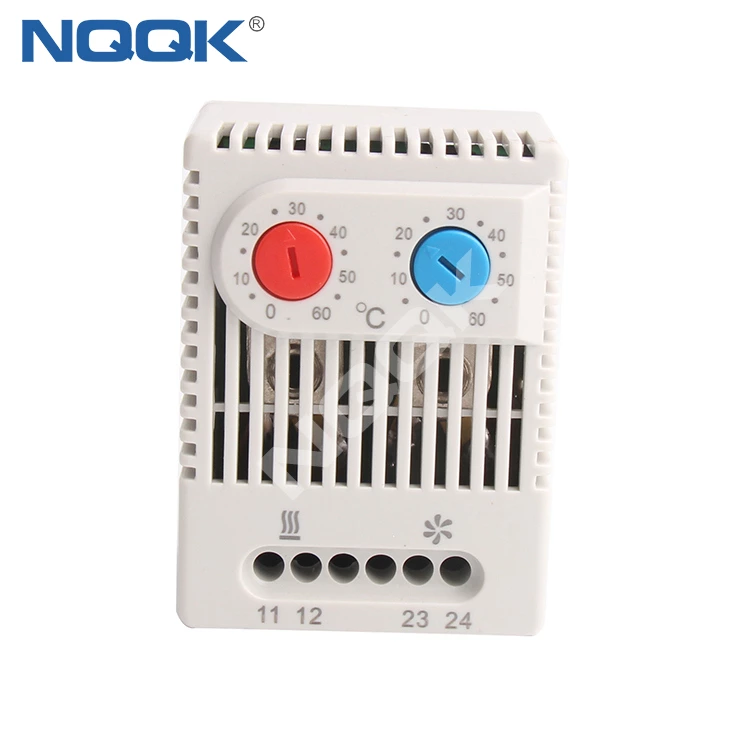

Two thermostats in one casing:
Thermostat(contact breaker,normally closed)
Contact Now
ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating
ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating ZR 011 Clip fixing NO and NC Dual Thermostat Temperature thermostat controller for regulating
  1. NO and NC in one casing
  2. separate adjustable temperature
  3. High switching capacity
  4. Terminals easily accessible
  5. Clip fixing



Two thermostats in one casing:

Thermostat(contact breaker,normally closed)for regulating heaters

Thermostat(contact make r,normally open)for regulating filter fans and heat exchange rs or
switching signal devices when temperatu re limit has been exceeded

Heaters and cooling equipment can be switched independently from each other with
a temperatu re offset as opposed to the usuaI change-over contacts



Technical Data:

Switch temperature difference 7K(±4k tolerance)
sensor element termostatic bimetal
Contact type snap-action contact
Contact resistance <10m
service life >10000cycles

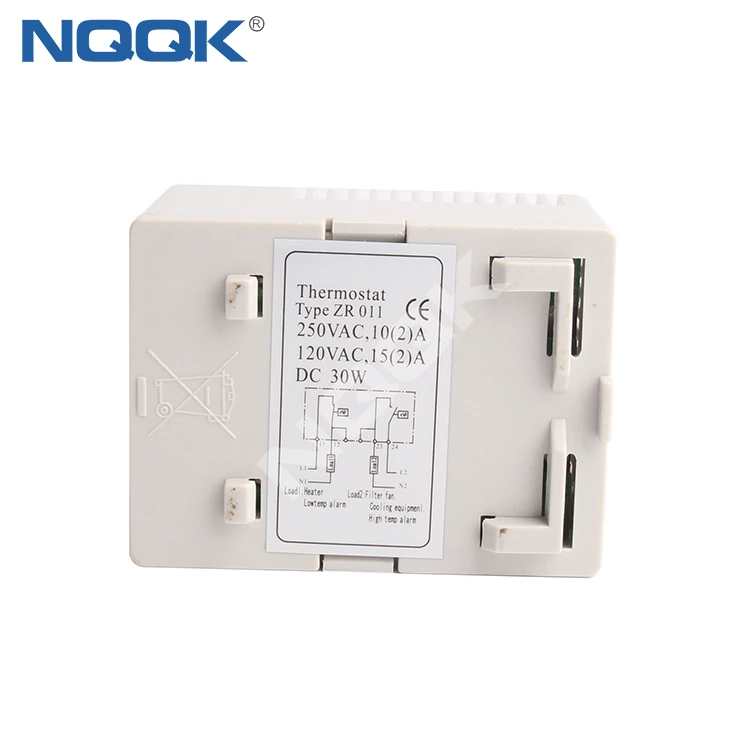

max switching capacity 250VAC,10(2)A
120VAC,15(2)A
DC30W
EMC acc.to en55014-1-2 EN61000-3-2 EN61000-3-3
connection 4-pole terminal for2.5mm2 RIgid wire 2.5mm2 standed wire(with wire end ferrule)2.5mm2
mounting clip for 35mm DIN rail EN50022
casing plastic according to UL94-V-0 light grey
Dimension 67x50x46mm
Weight approx 90g
operating/storage temprature -45 to +80°C (-49 to +176F)
fitting position vertical
Protectiion type IP20



Art. No Seting range Seting range
01172.0-00 contact breaker, normally closed 0 to +60 °C contact maker, normally open 0 to +60 °C
01172.0-01 contact breaker, normally closed -32 to +140°F contact maker, normally open -32 to +140°F
01175.0-00 contact breaker, normally closed -10 to +50 °C contact maker, normally open -20 to +80 °C
01175.0-01 contact breaker, normally closed -14 to +122°F contact maker, normally open -68 to +176°F
01176.0-00* contact maker, normally open 0 to +60 °C contact maker, normally open 0 to +60 °C
01176.0-01* contact maker, normally open -32 to +140°F contact maker, normally open -32 to +140°F
