SM 010 (24VDC + 48VDC) Electronic Relay Thermostats

High DC switching capacityRelay use for industry Variety of applianceRelay use for industry Compact designRelay use for industry Simple connection Clip fixing Electronic relay for switching DC a
Brand
NQQK

High DC switching capacityRelay use for industry

Variety of applianceRelay use for industry

Compact designRelay use for industry

Simple connection

Clip fixing

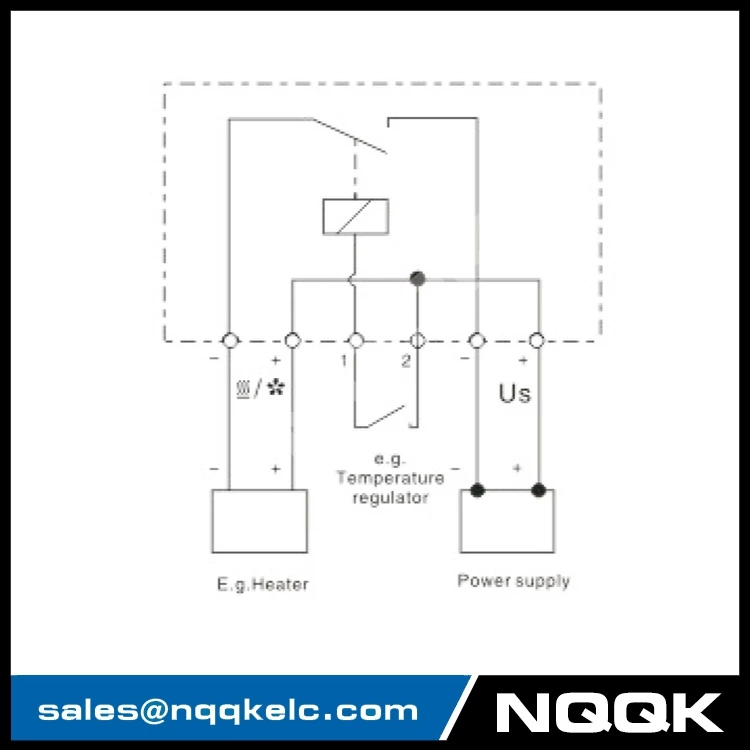

Electronic relay for switching DC appliances with high switching capacity .A seperate conventional
switch contact is used as controller (e.g. temperature regulator ,humidity regulator).The electronic relay
is available in 24VDC and 48VDC versions.


Technical Data:

 Contact type contact maker ,nomally open (relay/MOSFET)
 Contact resistance  <10mΩ
 Service life  >100000 cycles
 EMC  acc. to EN 55014-1-2,EN 61000-3-2,EN61000-3-3
 Connection  6-pole terminal ,clamping torque 0.5Nm max.:rigid wire 2.5mm⊃2;
 Mounting  clip for 35mm DIN rail ,EN60715 or for exit filter EF 118 series
 Casing  plastic according to UL94v-0,light grey

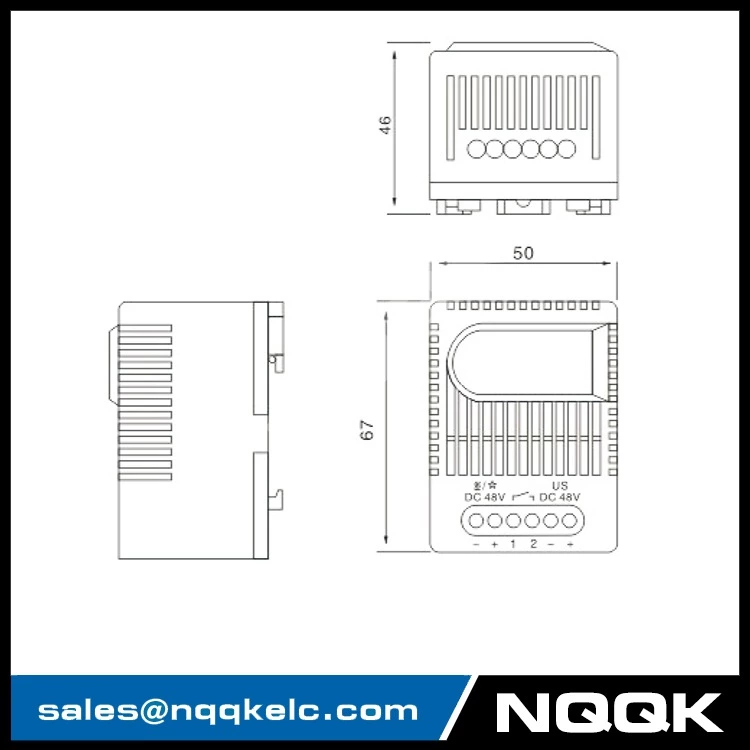

 Dimensions  67*50*46mm
 Weight  approx.85g
 Fitting position  variable
 Operating / Storage temperature  -20 to +80°C(-4 to +176°F)
 Protection type  IP20



 Art.No.  Operating voltage Max.Switching capacity
 01001.0-00  24VDC(20-28-VDC)  28VDC 16A
 01000.0-00  48VDC(38-56VDC)  56VDC 16A
