SK3110 Series DC 30W Electronic Thermostat

Inner temperature controller for switchgear cabinet SK3110.000

Especially used for controlling fan filter, heater and exchanger, also could be monitoring
the electric cabinetinner temperature when working as signal arcuser.

Technical Data:

Make bimetal sensor as heat sensitivity set to feedback of heat.

Contact point scheme: single switch over contact point as instant switch component

allowed load of contact point

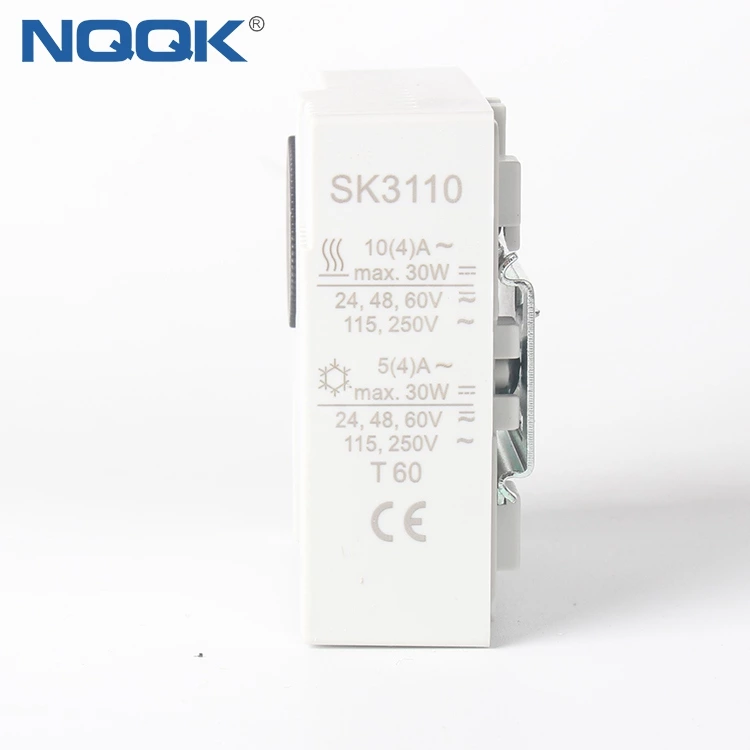

K L 5-3 AC10(4)A

DC=30W KL5-4(Cooling)

AC5(4)DA DC=30W

(D)=sensitivity load at cos Φ=0.6

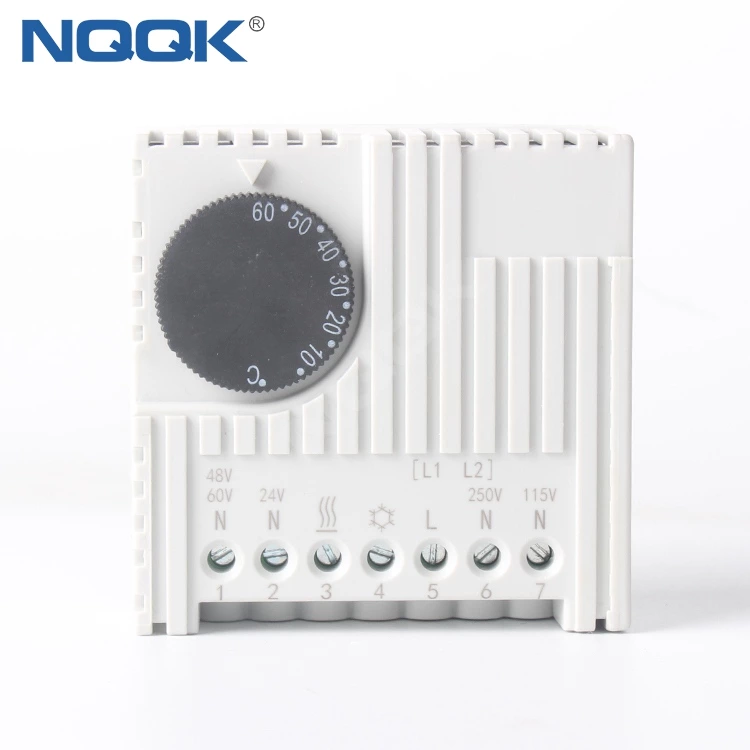

Adjusting range:-20°C to +60°C

Weight:105 gappr

Size :70×70×33.5mm

Switch discrepancy"1K±0.8K

Voltage scope is wide , any type could be used from 24V to 230V

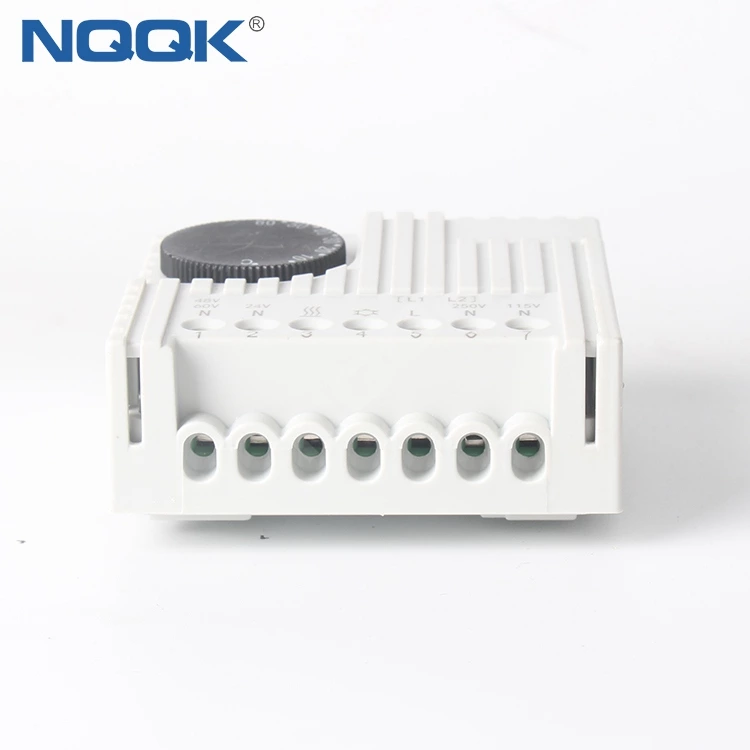

Time-saving connection , terminal block could be installed with screw from outside

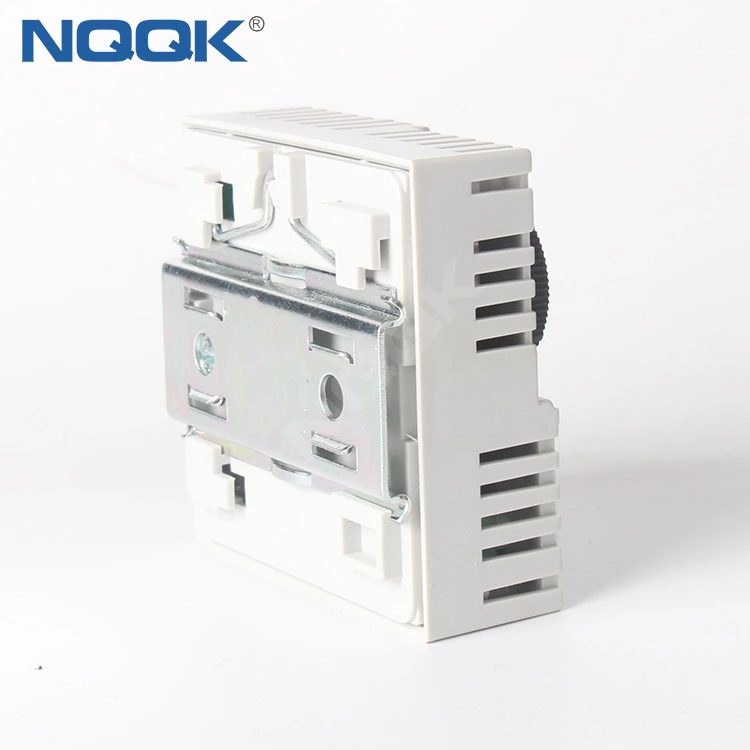

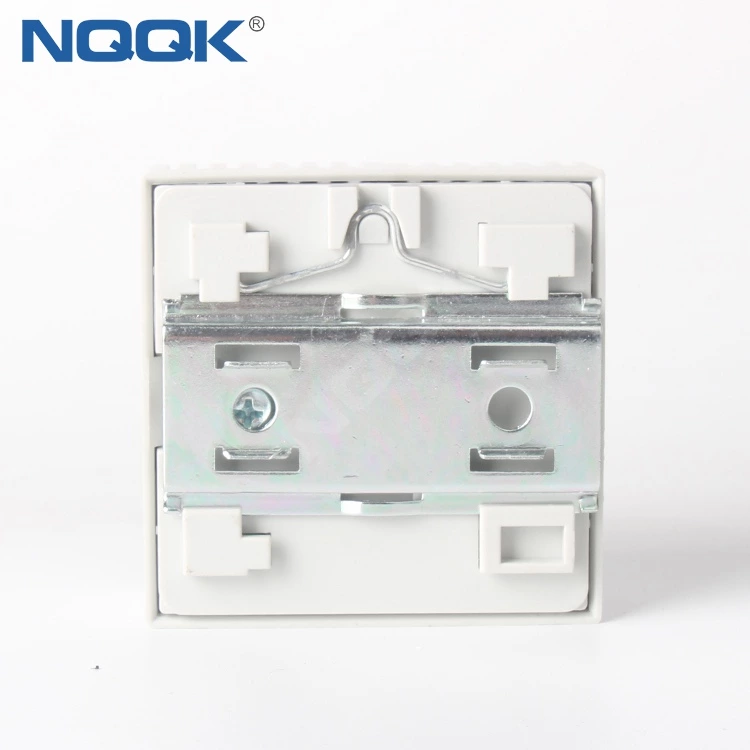

Easy installation ,could be installed to 35mm din rail vertically or horizontally.according

to EN50022,it could be clipped to NS/35-ES cabinet profile with its accessory adapter.
