Thermostat & Heater

SG-2000 High Performance Air Conditioner adjustable Mechanical Room Thermostat

Model
SG-2000
Brand
NQQK
Application:
1. For the control of warm-water(floor) heating system
2. Control direct eletric heating system
3. Used in commercial buildings, residential buildings, light in dustrial buildings
4.
Contact Now

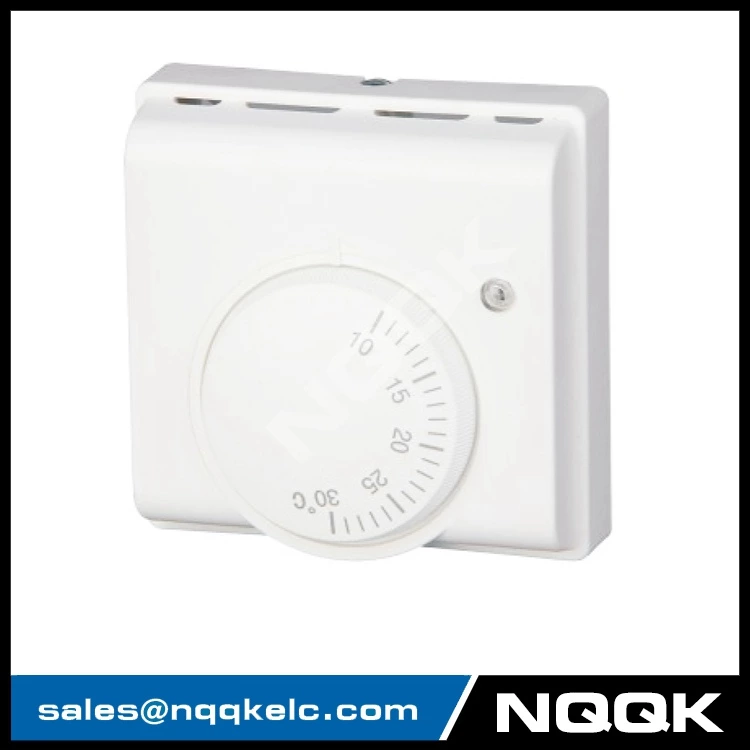

SG-2000 High Performance Air Conditioner adjustable Mechanical Room Thermostat

Application:

1. For the control of warm-water(floor) heating system

2. Control direct eletric heating system

3. Used in commercial buildings, residential buildings, light in dustrial buildings

4. Widely used in different area


Introduction:

1.  Used for 2 position control with on/off output

2.  Control the temperature by means of an NTC sensor

3.  Setting Range 4°C ~ 45°C

4.  Ambient Temperature -5°C ~ 50°C

Timesaving connection, terminal block could be installed with screw from outside

6.  Easy Installation, could be installed to 35mm din rail vertically or horizontally according to EN50022,
it could be clipped to NS/35-ES cabinet profile with its accessory adapter.


Technical Data:

Application: Control of central air conditioner or heating appliance for temperature
Temperature control range: 10°C~30°C
Work voltage:  220V~/50Hz
Max load:  10A
Sensor type:  gas filled sylphon with on/off, without LED indicator for power
