Thermostat & Heater

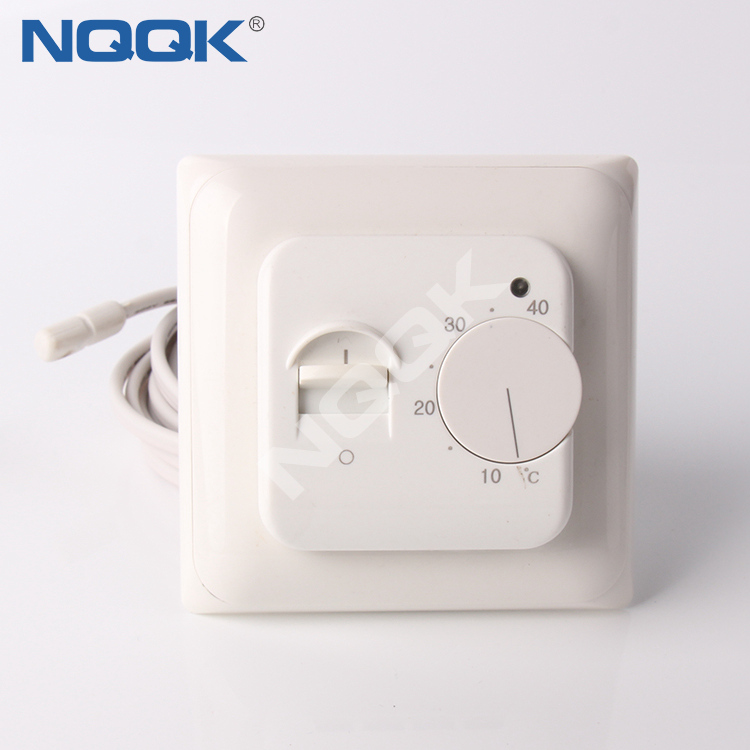

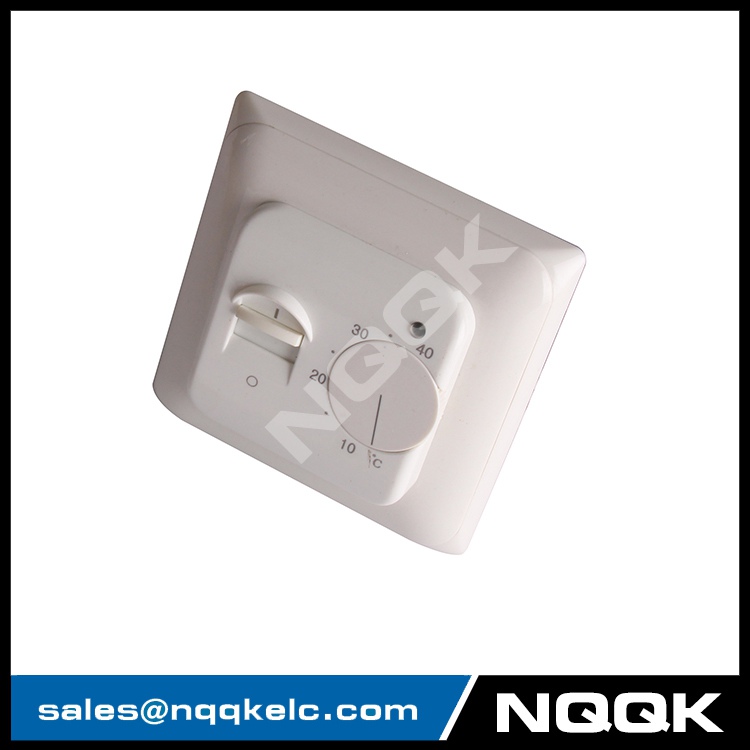

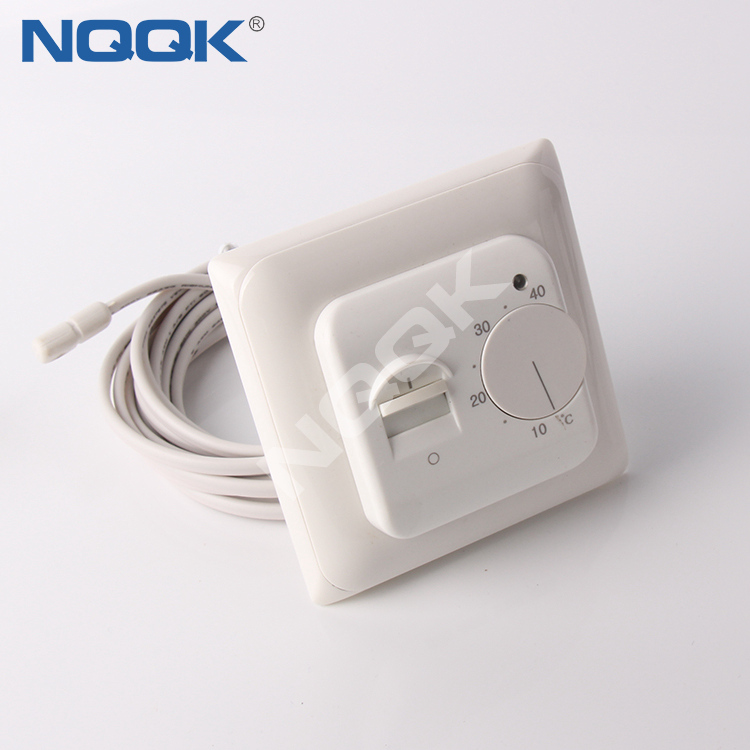

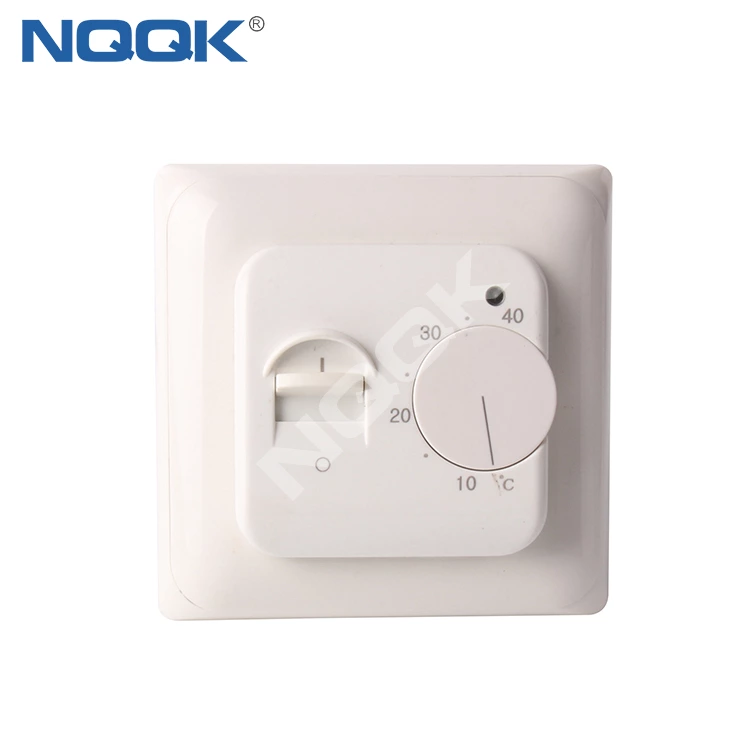

RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox

Model
RTC70
Brand
NQQK
Application:
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
Contact Now
RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox
RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox RTC70 3A 16A LED sensor electronic heating thermostat for mounting wallbox

The RTC70.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.

The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.


Technical Data:

Voltage  AC230V
 Power consumption  5W
 Setting range  4°C~45°C
 Switching differential  ±0.5k
 Ambient temperature  -5°C~50°C
 Protective housing  IP20
 housing material  Self-exting uishing PC

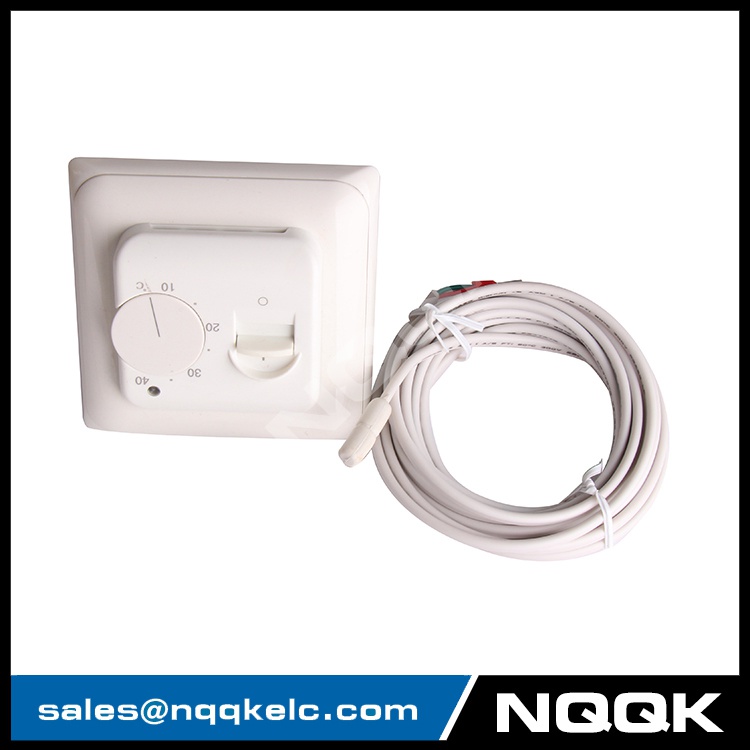

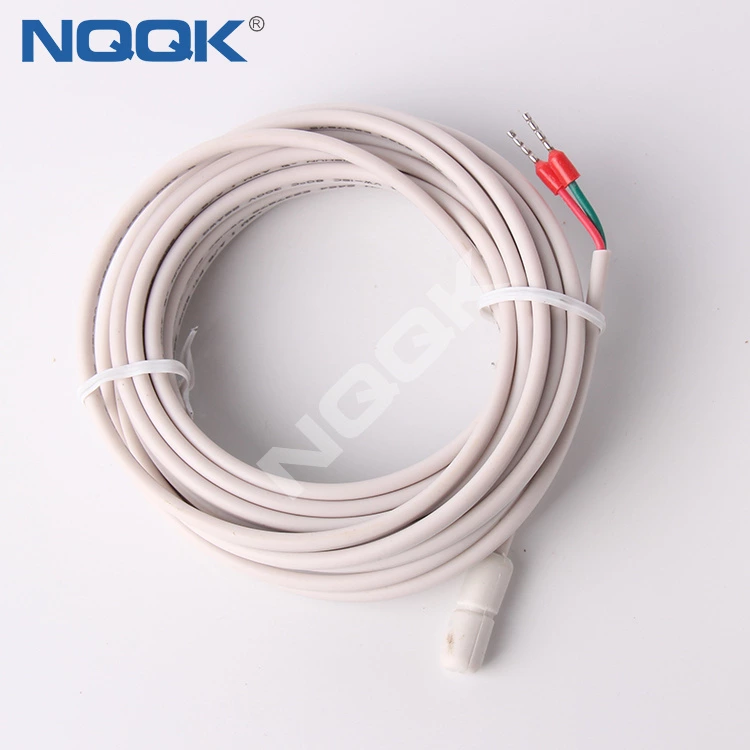

 Floor sensor  Rubber-thermoplastic NTC sensor
 The external sensor  Cable length is 3m


Selection table:

Model No. Fan control Sensor Temperature limitation function Setback function Loading (PCS/Carton)
SG6000.13 3A Built-in sensor No No 64
SG6000.16 16A Built-in sensor No No 64
SG6000.26 16A Floor   sensor No  No 64
SG6000.33 3A Built-in sensor NO NO 64
