KTO 011 / KTS 011 small, compact thermostat

Model
KTO 011 / KTS 011
Brand
NQQK
Large setting range
Small size
Simple to mount
High switching performance

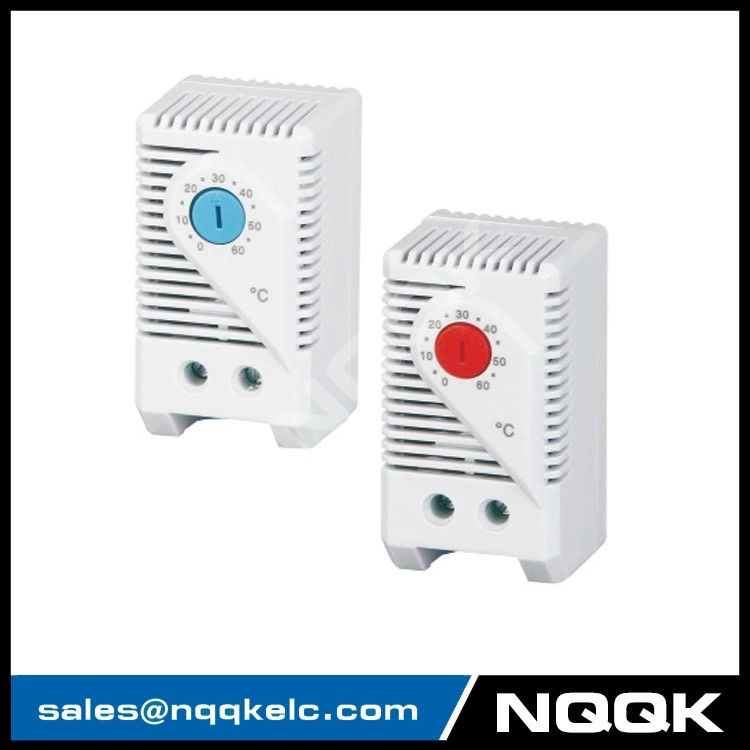

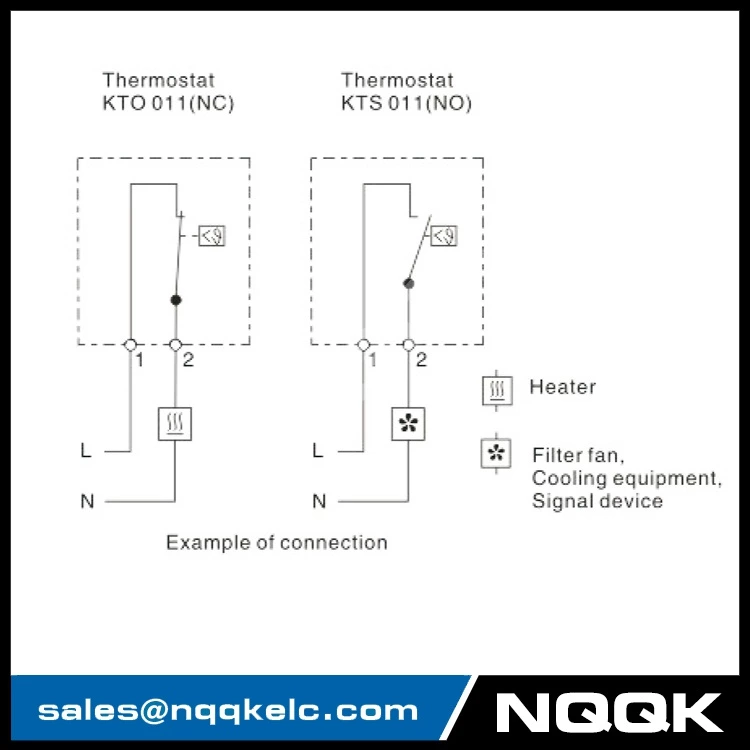

KTO 011:Thermostat (normally closed),contact breaker for regulating heaters.
KTS 011:Thermostat(normally open), contact m
Contact Now

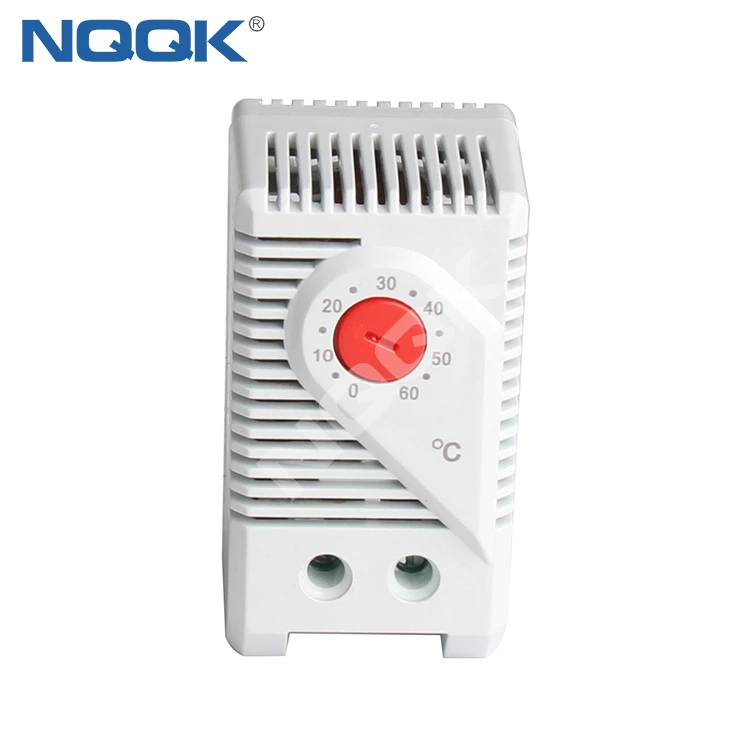

KTO 011 / KTS 011 small, compact thermostat
KTO 011 / KTS 011 small, compact thermostat KTO 011 / KTS 011 small, compact thermostat KTO 011 / KTS 011 small, compact thermostat KTO 011 / KTS 011 small, compact thermostat KTO 011 / KTS 011 small, compact thermostat KTO 011 / KTS 011 small, compact thermostat

Large setting range

Small size

Simple to mount

High switching performance

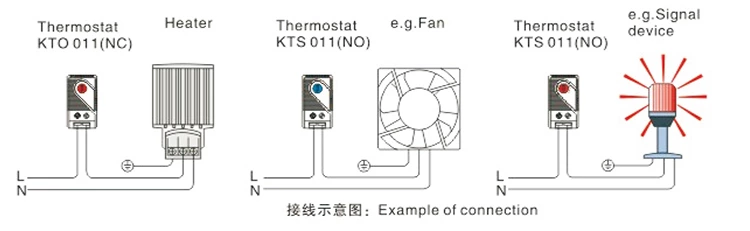

KTO 011:Thermostat (normally closed),contact breaker for regulating heaters.

KTS 011:Thermostat(normally open), contact maker for regulating of filter fans and heat exchangers or for
switching signal devised when temperature limit has been exceeded.


Technical Data:

Switch temperature difference 7K (± 4K tolerance)
Sensor element thermostatic bimetal
Contact type snap-action contact
Contact resistance <10mΩ
Service life > 100,000 cycles

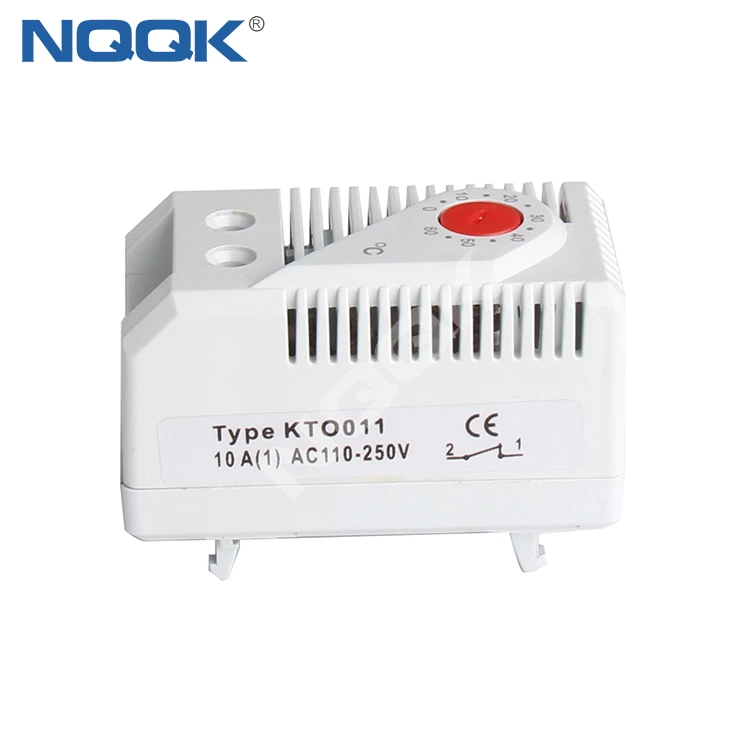

Max. Switching capacity 250VAC, 10 (2) A
120VAC, 15 (2) A
DC 30W
EMC acc.to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2; stranded wire  (with wire end ferrule) 1.5mm⊃2;

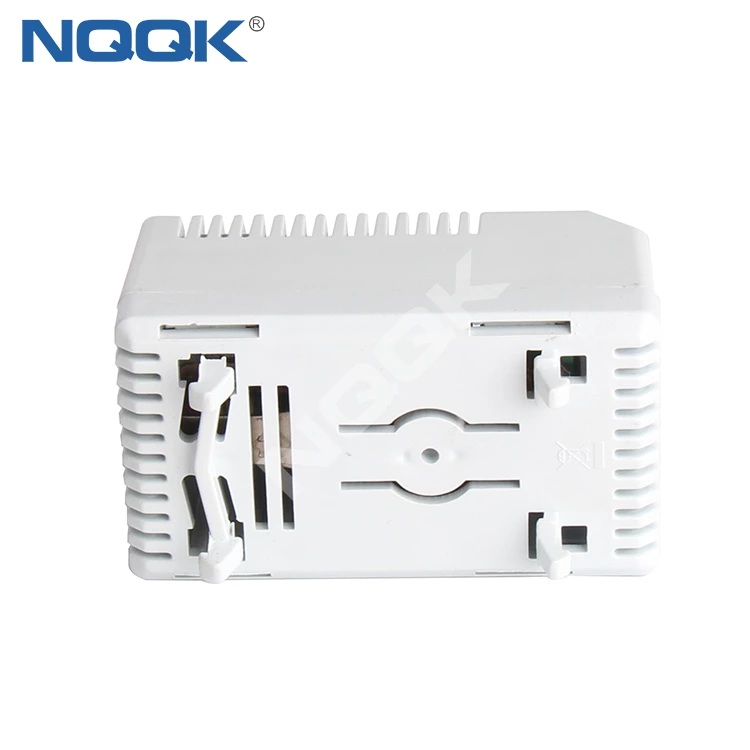

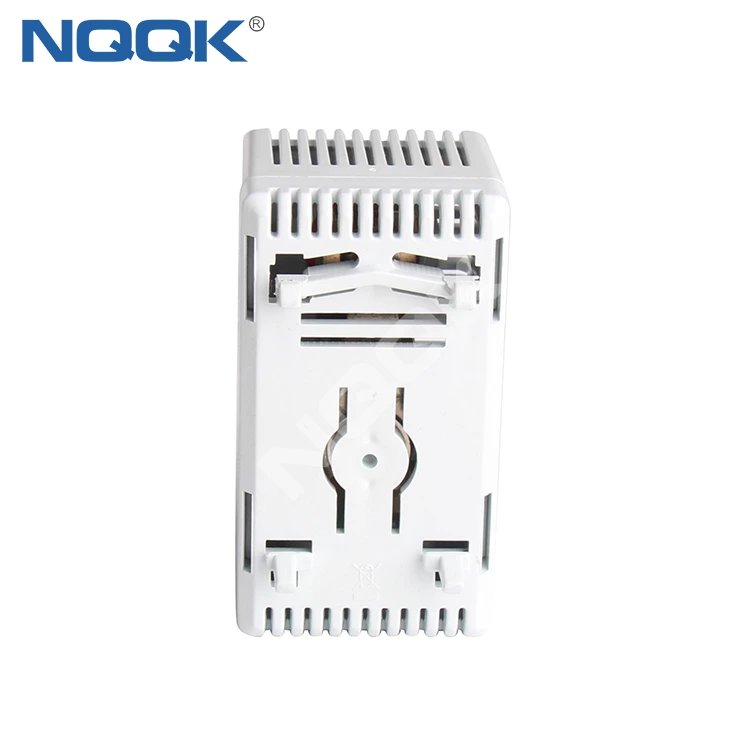

Mounting clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)
Casing plastic according to UL94 V-0, light grey

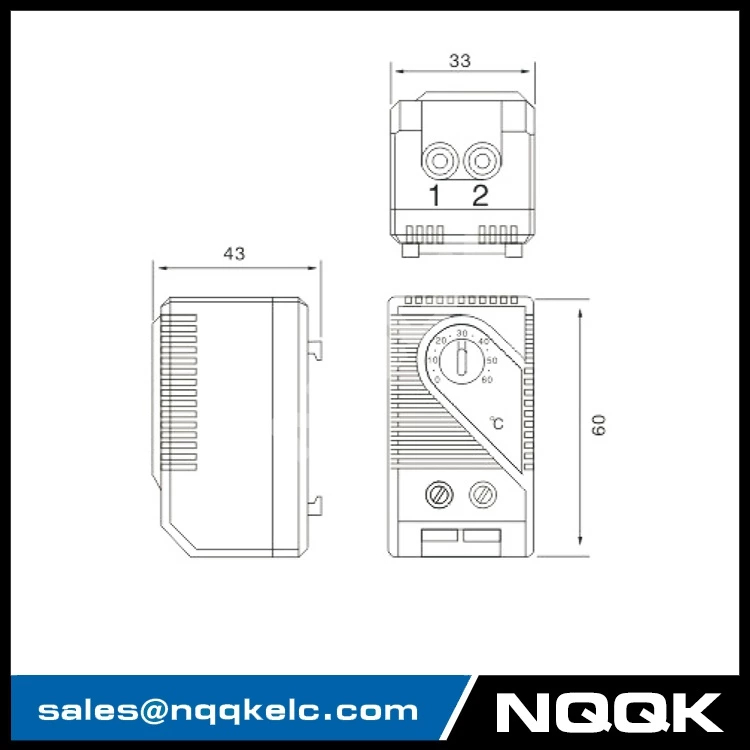

Dimensions 60 x 33 x 43mm
Weight approx. 40g
Fitting position variable
Operating / Storage temperature -20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type IP20



Setting range Art. No. Contact Breaker (NC) Art. No. Contact Maker (NO)
0 ~ +60°C 01140.0-00 01141.0-00
-10 ~ +50°C 01142.0-00 01143.0-00
+20 ~ +80°C 01159.0-00 01158.0-00
+32 ~ +140°C 01140.9-00 01141.9-00
+14 ~ +122°F 01142.9-00 01143.9-00
0 ~ +60°C 01146.9-00 01147.9-00
