HYT-60 series 60W Semiconductor outdoor heater , electrical heaters

electrical heaters
Brand
NQQK

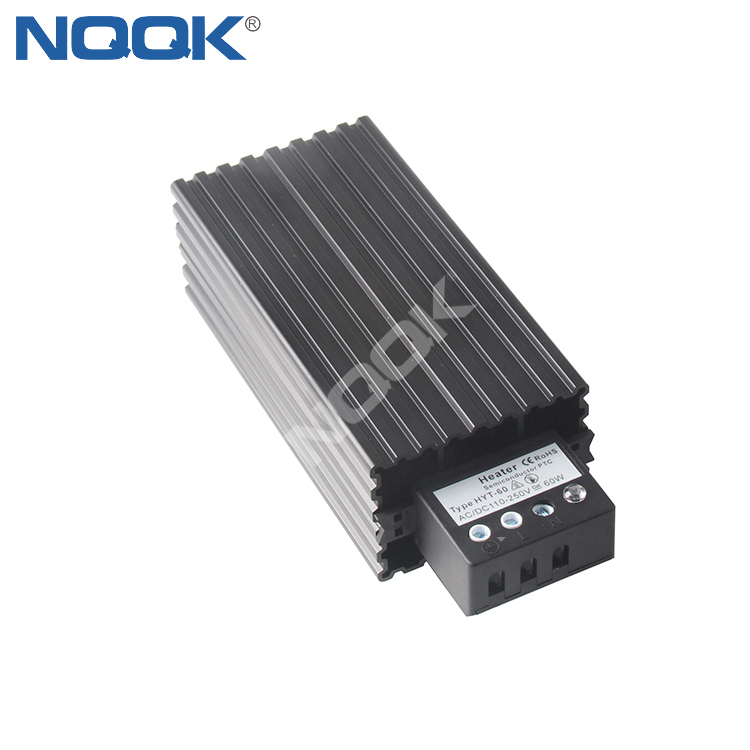

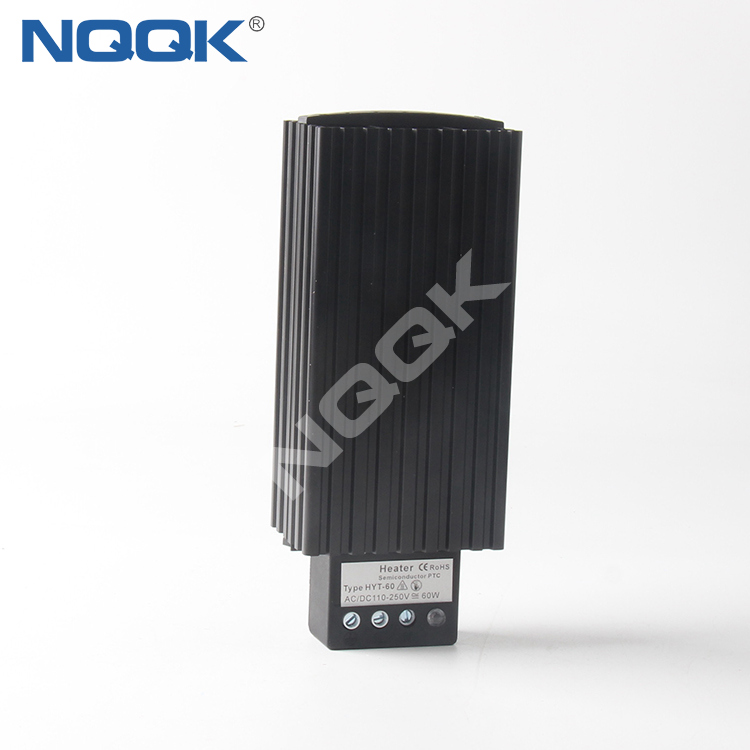

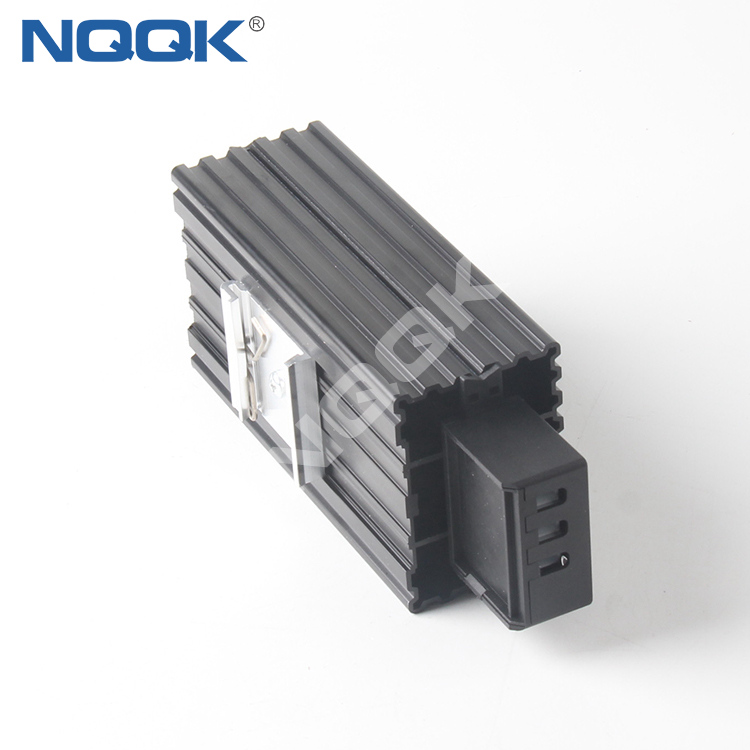

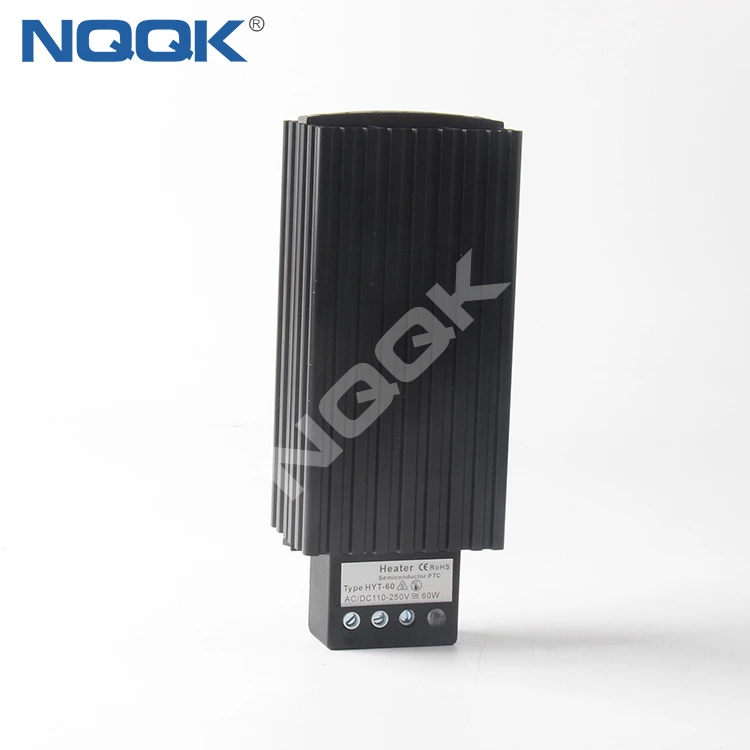

HYT-60  series 60W Semiconductor outdoor heater , electrical heaters

Product Description

 --------- Product Description ---------
Welcome to NQQK, Welcome to contact us

1.Pressure clamp connectors
2.Dynamic heating up
3.Wind voltage range
4.Temperature limiting
5.Energy saving
6.Clip fixing
7.Quick installation



These heaters are used in enclosures where damage from condensation must be prevented , or where the temperature may not fall below a minimum value . The aluminium profile heater body design has a chimney and distributes the heat evenly . The pressure clamp connectors save time and simpify installation .



Technical Parameters:



Operating voltage 120-240V AC/DC* (min. 110V, max. 265V)
Heating element PTC resistor, temperature limiting

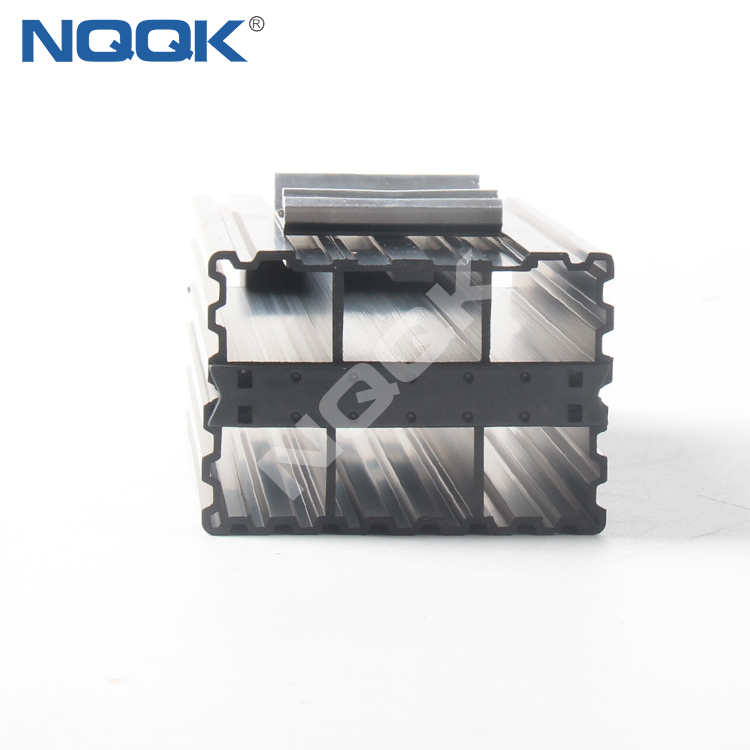

Heater body extruded aluminium profile, anodised

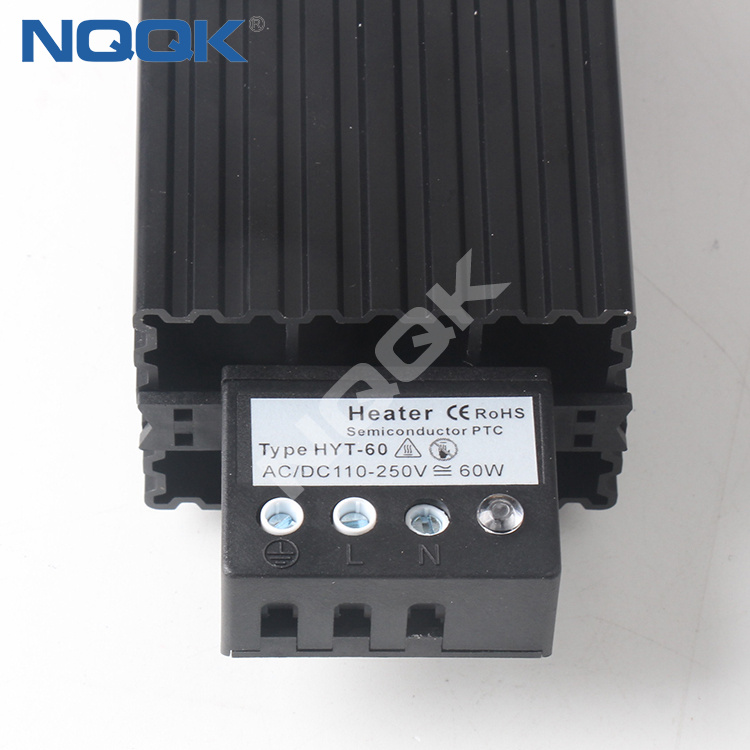

Connection 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casing plastic according to UL94 V-0, black

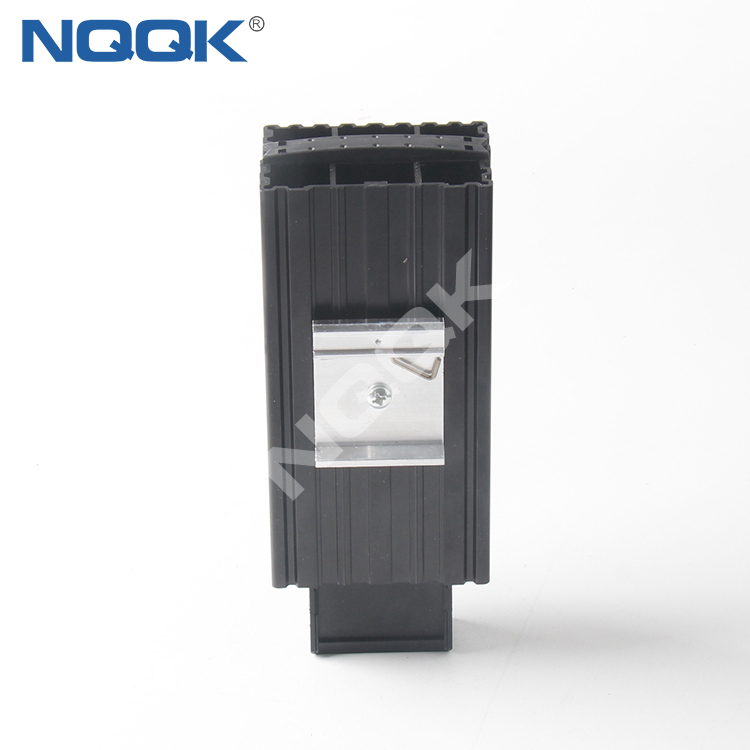

Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature -45 to +70 °C (-49 to +158 °F)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type/Protection class IP20 / I (earthed)
Approvals VDE + UL File No. E150057
Accessoires screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)



Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.



Art. No. Heating capacity Inrush current max. Pre-fuse T (time-delay) Length (L) Weight (approx.)
14000.0-00 15W 1.5A 1A 65mm 0.3kg
14001.0-00 30W 3.0A 2.5A 65mm 0.3kg
14003.0-00 45W 3.5A 2.5A 65mm 0.3kg
14005.0-00 60W 2.5A 2.5A 140mm 0.4kg
14006.0-00 75W 4.0A 4A 140mm 0.5kg
14007.0-00 100W 4.5A 4A 140mm 0.5kg
14008.0-00 150W 9.0A 6.3A 220mm 0.7kg



 Heater.JPGHYT-60 110-250V 60W.JPGIMG_2406.JPGIMG_2409.JPGIMG_2411.JPGIMG_2415.JPGIMG_2416.JPG



2 HG 140 series 15W to 150W Semiconductor outdoor heater, electrical heaters.jpg3 HG 140 series 15W to 150W Semiconductor outdoor heater, electrical heaters.jpg





RC 016 8W 10W, 13WSemiconductor outdoor heater,electrical heaters HG 140 series 15W, 30W, 45W, 60W, 75W, 100W, 150WSemiconductor outdoor heater,electrical heaters HG 140 series 15W, 30W, 45W, 60W, 75W, 100W, 150WSemiconductor outdoor heater,electrical heaters HG 140 series 15W, 30W, 45W, 60W, 75W, 100W, 150WSemiconductor outdoor heater,electrical heaters HG 140 series 15W, 30W, 45W, 60W, 75W, 100W, 150W Semiconductor outdoor heater,electrical heaters HG 140 series 15W, 30W, 45W, 60W, 75W, 100W, 150W 016 8W 10W, 13W Small Semiconductor Heater



FAQ

Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: 1-2 years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide

customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.



Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
