HV 031 / HVL 031 100W to 400W Space-saving Fan Heater
- Brand
- NQQK
Space-saving Fan Heater HV 031/HVL 031 fan forced electric wall heater
Compact
Flat design
Clip fixing
High air through-flow
Temperature safety cut-out
The compact high-performance fan heater prevents formation of condensation in control or switch
systems and provides an evenly distributed interior air temperature in enclosures. This fan heater
is available without fan (HV 031) as well as with fan (HVL 031).
Technical Data:
| HV 031 | heater without fan(fan mounting kid included |
| HVL 031 | Heater with fan |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Heater body | die-cast aluminium (glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm⊃2;, clamping torque 0.8Nm max. |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) |
| Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Approvals | UL File No. E187294 (VDE: 230V only: VDE) |
| Axial fan, ball bearing | airflow see table |
| service life 50 000h at 25°C (77°F) | |
| Connection (axial fan) | 2-pole screw connector 2.5mm⊃2; (L2/N2) |
*Important !Heater may only be operated together with fan. Dangerof overheating.
| Art. No. HV 031 230VAC, 50/60 Hz | Art. No. HV 031 120VAC, 50/60 Hz | Heating capacity | Dimensions | Weight (approx.) |
| 03100.0-00 | 03100.9-00 | 100W | 80 x 112 x 22mm | 0.4kg |
| 03101.0-00 | 03101.9-00 | 150W | 80 x 112 x 22mm | 0.4kg |
| 03110.0-00 | 03110.9-00 | 200W | 119 x 151 x 22mm | 0.5kg |
| 03111.0-00 | 03111.9-00 | 300W | 119 x 151 x 22mm | 0.5kg |
| 03112.0-00 | 03112.9-00 | 400W | 119 x 151 x 22mm | 0.5kg |

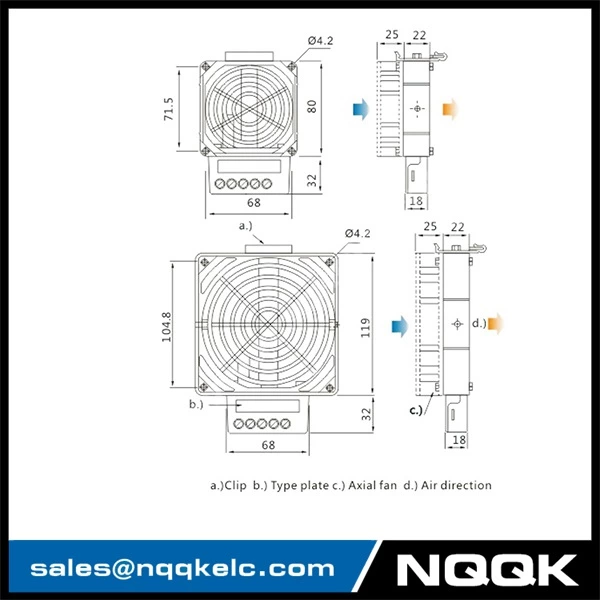

| Art. No. HV 031 230VAC, 50/60 Hz | Art. No. HV 031 120VAC, 50/60 Hz | Heating capacity | Airflow min., free flow | Dimensions | Weight (approx.) |
| 03102.0-00 | 03102.9-00 | 100W | 35m⊃3;/h | 80 x 112 x 47mm | 0.6kg |
| 03103.0-00 | 03103.9-00 | 150W | 35m⊃3;/h | 80 x 112 x 47mm | 0.6kg |
| 03113.0-00 | 03113.9-00 | 200W | 108m⊃3;/h | 119 x 151 x 47mm | 0.9kg |
| 03114.0-00 | 03114.9-00 | 300W | 108m⊃3;/h | 119 x 151 x 47mm | 0.9kg |
| 03115.0-00 | 03115.9-00 | 400W | 108m⊃3;/h | 119 x 151 x 47mm | 0.9kg |
