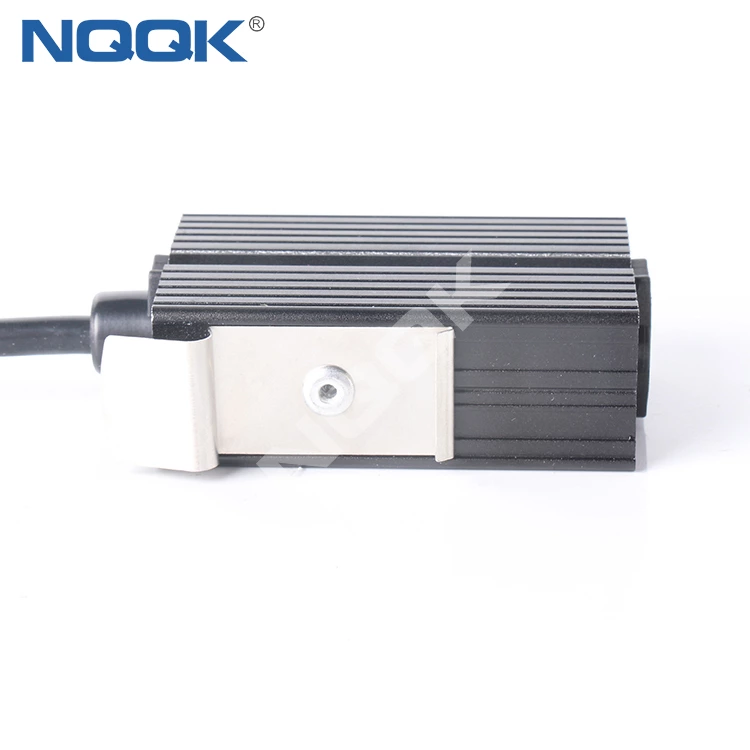

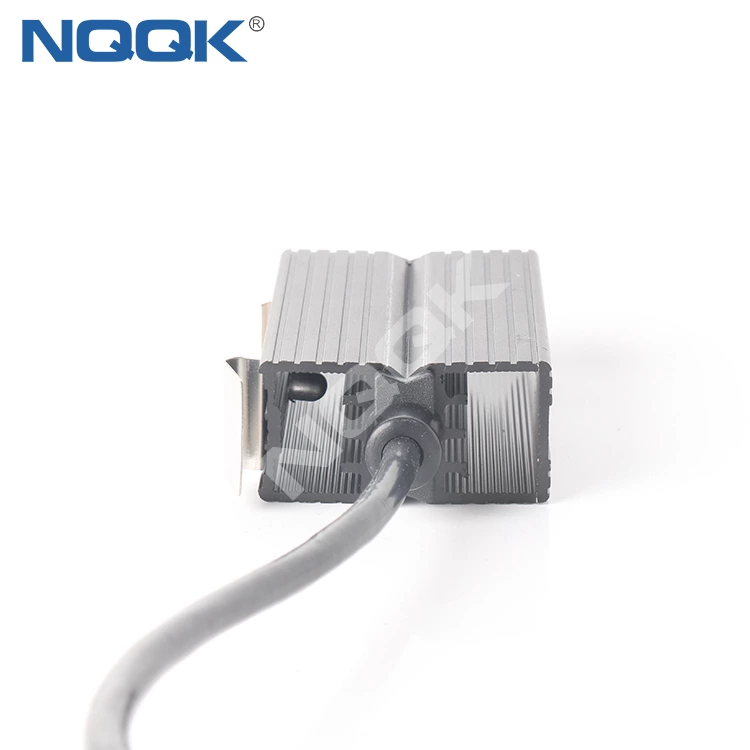

HGK 047 10W, 20W, 30W Small Semiconductor Heater
1.Dynamic heating up
2.Energy saving
3.Wide voltage range
4.Temperature limiting
5.Clip fixing
The heaters are used in enclosures where condensat
Contact Now
HGK 047 10W 20W 30W Small Semiconductor Heater
HGK 047 10W 20W 30W Small Semiconductor Heater HGK 047 10W 20W 30W Small Semiconductor Heater HGK 047 10W 20W 30W Small Semiconductor Heater HGK 047 10W 20W 30W Small Semiconductor Heater HGK 047 10W 20W 30W Small Semiconductor Heater HGK 047 10W 20W 30W Small Semiconductor Heater

HGK 047 10W, 20W, 30W Small Semiconductor Heater

1.Dynamic heating up

2.Energy saving

3.Wide voltage range

4.Temperature limiting

5.Clip fixing


The heaters are used in enclosures where condensation is to be prevented or the temperature may
not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.


Technical Data:

Heating element PTC resistor, self regulating and temperature limiting
Heater body extruded aluminium profile, anodised

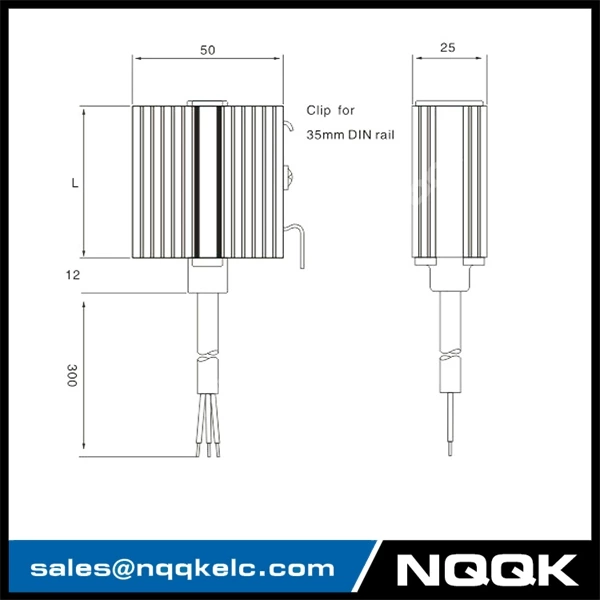

Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical
Operating/Storage temperature -20 to +70 °C (-4 to +158 °F)
Protection type/Protection class IP54 / I (earthed)
Accessoires screw fixing
Note other voltages on request

Art. No Operating voltage Heating capacity Inrush current max. Lenght(L) Weight(approx.) Connection
04700.0-00 120-240V AC/DC 10W 1.0A 50mm 0.1kg 3 x 0,5mm² x 300mm sheathed cable (silicone)
04701.0-00 120-240V AC/DC 20W 2.5A 60mm 0.2kg 3 x 0,5mm² x 300mm sheathed cable (silicone)
04702.0-00 120-240V AC/DC 30W 3.0A 70mm 0.2kg 3 x 0,5mm² x 300mm sheathed cable (silicone)
04700.9-00 110-120 V AC/DC 10W 1.0A 50mm 0.1kg 3 x AWG 20 x 300mm sheathed cable
04701.9-00 110-120 V AC/DC 20W 1.5A 70mm 0.2kg 3 x AWG 20 x 300mm sheathed cable
04702.9-00 110-120 V AC/DC 30W 1.5A 100mm 0.2kg 3 x AWG 20 x 300mm sheathed cable



1)at 20°C ( 68°F) ambient temperature

2)(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
