HG 140 HG140 series 15W to 150W Semiconductor outdoor heater, electrical heaters
- Brand
- NQQK
Semiconductor outdoor heater,electrical heaters HG 140 series 15W,30W, 45W, 60W, 75W, 100W, 150W
1.Pressure clamp connectors
2.Dynamic heating up
3.Wind voltage range
4.Temperature limiting
5.Energy saving
6.Clip fixing
7.Quick installation

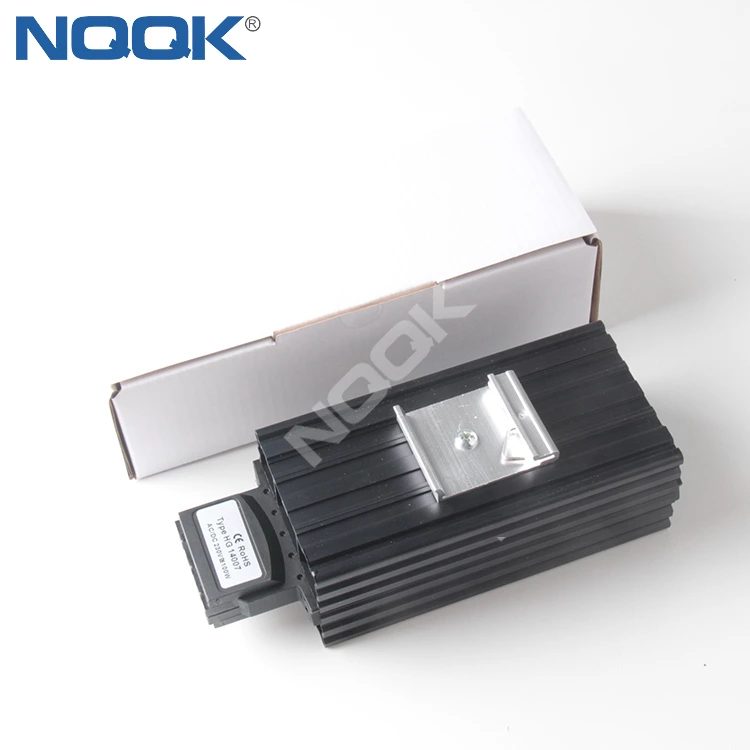

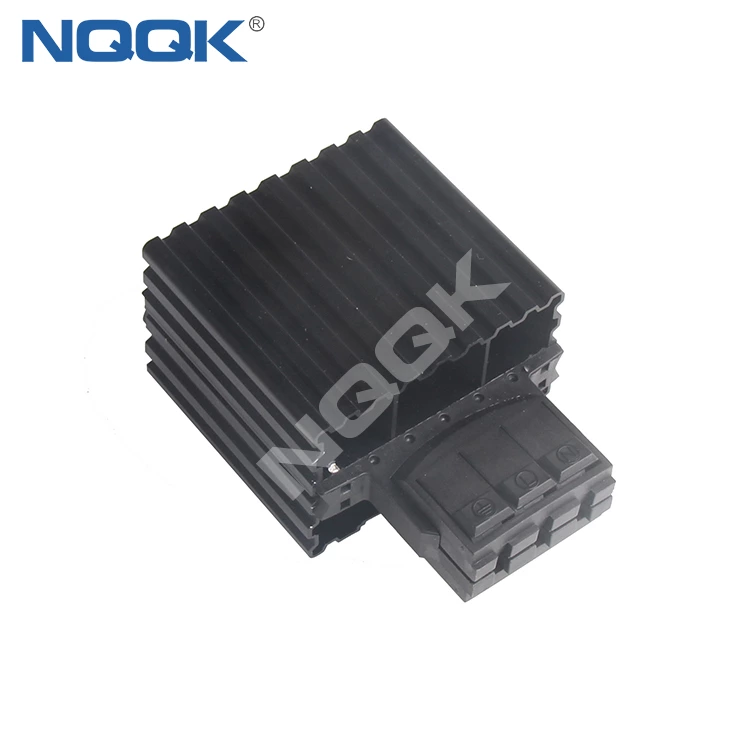

These heaters are used in enclosures where damage from condensation must be prevented , or where the
temperature may not fall below a minimum value . The aluminium profile heater body design has a chimney

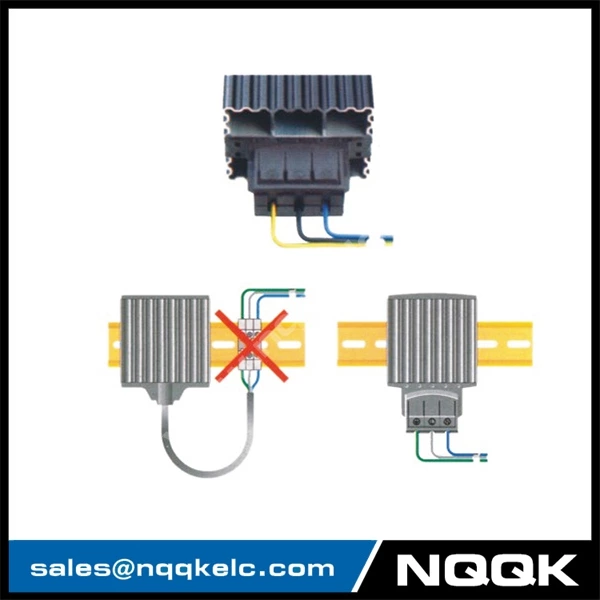

and distributes the heat evenly . The pressure clamp connectors save time and simpify installation .
Technical Data:
|
Operating voltage |
120-240V AC/DC* (min. 110V, max. 265V) |
| Heating element | PTC resistor, temperature limiting |
| Heater body | extruded aluminium profile, anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm² |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Approvals | VDE + UL File No. E150057 |
| Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

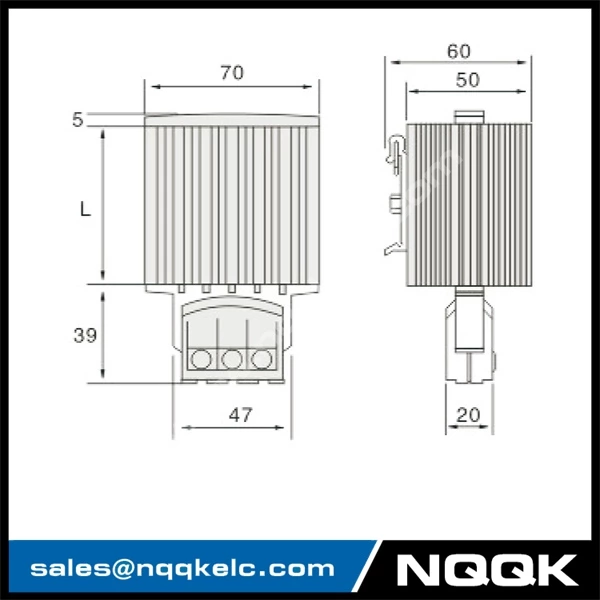

| Art. No. | Heating capacity | Inrush current max. | Pre-fuse T (time-delay) | Length (L) | Weight (approx.) |
| 14000.0-00 | 15W | 1.5A | 1A | 65mm | 0.3kg |
| 14001.0-00 | 30W | 3.0A | 2.5A | 65mm | 0.3kg |

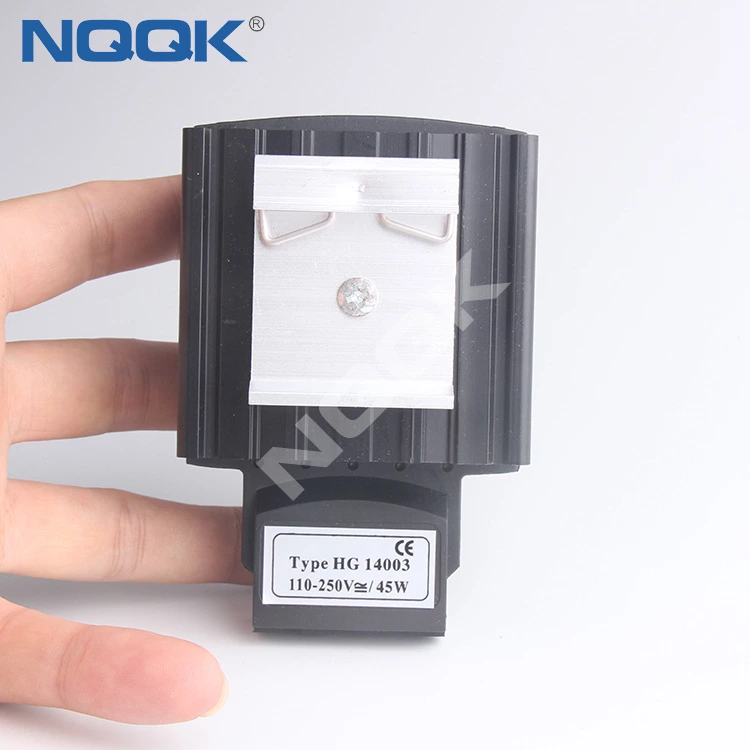

| 14003.0-00 | 45W | 3.5A | 2.5A | 65mm | 0.3kg |
| 14005.0-00 | 60W | 2.5A | 2.5A | 140mm | 0.4kg |
| 14006.0-00 | 75W | 4.0A | 4A | 140mm | 0.5kg |

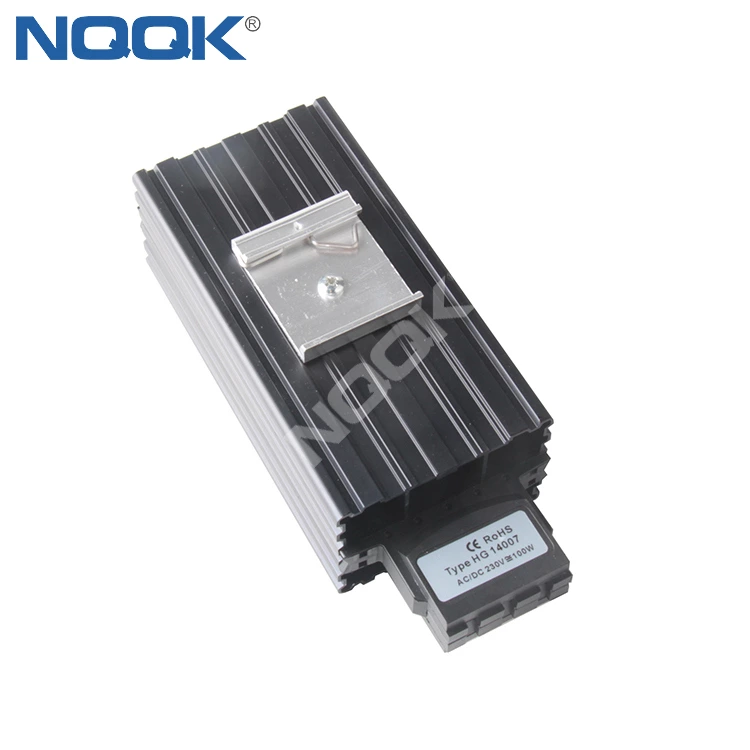

| 14007.0-00 | 100W | 4.5A | 4A | 140mm | 0.5kg |
| 14008.0-00 | 150W | 9.0A | 6.3A | 220mm | 0.7kg |
