Thermostat & Heater

FTO 011 / FTS 011 Tamperproof Thermostats (pre-set)

Model
FTO 011 / FTS 011
Brand
NQQK
Small size
Default temperature setting
Easy to install
High switching tolerance
Tamperprof(pre-set) Thermostat FTO 011
Contact breaker / NC (red casing ) for regulating heaters or for switc
Contact Now
FTO 011 / FTS 011 Tamperproof Thermostats (pre-set)
FTO 011 / FTS 011 Tamperproof Thermostats (pre-set) FTO 011 / FTS 011 Tamperproof Thermostats (pre-set)
  1. Small size
  2. Default temperature setting
  3. Easy to install
  4. High switching tolerance



Tamperprof(pre-set) Thermostat FTO 011

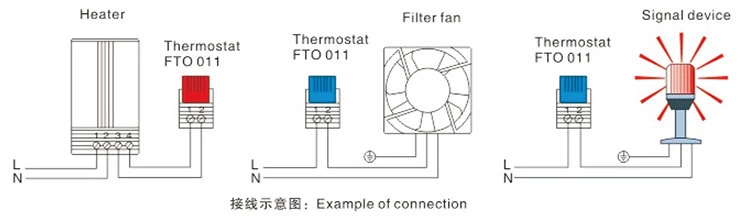

Contact breaker / NC (red casing ) for regulating heaters or for switching signal devices when temperature has fallen below the minimum vaIue .The contact opens when temperature is rising.                                                                             Tamperprof(pre-set) Thermostat FTS 011

Contact maker / NO (bule casing) for regulatiing filter fans. heater exchangers .coolling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.



Technical Data:

 sensor element  thermostatic bimetal
 contact type  snap-action contact
 contact resistance  <20mΩ
 service life  >100000 cycles
 Max.Switching capacity  250V AC, 5(1.6)A
 120V AC,10(2)A
 DC 30W
 Max. inrush current  AC 10A
 EMC  acc. to EN 55014-1-2.EN 6100-3-2, EN 61000-3-3
 connection  2-pole terminal for 2.5 mm⊃2;,torque 0.8 Nm max.
 mounting clip for 35mm DIN rail ,EN60715 or for exit filter EF 118 series
 casing  plastic accodding to UL94 V-0,light grey

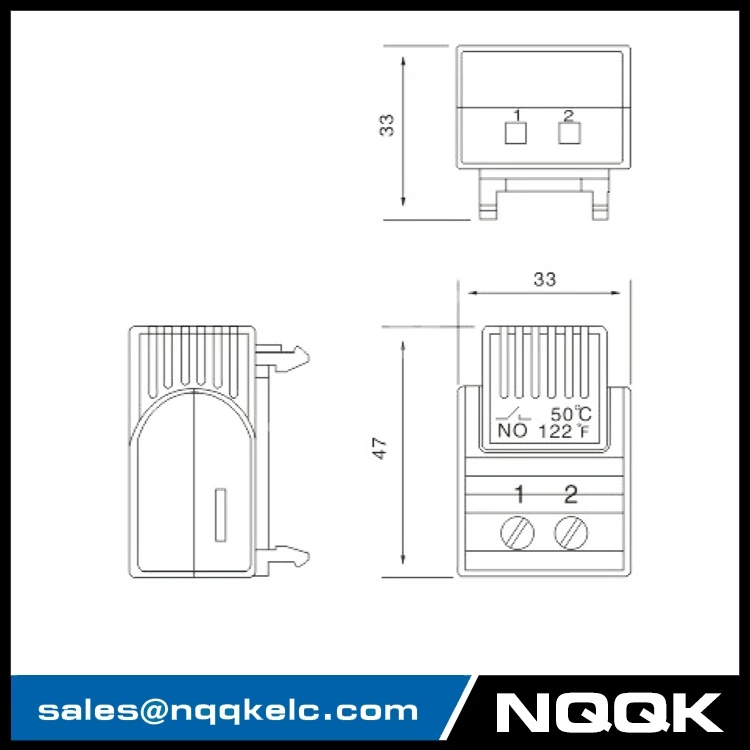

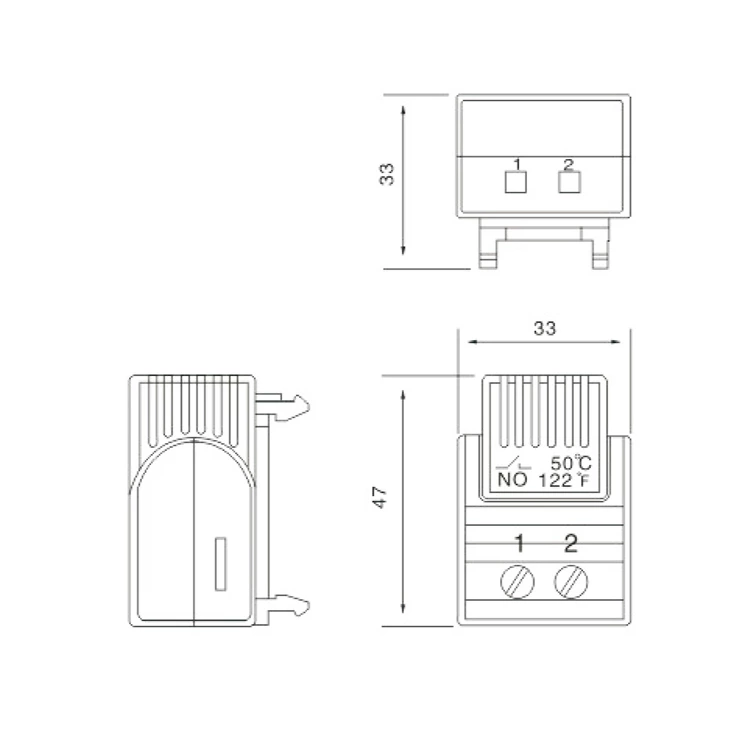

 dimensions  47*33*33mm
 weight  approx.23g
 fitting position  variable
 Operating /storage temperature  -20 to + 80°C (-40 to +176°F)/-45 to +80 °C (-49 to +176 °F)
 protection type  IP20



Art. No. Contact type Switch-off temperature Switch-on temperature
01160.0-00 Contact breaker (NC) +15°C / +59°F (± 5K tolerance) +5°C / +41°F (± 5K tolerance)
01160.0-01 Contact breaker (NC) +25°C / +77°F (± 5K tolerance) +15°C / +59°F (± 5K tolerance)
    Switch-on temperature Switch-off temperature
01161.0-00 Contact maker (NO) +50°C / +122°F (± 6K tolerance) +40°C / +104°F (± 7K tolerance)
01161.0-01 Contact maker (NO) +60°C / +140°F (± 6K tolerance) +50°C / +122°F (± 7K tolerance)
01161.0-02 Contact maker (NO) +35°C / + 95°F (± 6K tolerance) +25°C / +77°F (± 7K tolerance)
