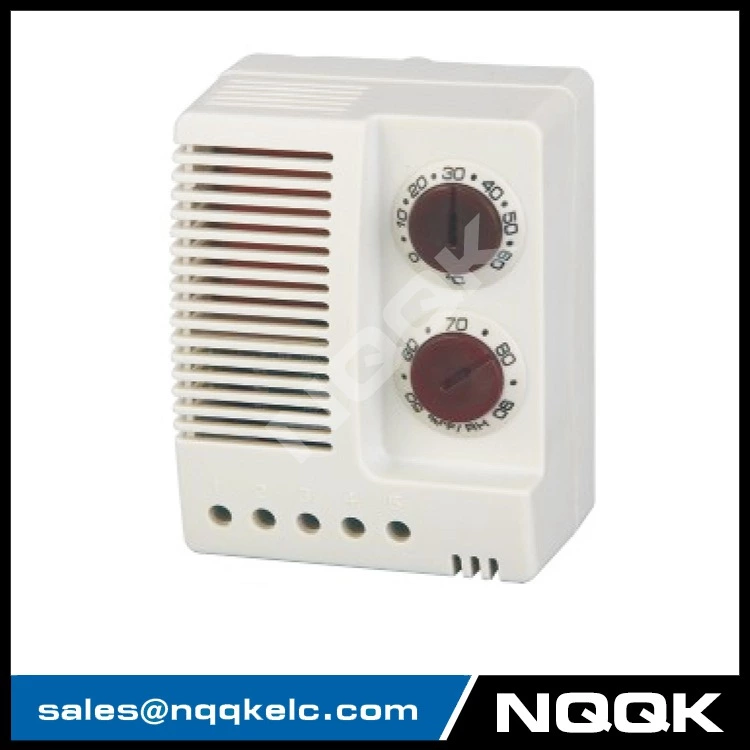

ETF012 Temperature and humidity adjustable Electronic Thermostat
Temperature and humidity adjustable
Optical Operating display(LED)
High switching capacity
Clip fixing
The electronic hygrostat senses the relative humidity in an enclosure with electric/electroni
- Brand
- NQQK
Temperature and humidity adjustable
Optical Operating display(LED)
High switching capacity
Clip fixing
The electronic hygrostat senses the relative humidity in an enclosure with electric/electronic components,
and turns on a heater at the set point,helping prevent the formation of condensation in the enclosure The
LED integrated in the adjustment knob is lit when the connected heater is in operation
Technical Data:
| Switch difference (temperature) | 2K (± 1K tolerance) at 25°C/77°F (50% RH) |
|---|---|
| Switch difference (humidity) | 4% RH (± 1% tolerance) at 25°C/77°F (50% RH) |
| Reaction time (humidity) | 5 sec. |
| Contact type | change-over contact (relay) |
| Service life | NC: 50,000 cycles |
| NO: 100,000 cycles | |
| Max. Switching capacity (Relay output) | NC: 240VAC, 6 (1) A |
| NO: 240VAC, 8 (1.6) A | |
| NC: 120VAC, 6 (1) A | |
| NO: 120VAC, 8 (1.6) A | |
| 24VDC, 4A | |
| Optical indicator | LED |

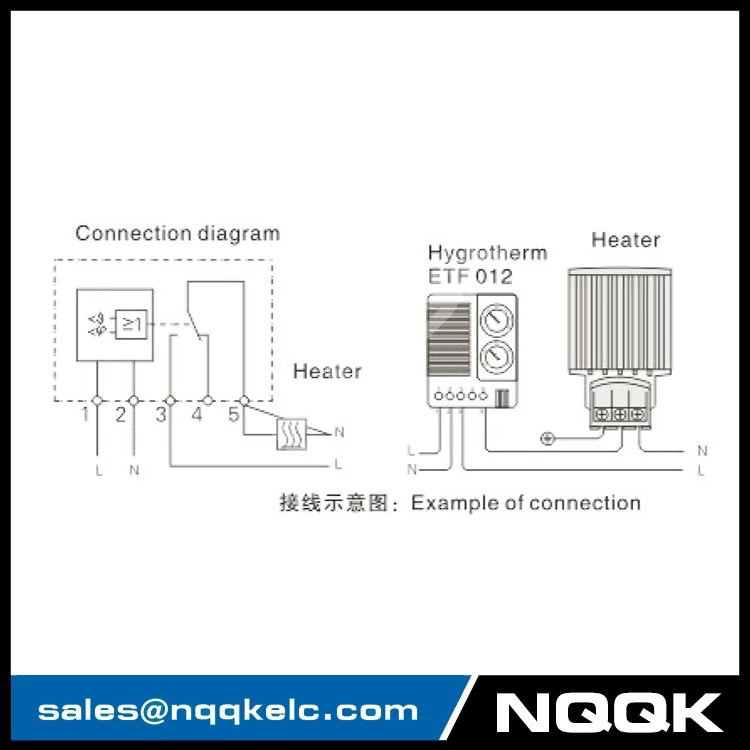

| Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2;, stranded wire (with wire end ferrule) 1.5mm⊃2; |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Casing | plastic according to UL94 V-0, light grey |

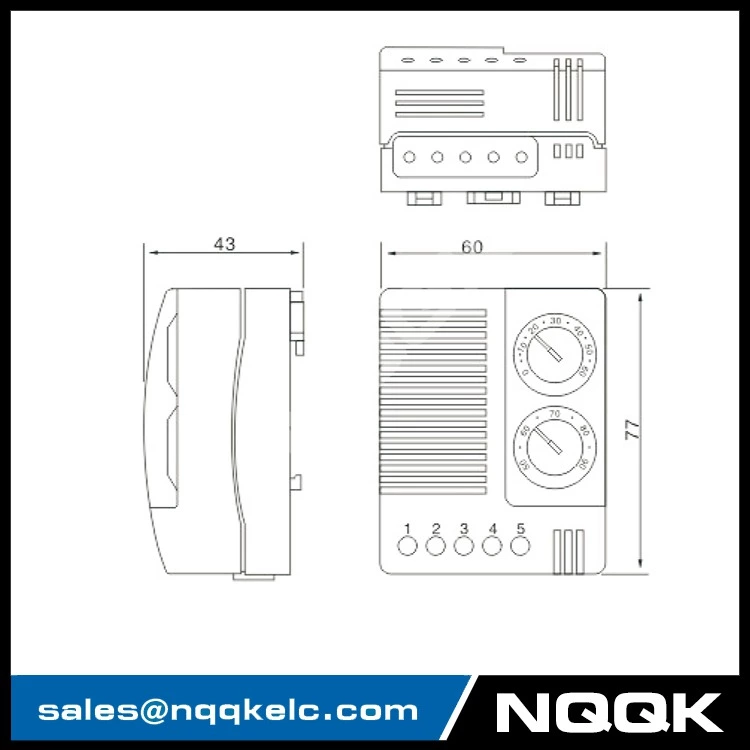

| Dimensions | 77 x 60 x 43mm |
| Weight | approx. 0.2kg |
| Fitting position | vertical |
| Operating/Storage temperature | 0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Setting range temperature | Setting range humidity | Approval |
|---|---|---|---|---|
| 01230.0-00 | 230VAC, 50/60Hz | 0 to +60°C | 50 to 90% RH | VDE + UL File No. E164102 |
| 01230.9-00 | 120VAC, 50/60Hz | +32 to +140°F | 50 to 90% RH | UL File No. E164102 |
| 01230.0-01 | 230VAC 50/60HZ | +32 to +140°F | 50 to 90% RH | UL File No. E164102 |
| 01230.9-01 | 120VAC, 50/60Hz | 0 to +60°C | 50 to 90% RH | UL File No. E164102 |
