DA 084 Pressure Compensation Device

Pressure Compensation Device DA 084 High degree of protection Easy to install Protected environment 1, It has become more and more important to provide a protected enclosure environment for val
Brand
NQQK

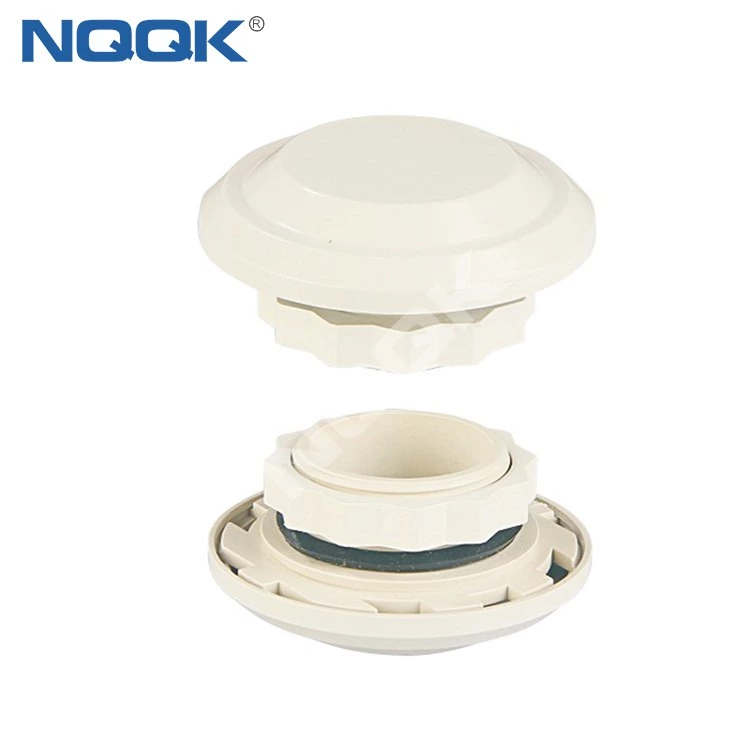

Pressure Compensation Device DA 084

High degree of protection

Easy to install

Protected environment


1, It has become more and more important to provide a protected enclosure environment for valuable
and crucial electrical and electronic components.

2, In a tightly closed enclosure, pressure differentials can occur during extreme temperature variations,
such as day/night operation.

3, When this occurs, the risk of dust and humidity being absorbed into the control panel increases
dramatically

4, The specially  designed pressure compensation plug DA 084 Permits a controlled change in pressure

5, It can be installed easily in any enclosure. Because of the pressure compensation plug's high degree
of protection(IP45), the protection type of the ennclosure will not be affected.

Technical Data:

Mounting

PG 29 thread with union nut
Material plastic according to UL94 V-0
Air interface approx. 7cm2

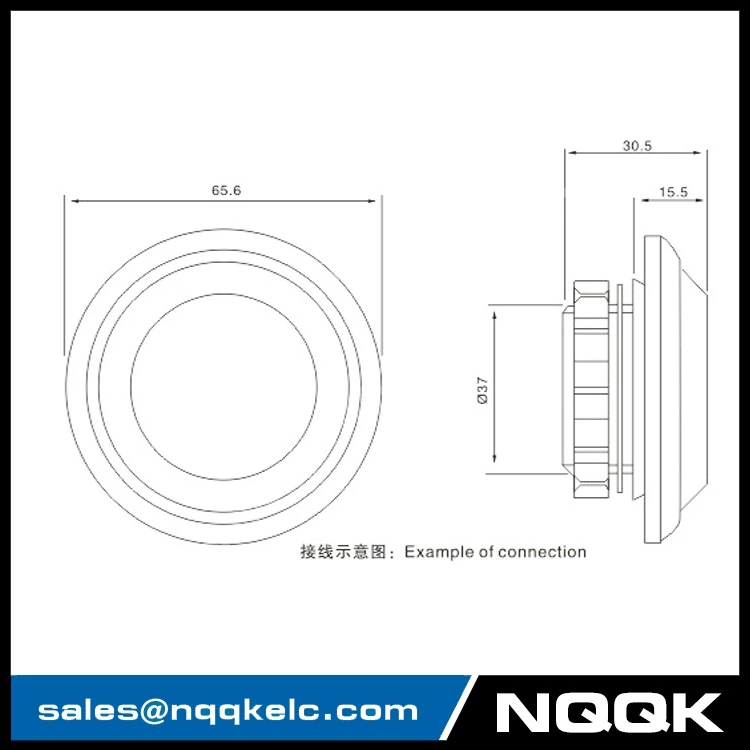

Dimensions Φ65.5 x 30.5mm
Fitting position variable
Operating/Storage temperature -45 to +70°C (-49 to +158°F)


Installation:

Make cut-out Ø 37+1mm in enclosure wall and mount pressure compensation device with nut.

Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure.

For optimal pressure compensation we recommend to use two devices on opposite sides towards the
top of the enclosure

DA 084 Pressure Compensation Device

Art. No. Model Protection type Packing unit Weight(approx.)
08400.0-00 without gasket IP45 2 pieces 62g(31g/piece)
08400.0-04 with gasket IP55 2 pieces 62g(31g/piece)
