CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater

Model
CSL028
Brand
NQQK
CSL028 150W,250W, 400W Small Compact Semiconductor Clip or Screw Fixing Fan Heater
1.Compact,Flat design
2.clip fixing
3.High air through-flow
4.475W-650W
Fan heater prevents formation of co
Contact Now
CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater
CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater CSL028 150W , 250W , 400W Small Compact Semiconductor Clip Or Screw Fixing Fan Heater

CSL028 150W,250W, 400W Small Compact Semiconductor Clip or Screw Fixing Fan Heater


1.Compact,Flat design

2.clip fixing

3.High air through-flow

4.475W-650W



Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

The heater is connected using the internal terminal connectors.

The CS 028s small size make it idea for use in enclosures where space is at a premium.



Technical Data:

Surface temperature 150W/250W: max. 50°C (122°F), except upper protective grille 400W: max. 65°C (149°F), except upper protective grille at 20°C (68°F) ambient temperature
Axial fan, ball bearing air flow, free flow: CS 028: 13.8m³/h CSL 028: 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at 40°C (104°F)
Connection 2-pole clamp max. 2.5mm² (CSL 028 with strain relief), clamping screw torque 0.8Nm max.
Casing plastic according to UL94-0, black

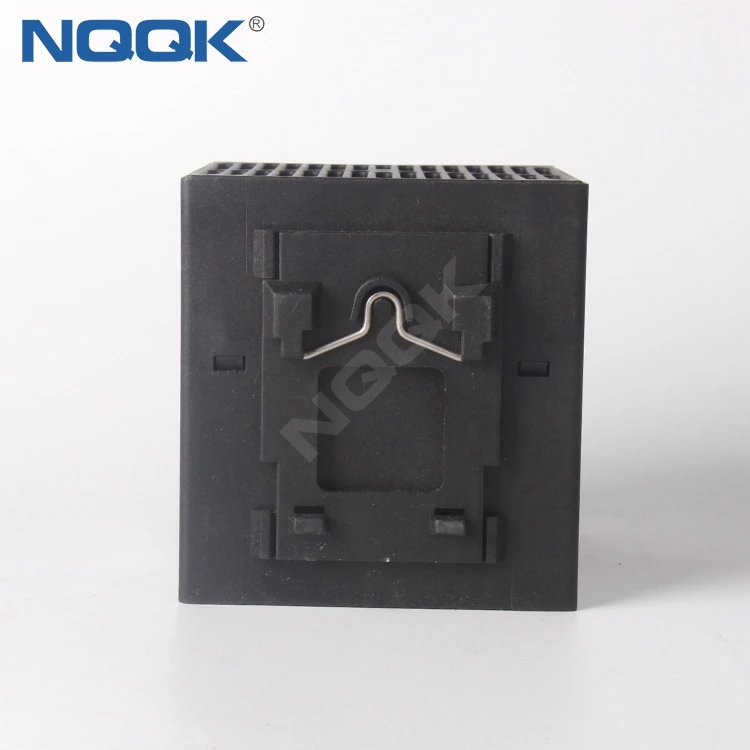

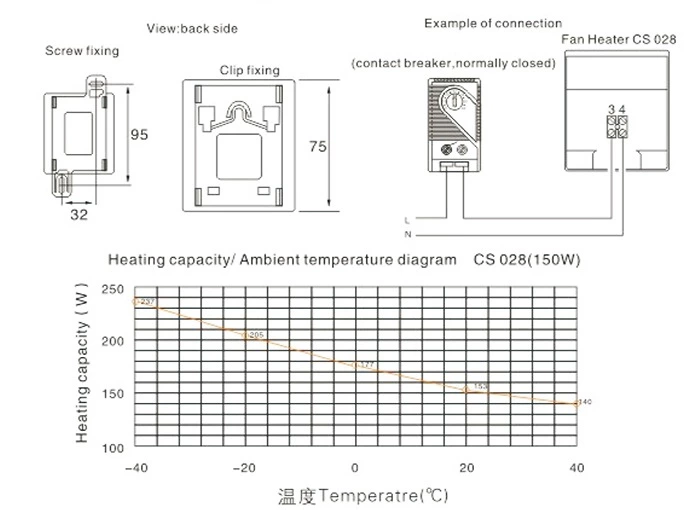

Mounting clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position vertical airflow (air outlet up)
Operating / Storage temperature -45 to +70°C (-49 to +158°F)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type / Protection class IP20 / II (double insulated)
Approvals UL File No. E150057 (according to UL 499, intended for the use within an enclosure in accordance with UL 508A) 230V only: VDE



Art. No. clip fixing Art. No. screw fixing Series Operating voltage Heating capacity1) Inrush current max. Pre-fuse T (time-delay) Dimensions Weight (approx.)

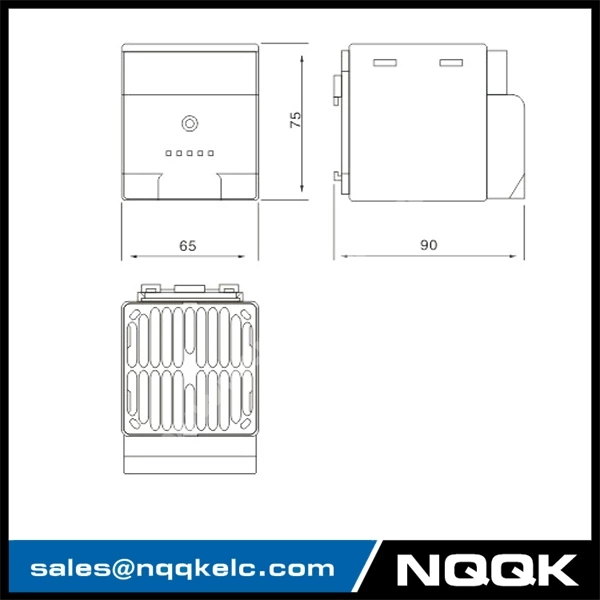

02800.0-00 02800.0-01 CS 028 230VAC, 50/60Hz 150W 12A 6.3A 75 x 65 x 90mm 0.3kg
02811.0-00 02811.0-01 CSL 028 230VAC, 50/60Hz 250W 9A 6.3A 90 x 85 x 111mm 0.5kg
02810.0-00 02810.0-01 CSL 028 230VAC, 50/60Hz 400W 15A 10A 90 x 85 x 111mm 0.5kg
02800.9-00 02800.9-01 CS 028 120VAC, 50/60Hz 150W 6A 6.3A 75 x 65 x 90mm 0.3kg
02811.9-00 02811.9-01 CSL 028 120VAC, 50/60Hz 250W 6A 6.3A 90 x 85 x 111mm 0.5kg
02810.9-00 02810.9-01 CSL 028 120VAC, 50/60Hz 400W 9A 6.3A 90 x 85 x 111mm 0.5kg
