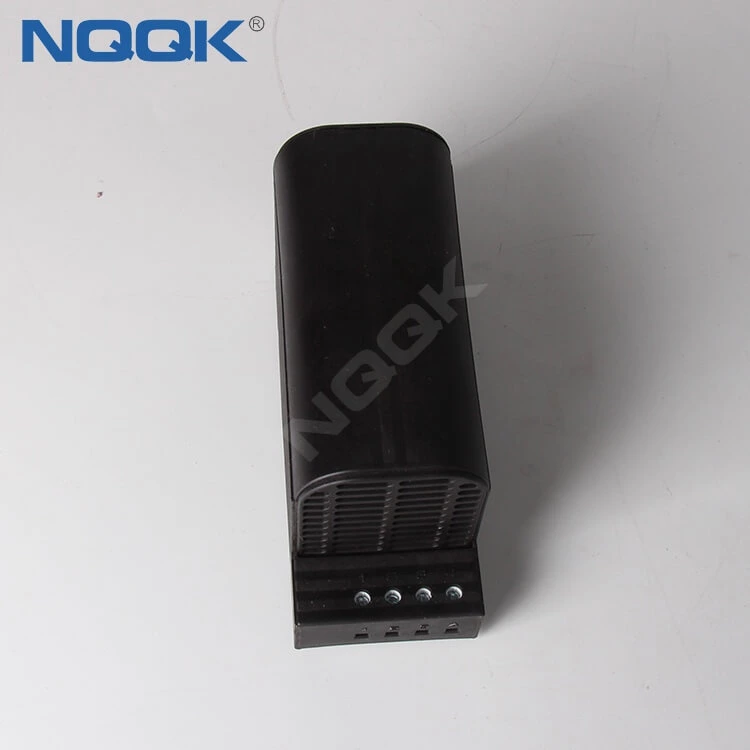

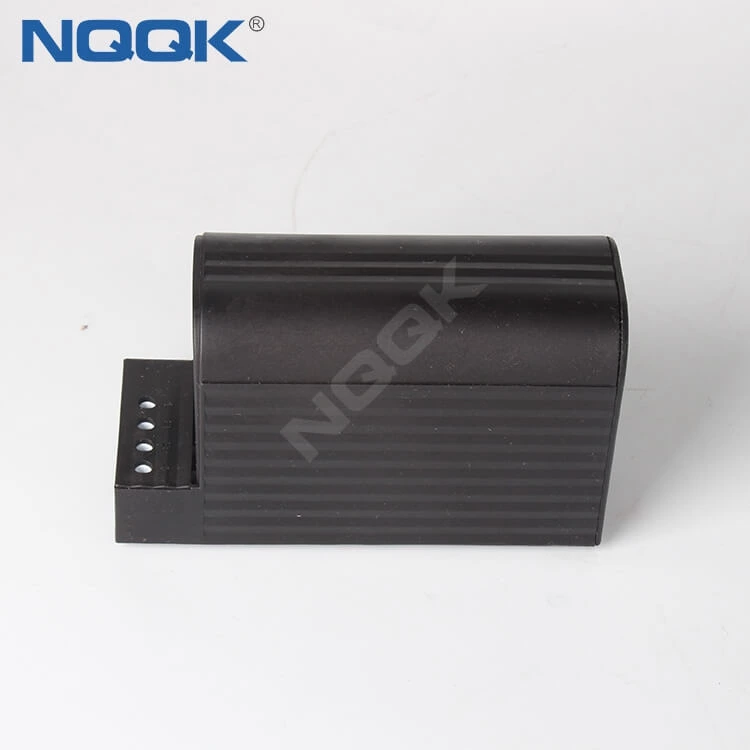

CSF 060 50W To 150W Touch-safe Heater

CSF 060 50W To 150W Touch-safe Heater 1.Low surface temperature 2.Quick mounting due to clip fixing 3.Dobe insulated (plastic) 4.Wide voltage range 5.Small size 6.Integrated thermostat Touch-s
Brand
NQQK

CSF 060 50W To 150W Touch-safe Heater


1.Low surface temperature

2.Quick mounting due to clip fixing

3.Dobe insulated (plastic)

4.Wide voltage range

5.Small size

6.Integrated thermostat


Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air.The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design . Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060. This heater is also available in a version with plug-in thermostat requiring no additional wiring (CSF 060). Both versions are designed for permanent operation. This heater is also available in a version without thermostat (CS 060).


Technical Data:

Operating voltage 120-240V AC/DC*(min.110V,max.265V)
Heating capacity see table
Heater element PTC resistor - temperature limiting
Surface temperature <80&deg;C(176&deg;F) except upper protective grille

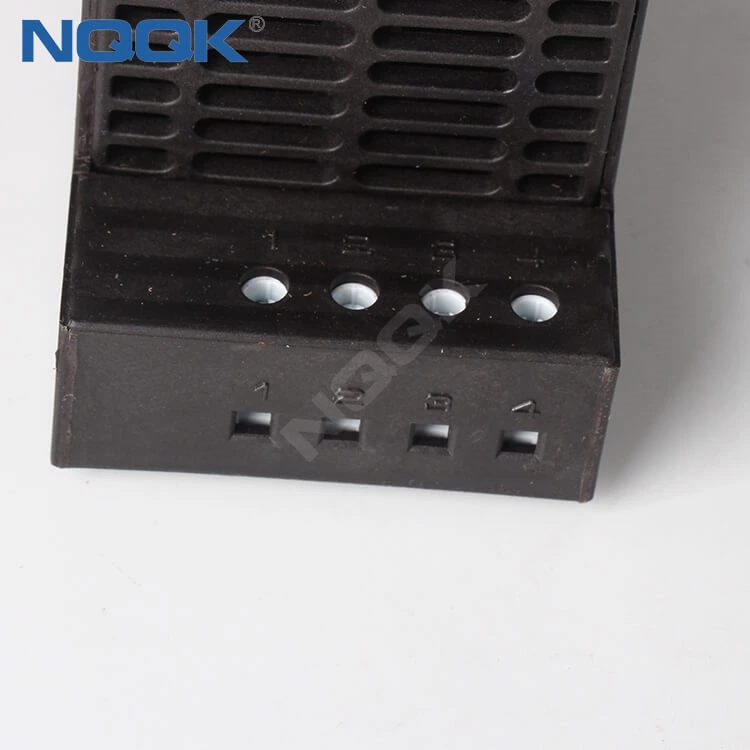

Connection 4-pole terminal 2.5mm2 torpue 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 50022
Fitting position vertical
Operating / Storage temperature -20 to+70&deg;C(-4 to +158&deg;F)/-45 to +70&deg;C(-49 to +158&deg;F)
Protection type / Protection class IP20 / II (double insulated)
Approvals  CE
Note other voltages on request

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

CSF 060 50W To 150W Touch-safe Heater

CSF 060 50W To 150W Touch-safe Heater

CSF 060 50W To 150W Touch-safe Heater

CSF 060 50W To 150W Touch-safe Heater

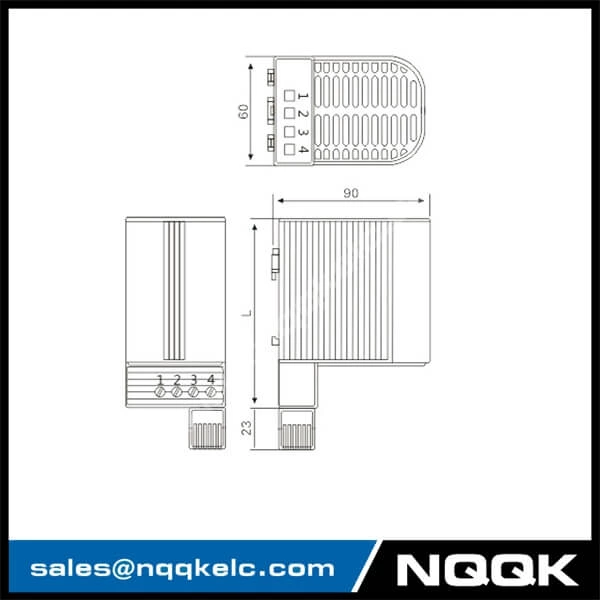

Art. No. Heating capacity Inrush current max. Air outlet  temperature2 Switch-off temperature3 Switch-off temperature3 Dimensions Weight (approx.)
06001.0-00 50W 2.5A +86&deg;C(186.8&deg;F) +15&deg;C(59&deg;F) +15&deg;C(41&deg;F) 110x60x90mm 0.30kg
06002.0-00 50W 2.5A +86&deg;C(186.8&deg;F) +25&deg;C(77&deg;F) +25&deg;C(59&deg;F) 110x60x90mm 0.30kg
06011.0-00 100W 4.5A +120&deg;C(248&deg;F) +15&deg;C(59&deg;F) +15&deg;C(41&deg;F) 110x60x90mm 0.30kg
06012.0-00 100W 4.5A +120&deg;C(248&deg;F) +25&deg;C(77&deg;F) +25&deg;C(59&deg;F) 110x60x90mm 0.30kg
06021.0-00 150W 8A +145&deg;C(293&deg;F) +15&deg;C(59&deg;F) +15&deg;C(41&deg;F) 150x60x90mm 0.50kg
06022.0-00 150W 8A +145&deg;C(293&deg;F) +25&deg;C(77&deg;F) +25&deg;C(59&deg;F) 150x60x90mm 0.50kg

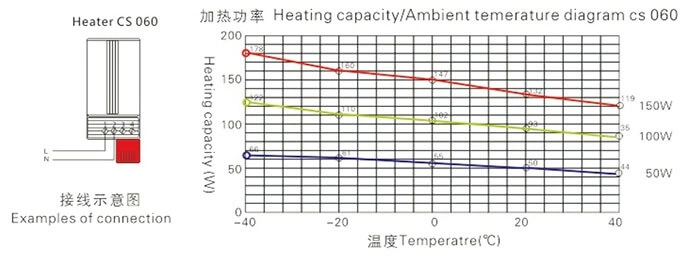

1)amdient temperature-see Heating capacity/Ambient temperattre diagram; 2)measured 50mm above protective grille;
