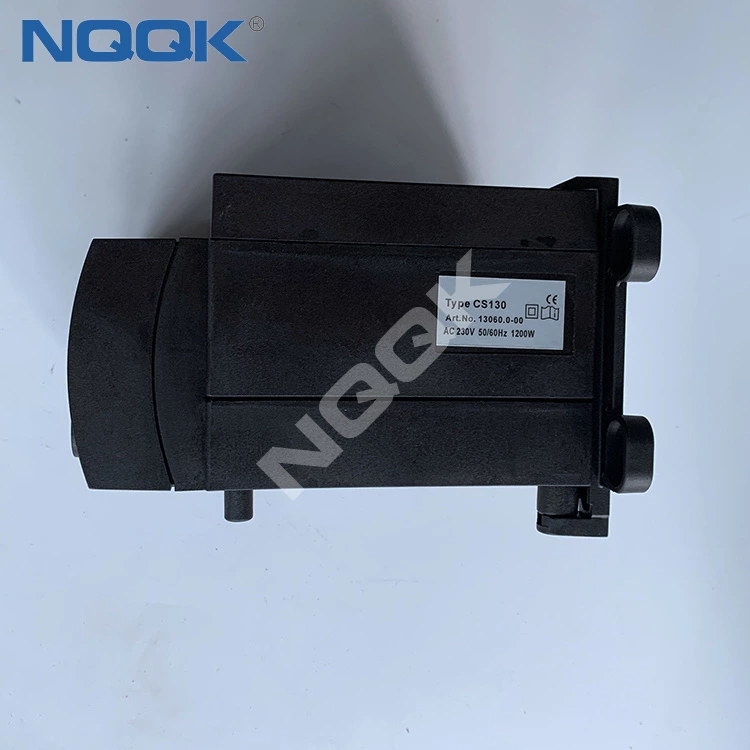

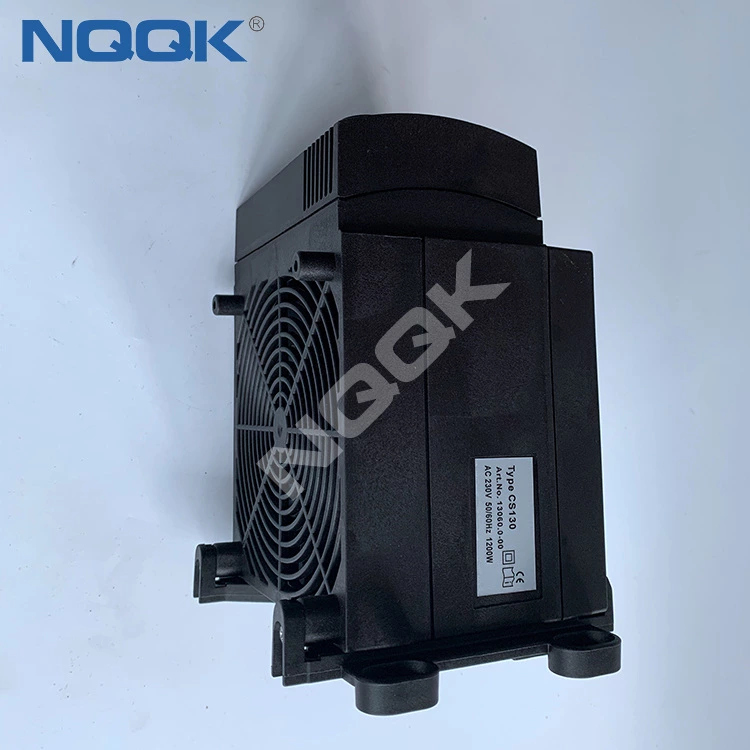

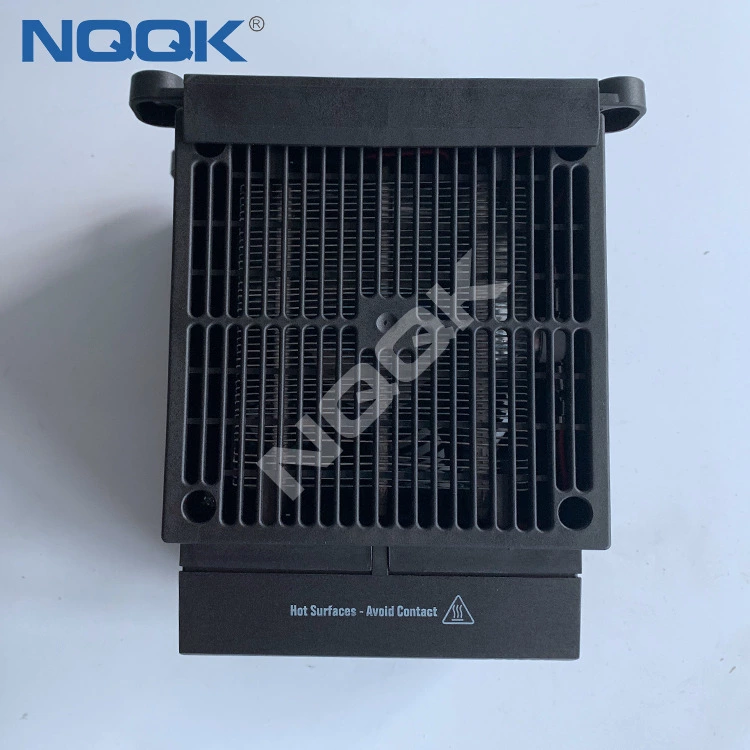

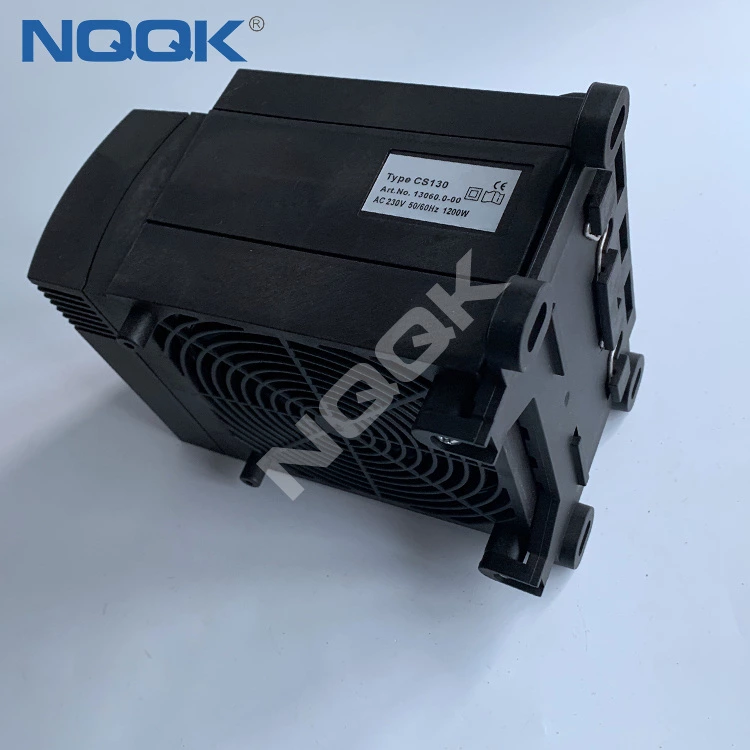

CS 130 950W, 1200W Compact High-performance Fan Heater
CS 130 950W,1200W Compact High-performance Fan Heater
1.Compact design
2.Double insulated
3.Integrated thermostat (optional)
4.High heating performance
5.Optional clip or screw fixing
Technical
- Brand
- NQQK
CS 130 950W,1200W Compact High-performance Fan Heater
1.Compact design
2.Double insulated
3.Integrated thermostat (optional)
4.High heating performance
5.Optional clip or screw fixing
Technical Data:
| Heating element | PTC resistor, self regulating and temperature limiting |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| automatic reset | |
| Heater body | extruded aluminium profile |
| Axial fan, ball bearing | airflow see table |
| service life 50,000h, at 25°C(77°F) | |
| Connection | 2-pole clamp max. 2.5mm⊃2; clamping screw |
| torque 0.8Nm max. | |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | horizontal |

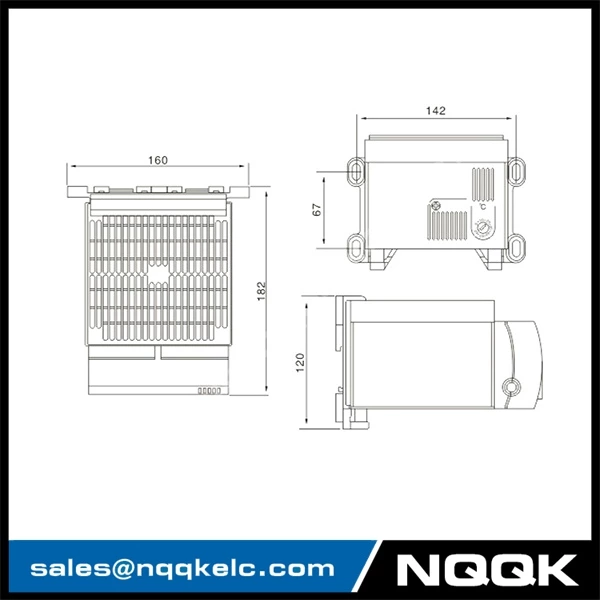

| Dimensions | 100*128*165mm |
| Weight | approx. 1.25kg |
| Operating/Storage temperature | -45 to +70°C(-49 to +158°F) |
| Protection type/Protection class | IP20/ II (double insulated) |
| Art. No. | Model | Operating voltage | Heating capacity | Inrush current max. | Setting range |
| 13060.0-00 | Fan heater with thermostat | 230VAC, 50/60Hz | 1200W | 13A | 0 to +60°C |
| 13060.0-01 | Fan heater without thermostat | 230VAC, 50/60Hz | 1200W | 13A | - |
| 13060.9-00 | Fan heater with thermostat | 120VAC, 50/60Hz | 1200W | 16A | +32 to +140°F |
| 13060.9-01 | Fan heater without thermostat | 120VAC, 50/60Hz | 1200W | 16A | - |
* at 20°C (68°C) ambient temperature
