Thermostat & Heater

CS 060 series 50W-150W Touch-safe Heater

Model
CS 060
Brand
NQQK
Touch-safe Heater CS 060 series 50W-150W
1. Low surface temperature
2. Integrated thermostat
3. Quick mounting due to clip fixing
4. Double insulated (plastic)
5. Wide voltage range
6. Small siz
Contact Now
CS 060 series 50W-150W Touch-safe Heater
CS 060 series 50W-150W Touch-safe Heater CS 060 series 50W-150W Touch-safe Heater CS 060 series 50W-150W Touch-safe Heater

Touch-safe Heater CS 060 series 50W-150W


1. Low surface temperature

2. Integrated thermostat

3. Quick mounting due to clip fixing

4. Double insulated (plastic)

5. Wide voltage range

6. Small size

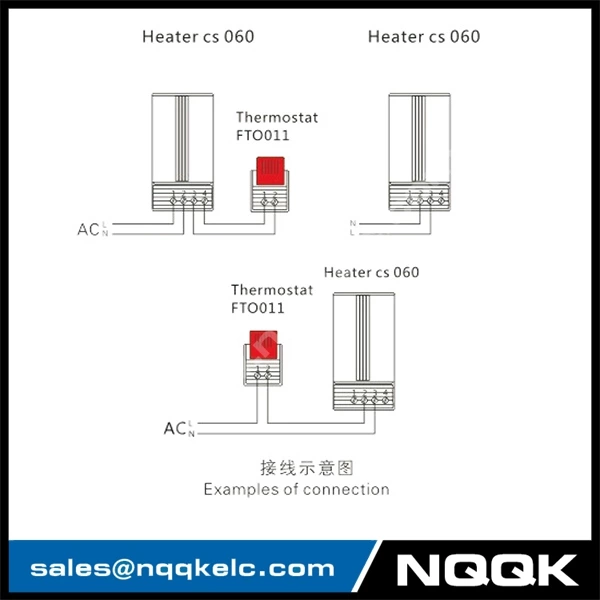

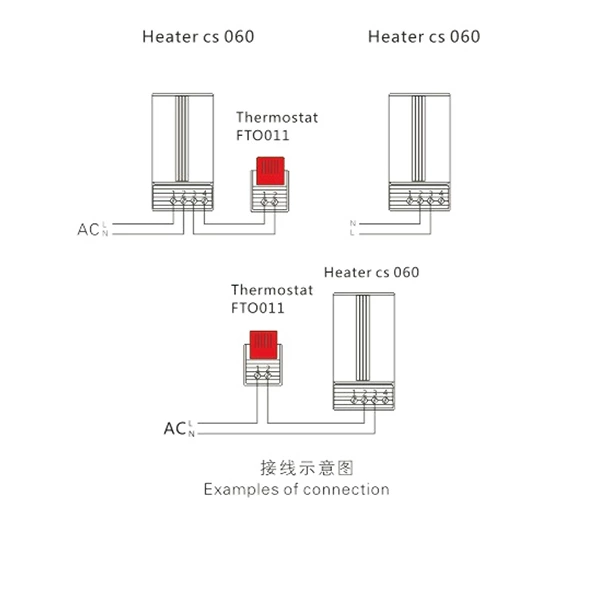

Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. This model with plug-in thermostat does not require additional wiring. The heaters are designed for permanent operation.


Technical Data:

Operating voltage 120-240V AC* (min. 110V, max. 265V)

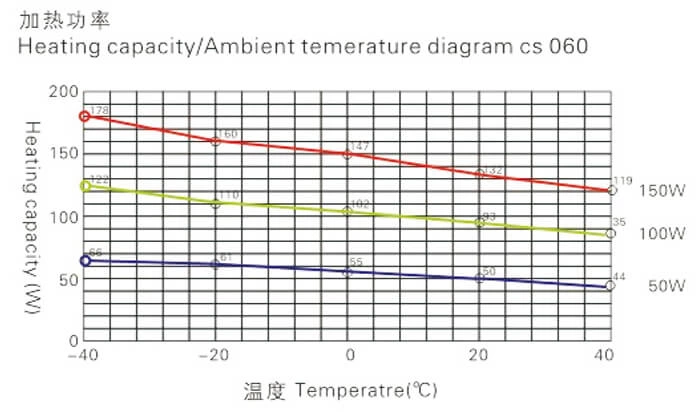

Heating capacity see table
Heating element PTC resistor - temperature limiting
Surface temperature <80°C(176°F), except upper protective grille
Connection 4-pole terminal 2.5mm2, torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 50022
Fitting position vertical
Operating / Storage temperature -20 to +70°C (-4 to +158°F) / -45 to +70°C (-49 to +158°F)
Protection type / Protection class IP20 / 2(double insulated)
Note other voltages on request

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

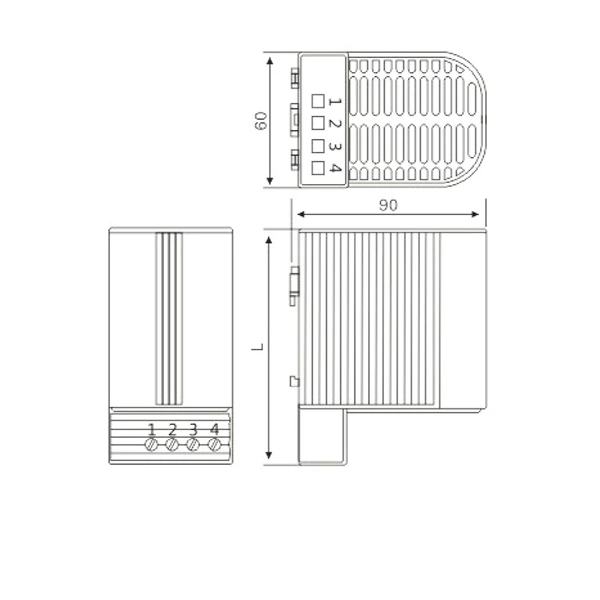

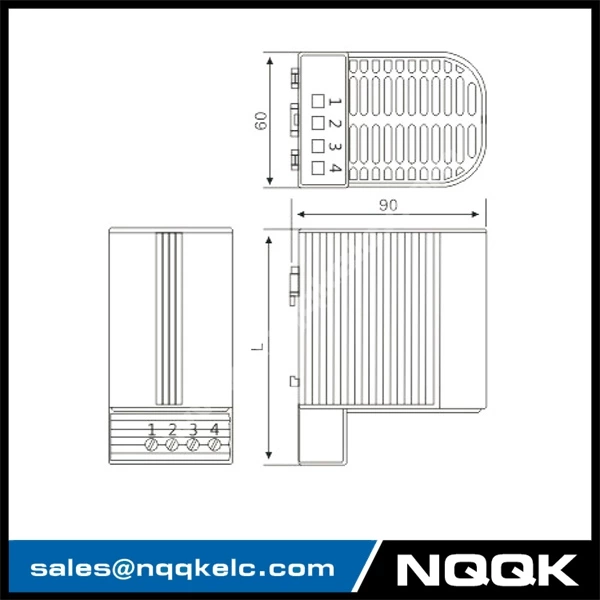

Art.No. Heating capacity1) Inrush current max. Air outlet temperature2) Switch-off temperature3) Starting temperature3) Dimensions Weight (approx.)
06000.0-00 50W 2.5A +86°C (186.8°F) +15°C (59°F) +5°C (41°F) 110×60×90mm 0.30kg
06010.0-00 100W 4.5A +120°C (248°F) +15°C (59°F) +5°C (41°F) 110×60×90mm 0.50kg
06020.0-00 150W 8A +145°C (293°F) +25°C (77°F) +15°C (59°F) 150×60×90mm 0.50kg
