Thermostat & Heater

CR027 up to 650w Semiconductor Fan Heater

Model
CR027
Brand
NQQK
CR027 up to 650w Semiconductor Fan Heater
Compact heater
Heating capacity adjusts to ambient temperature
Adjustable temperature range
Clip fixing
Optical indicator
Temperature sa
Contact Now
CR027 up to 650w Semiconductor Fan Heater
CR027 up to 650w Semiconductor Fan Heater CR027 up to 650w Semiconductor Fan Heater

CR027 up to 650w Semiconductor Fan Heater

Compact heater

Heating capacity adjusts to ambient temperature

Adjustable temperature range

Clip fixing

Optical indicator

Temperature safe cut-out


Semiconductor fan heater prevents formation of condensation and ensure en even temperature in switch
and control equipment, The bulit-in regulator is used to set the desired temperature.


Technical Data:

Heating element PTC resistor, self regulating and temperature limiting
Temperature safety cut-out To protect against overheating in case of fan failure
Axial fan, ball bearing Airflow see table
  Service life 50,000h at 25°C (77°F)
Connection 2-pole clamp 2.5mm⊃2;, clamping torque 0.8Nm max.
Casing Plastic according to UL94 V-0, light grey
Optical indicator Thermostat control lamp
Mounting Clip for 35mm DIN rail, EN 50022
Fitting position Vertical

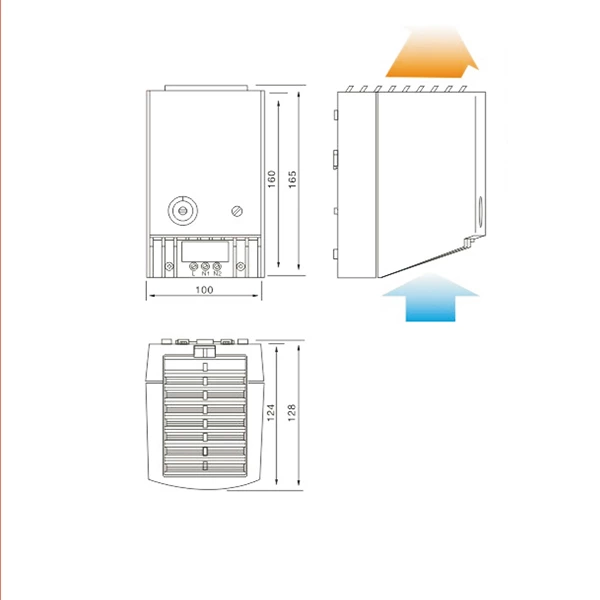

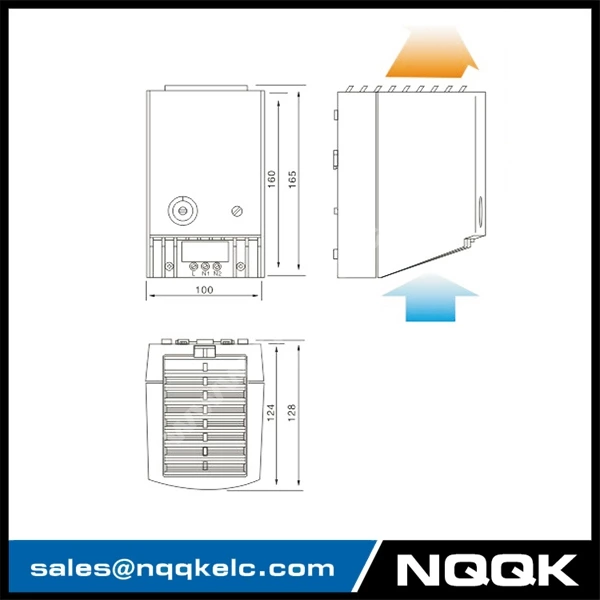

Dimensions 100 x 128 x 165mm
Operating / Storage temperature -45 to +70°C (-49 to +158°F)
Protection type / Protection class IP20 / II (double insulated)

Note: In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose
we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).

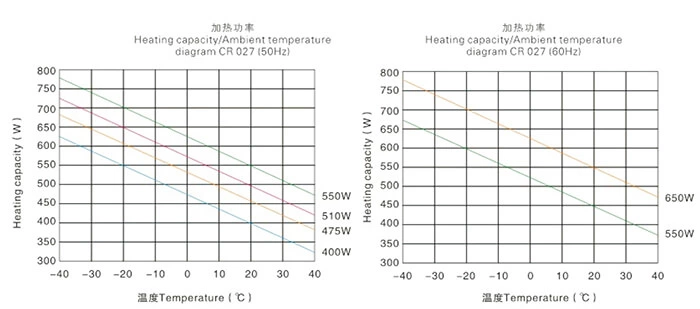

Art. No. Operating voltage Heating capacity* (50Hz) Heating capacity* (60Hz) Inrush current max. Airflow, free flow Setting range Temp. regulator Weight(approx.)
02700.0-00 220-240VAC, 50/60Hz 475W 550W 11.0A 35m3/h 0 to +60°C 0.90kg
02701.0-00 220-240VAC, 50/60Hz 550W 650W 13.0A 45m3/h 0 to +60°C 1.10kg
02700.9-00 100-120VAC, 50/60Hz 400W 550W 14.0A 35m3/h +32 to +140°F 0.90kg
02701.9-00 100-120VAC, 50/60Hz 510W 650W 15.0A 45m3/h +32 to +140°F 1.10kg
