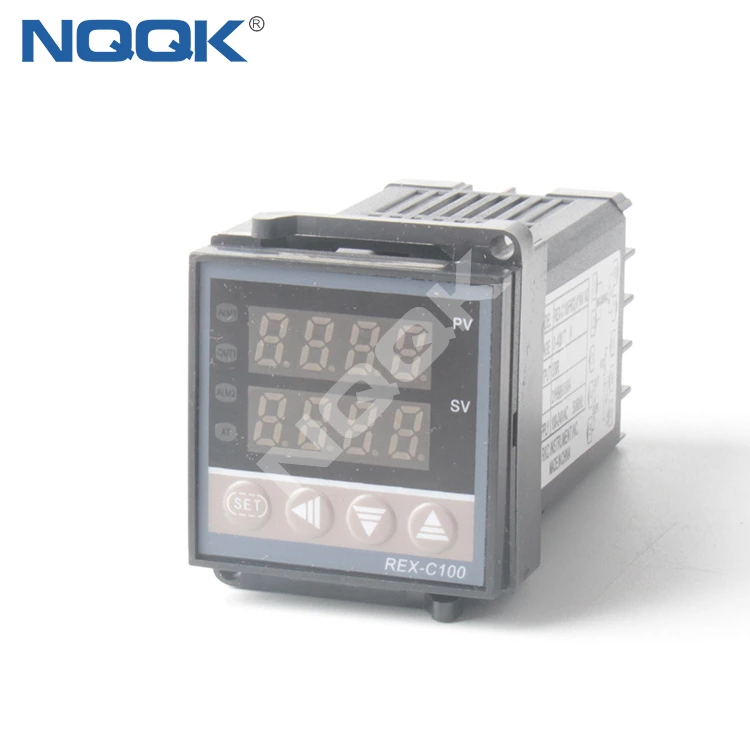

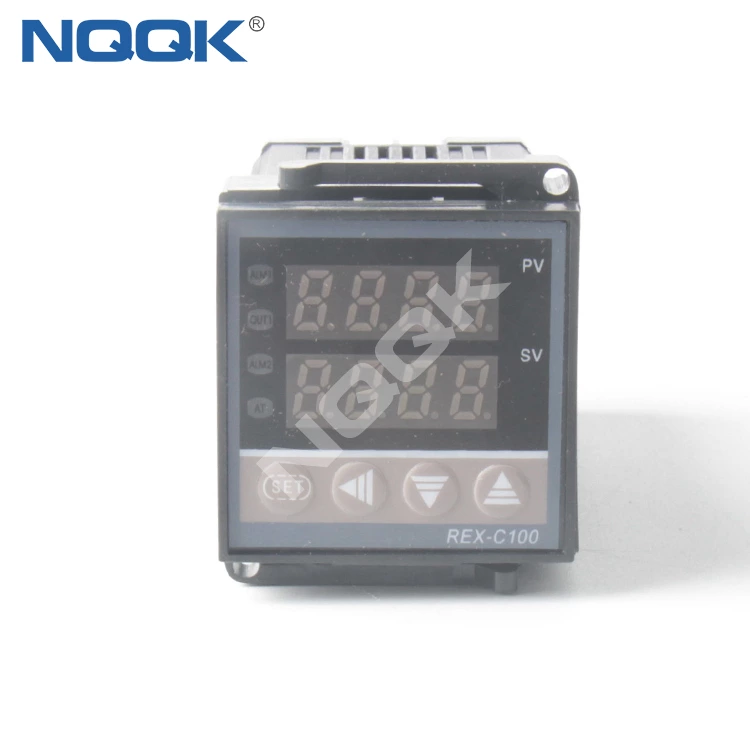

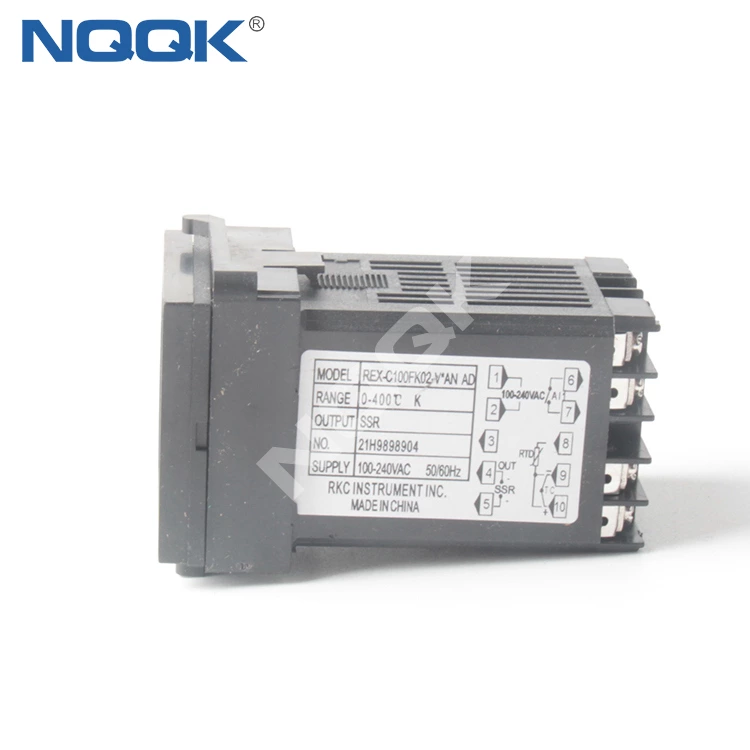

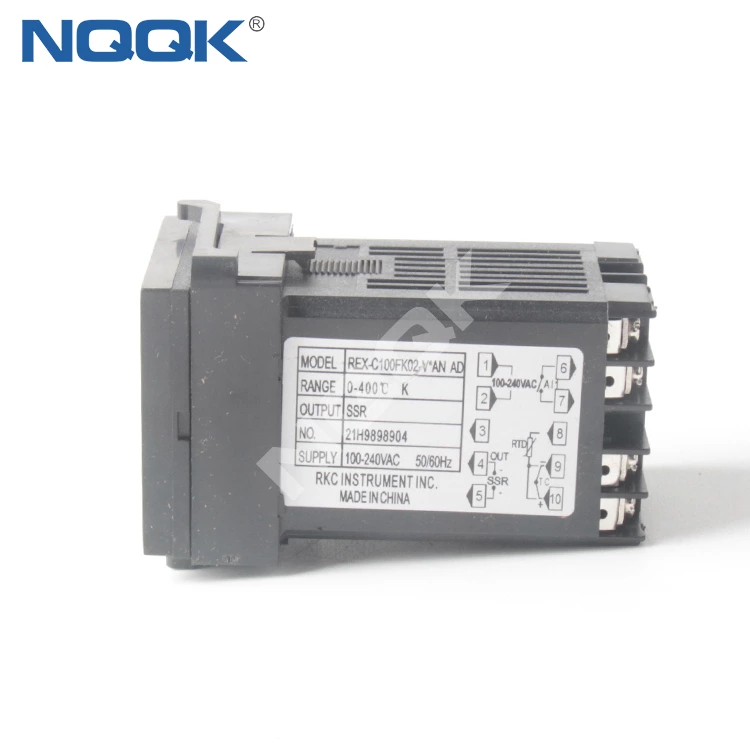

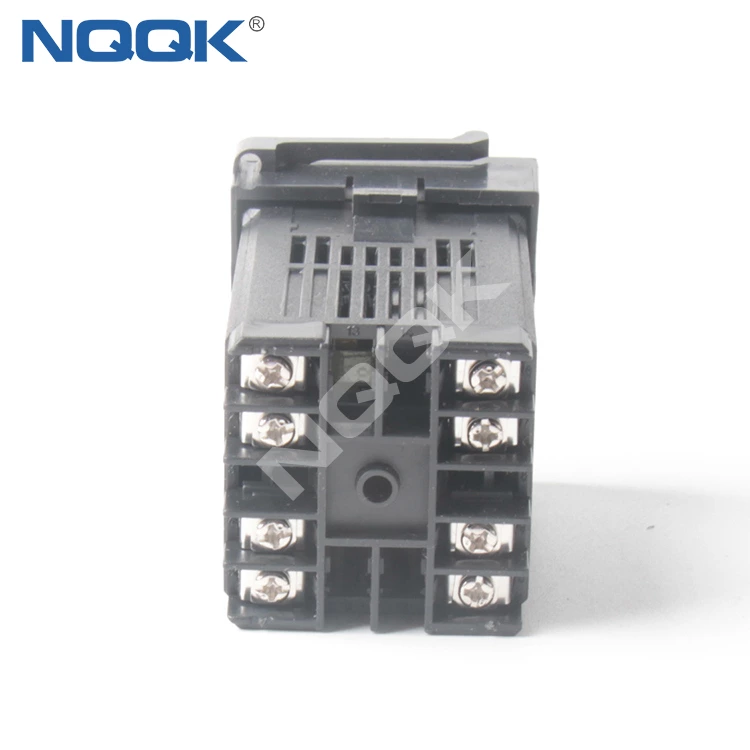

REX-C100FD-K02 Intelligent adjust Digital Industrial Thermostat Temperature Controller

REX Temperature Controller
Brand
NQQK



REX-C100FD-K02 Intelligent adjust Digital Industrial Thermostat Temperature Controller

Product Description

1 REX-C100FD-K02.JPG2 REX-C100FD-K02.JPG3 REX-C100FD-K02.JPG4 REX-C100FD-K02.JPG5 REX-C100FD-K02.JPG6 REX-C100FD-K02.JPG7 REX-C100FD-K02.JPG

Main Technical Index

Input

Thermocouple(TC),Resistance Temperature Detector(RTD),Standard Current and voltage signals.
Display Process Value(PV),Setting Value(SV):-1999~+1999
Output( OUT1,OUT2) Alarm(Alarm1,Alarm2) Auto setting(AT) Display: LED
Control way 1).PID Control(including ON/OFF, position PID and continuous PID)
(2).Auto Setting Control
Accuracy Measurement Accuracy:±0.5%FS Compensation error of cold terminal:±2°C(amend within 0~50°C by soft)
Resolution:14bit. Sampling period:0.5Sec.
Setting Range Setting Value(SV):same range with PV
Proportional Band(P):0~full range(ON/OFF Control when set to 0)
Integration Time(I):0~3600Sec (no integral action when set to 0)
Derivative Time(D):0~3600Sec(no derivative action when set to 0)
Proportional Period:1~100Sec
On-off control output hysteretic loop width:1~100°C(or other PV units)
Control Output (1)Currency output: DC 0~10Ma,4~20mA(RL less than 500Ω)
(2)Voltage output: DC 0-5V,1-5V(RL more than 10K)
(3)Relay output: Contact capacity:250V AC 3A(resistive load)
(4)Voltage Impulse output:0-12V(applicable for solid state relay SSR)
(5)Silicon Controlled Rectifier(SCR) output: zero-cross triggering or phase-shift triggering(resistive load)
(6)Output Contact Capacity:250V AC 3A
Alarm output 2 groups output at most,12 modes
Inanlating resistanle more than 50MΩ(500V DC)
Inanlating intensity 1500V AC/min
Power consumed less than 10 VA
Work condition 0~50°C,30~85RH,no corrosive gas

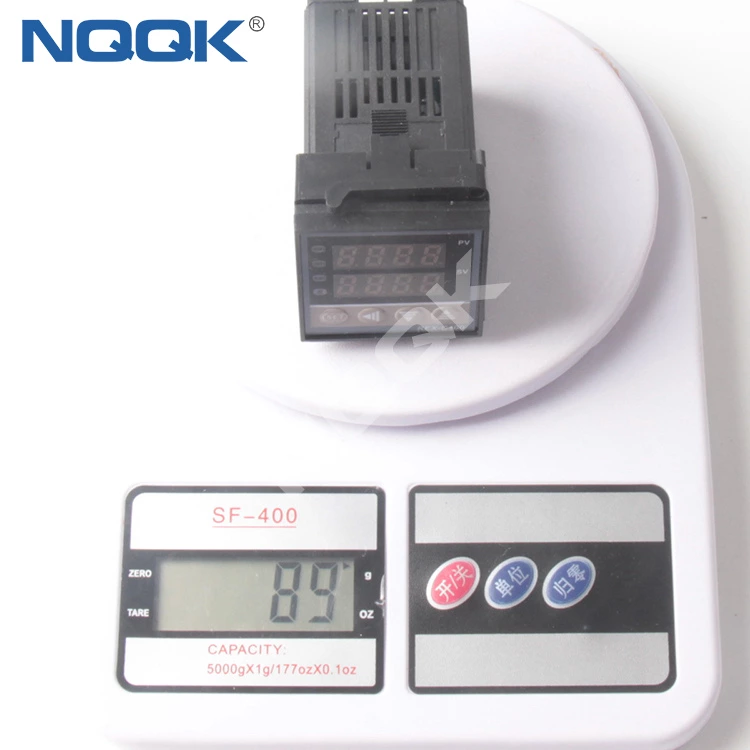

Weight abt.0.5Kg(CXTA type)





Model Name
1.Outline dimension: See the outline dimension picture  7.Second control output( OUT2) (Cooling side)
2.serial number No mark: when the control mode is F or D
3.Control Mode  M: Relay contact output T: Thyratron output
0:PID operation and auto calculating (reverse operation)  V: Voltage impulse output 8: Current output(IC 4-20mA)
1:PID operation and auto calculating(Forward operation) T: Thyratron output
4.Input mode:Refer to input Range Table 8: Current output(IC 4-20mA)
0:TC,RTD 8.First alarm(ALM1),
1:standard current 4~20mA,0~20mA 9.Second alarm (ALM2)
2:standard voltage:0~5V DC,1~5V DC N:no alarm
3:electronic sigral code:(Ω)  A: Upper-limit deviation alarm
5.femperature unit B: Lower-limit bias alarm
0:degree celsius (°C) C: Upper/lower limit bias alarm
1:Fahrenheit (F) D: alarm in area
6.First control output(OUT1) (Heating side)  E: Standby upper-limit bias alarm attached
M: Relay contact output  F: Standby lower-limit bias alarm attached
V: Voltage impulse output  G: Standby upper/lower limit bias alarm
T: Thyratron output  H: Upper-limit input value alarm
8: Current output(IC4-20mA)  J: lower-limit input alarm
G: Thyratron driving & triggering output K: Standby upper-limit input alarm attached
  L: Standby lower-limit input alarm attached



Extemal dimensin

REX-C100

CXT -3000

A

B

C

D

E

F

G

H

C100

CXTG

48

48

10

100

45

45

80

80
