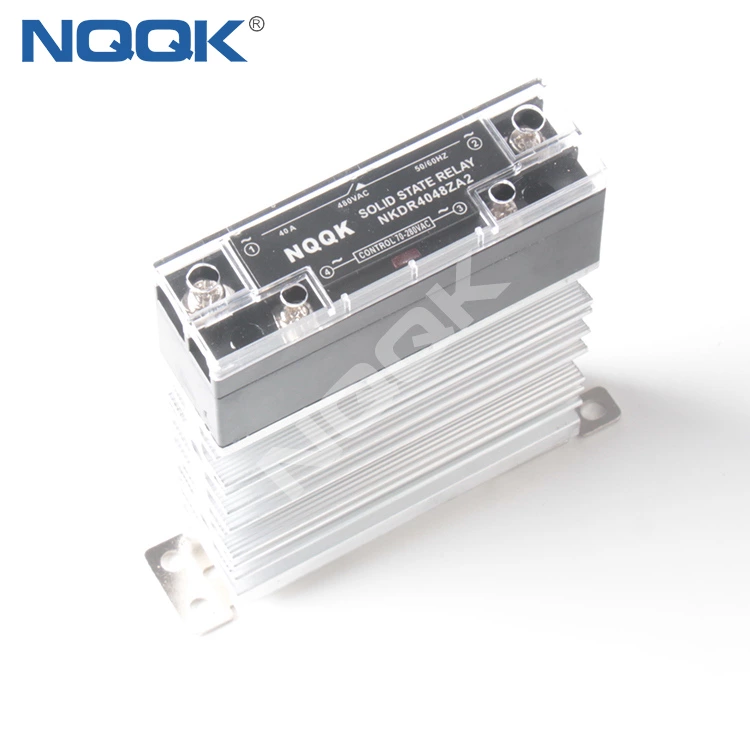

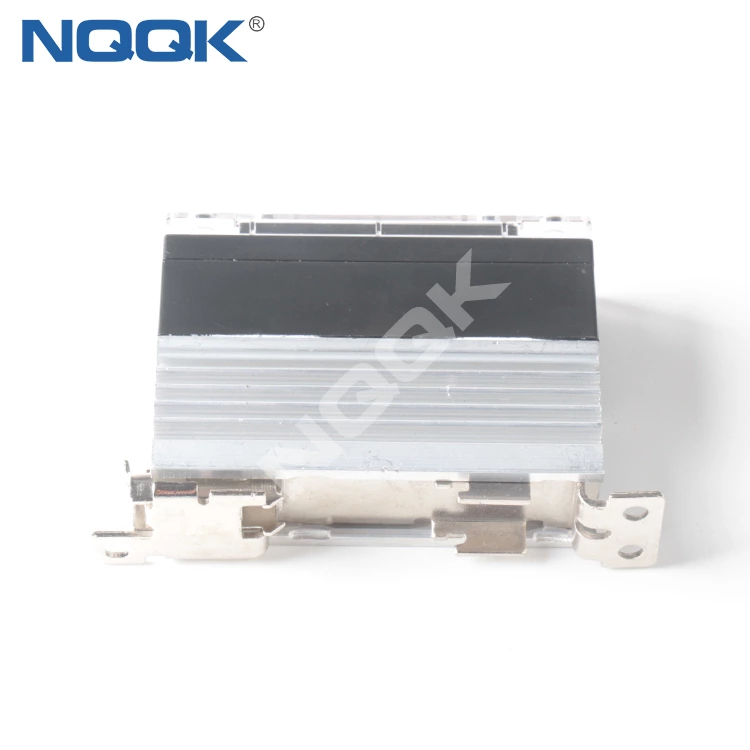

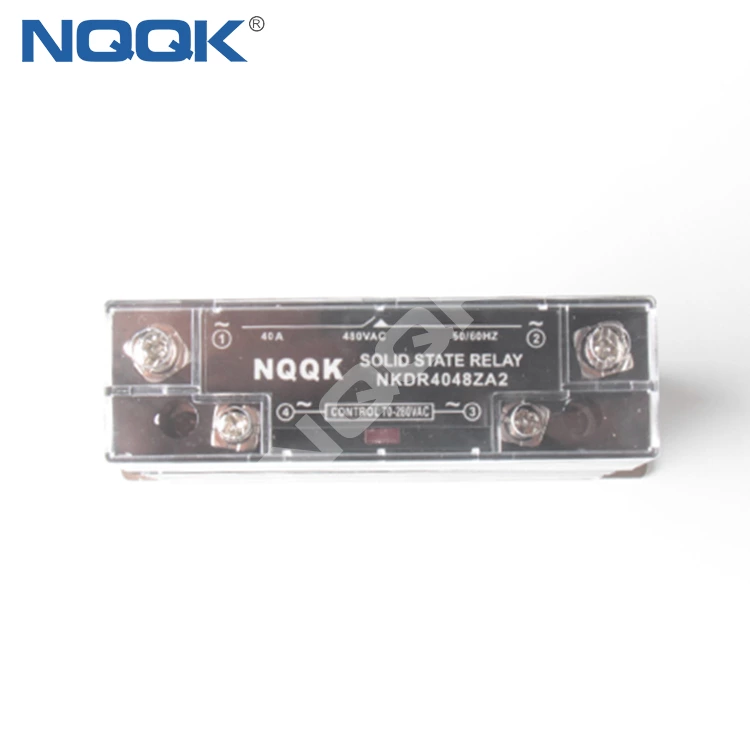

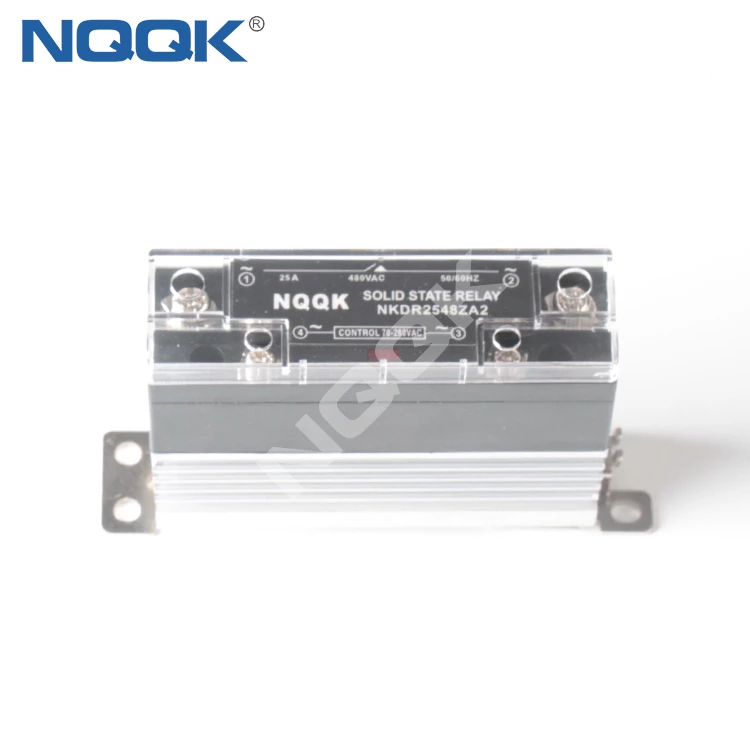

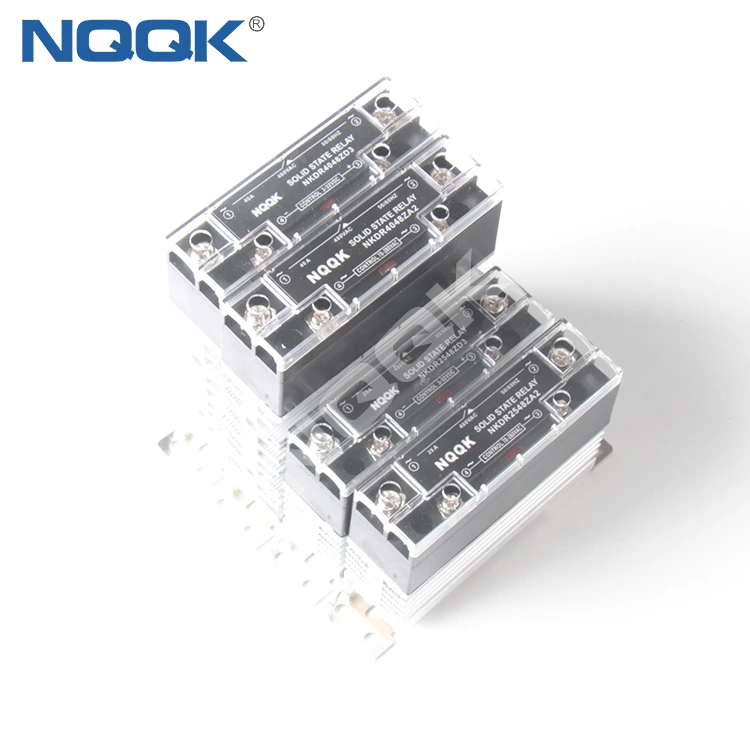

SSR-25DA 480V AC small solid state relay and heat sink DIN rail mounting heat sink
- Brand
- NQQK
DC/AC 10A 25A 40A led single phase slim ssr solid state relay
with heat sink
Product Description
Features:
Adjustable output voltage
Analog control signals: 4-20mA, 0-10V DC, variable resistor 220-560kOm
There isn’t contact bounce and sparks during switching
Removable finger proof cover available
Low power consumption
Panel mount
Models explanation:
NKDH.......40.......48.......ZD3
1 2 3 4
1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA– analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)
DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
