SSR-10VA-H 480VAC High pressure Single phase solid state relay voltage regulator
- Brand
- NQQK
OEM SSR Single phase direct current SSR solid state relay
Product Description
WE ARE FACTORY. SO WE CAN OEM ANY BRAND.
Introduction:
Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.
SSR-10VA-H
SSR-60VA-H
SSR-25VA-H
SSR-80VA-H
SSR-40VA-H
| Specifiction classification | SSR-10VA SSR-60VA SSR-25VA SSR-80VA SSR-40VA | |||
| Outine Dimension(mm) | 62.0Lx44.0Wx23.0H | |||
| Load Current | 10A,15A,25A,40A,60A,80A | |||
| Load Voltage | 24~380VDC(Basic model) | |||
| Control Voltage | VR:350KΩ/110VAC 500KΩ/220VAC | |||
| Control Current | / | |||
| On Voltage | ≤1.5V | |||
| Off leakage Current | ≤2mA | |||
| On-off time | / | |||
| Dielectric Strength | 2500VAC Importing exporting beef one heat release boards | |||
| Insulation Resistance | 1000MΩ/500VDC | |||
| Ambient Temperature | -30~+75°C | |||
| Mounting Mthods | Bolt Fixing | |||
| Working Station Indicator | / | |||

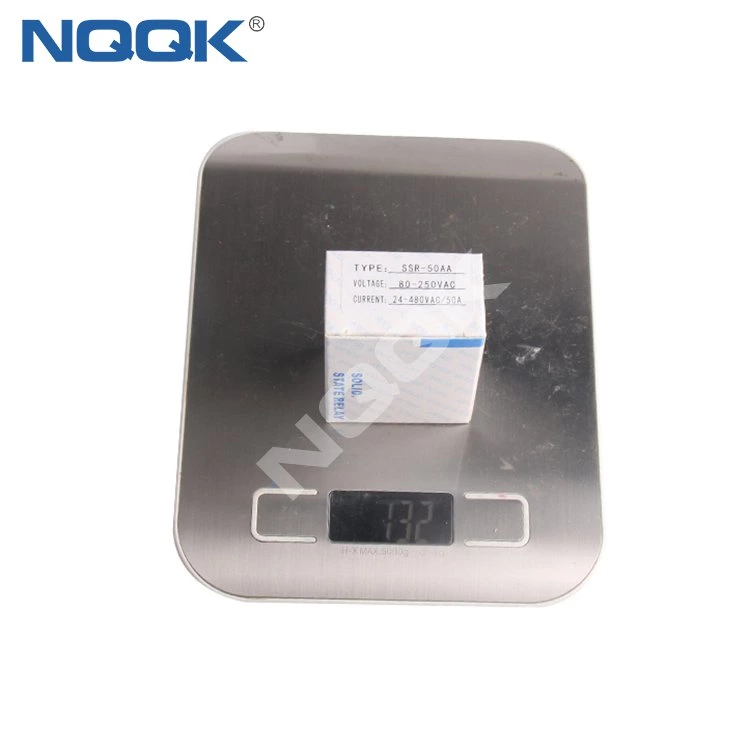

| Weight | 132g | |||
380VAC 0 ~ 10VDCOEM SSR-10DA 10A DC/AC Single phase direct current SSR solid state relay OEM SSR-10DA 10A DC/AC Single phase direct current SSR solid state relay OEM SSR-10DA 10A DC/AC Single phase direct current SSR solid state relay OEM SSR-10DA 10A DC/AC Single phase direct current SSR solid state relay
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
FAQ
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: 1-2 years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide
customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Our Services
1. Your inquiry will be replied within 18 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality.
4. Freight forwarder: faster,safer, and convenient.
5. Quality: we have QC on each process.

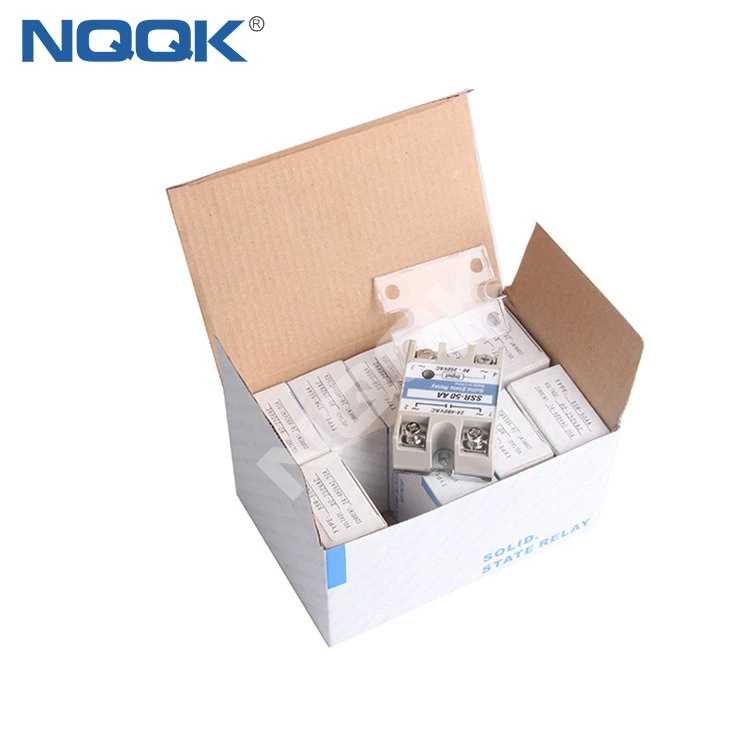

Packaging & Shipping
