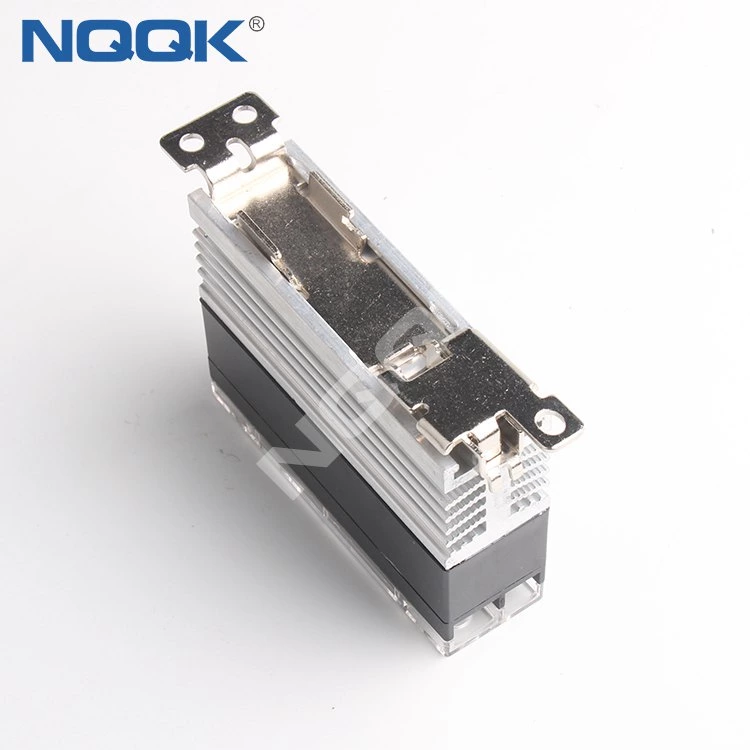

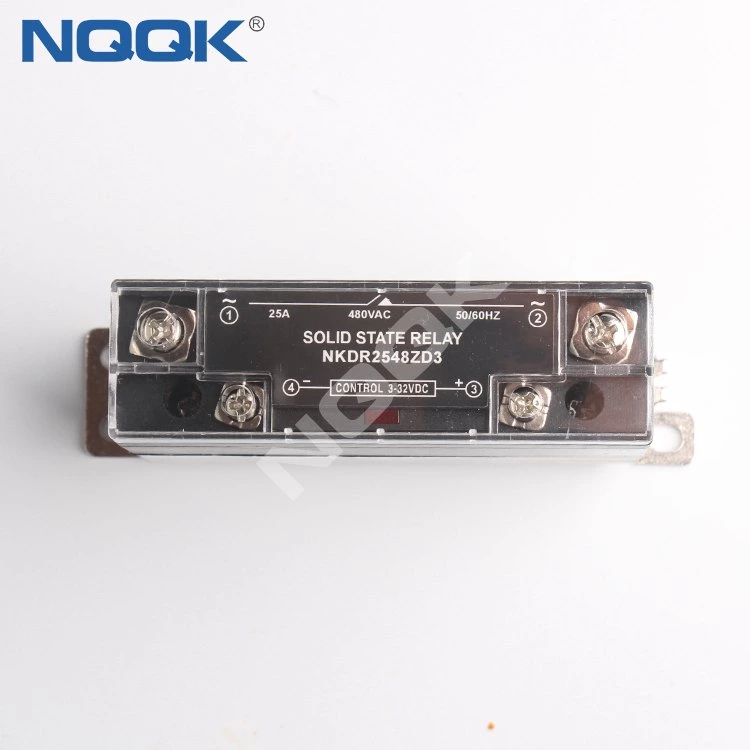

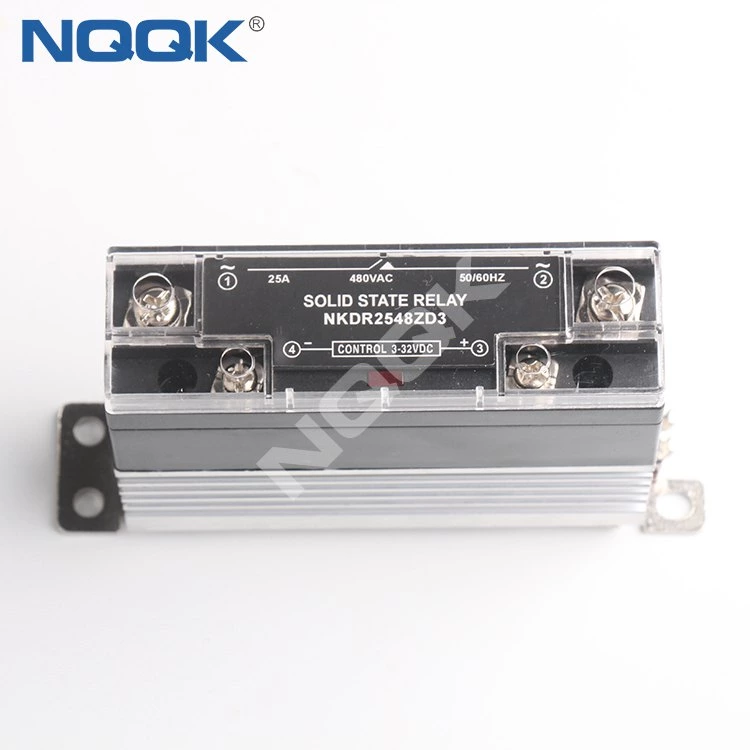

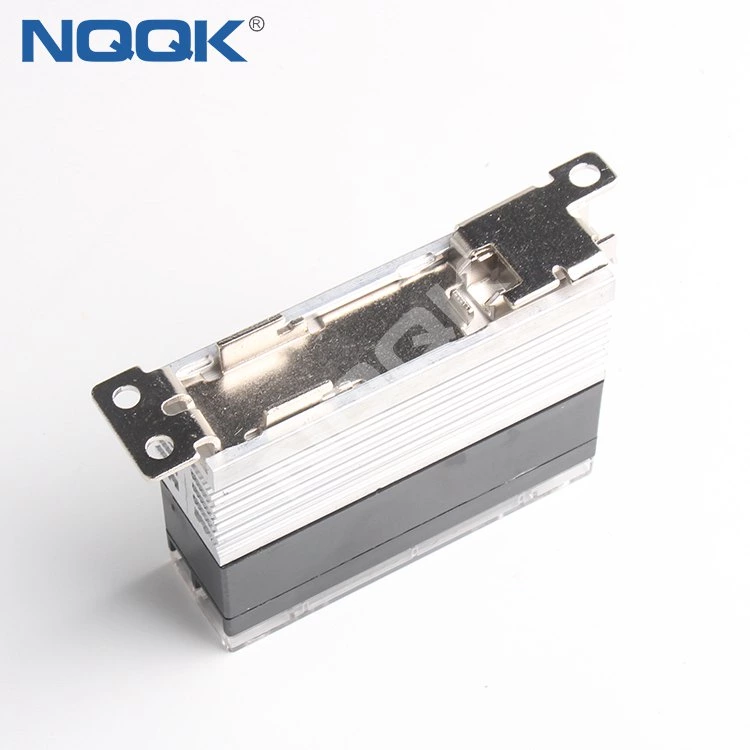

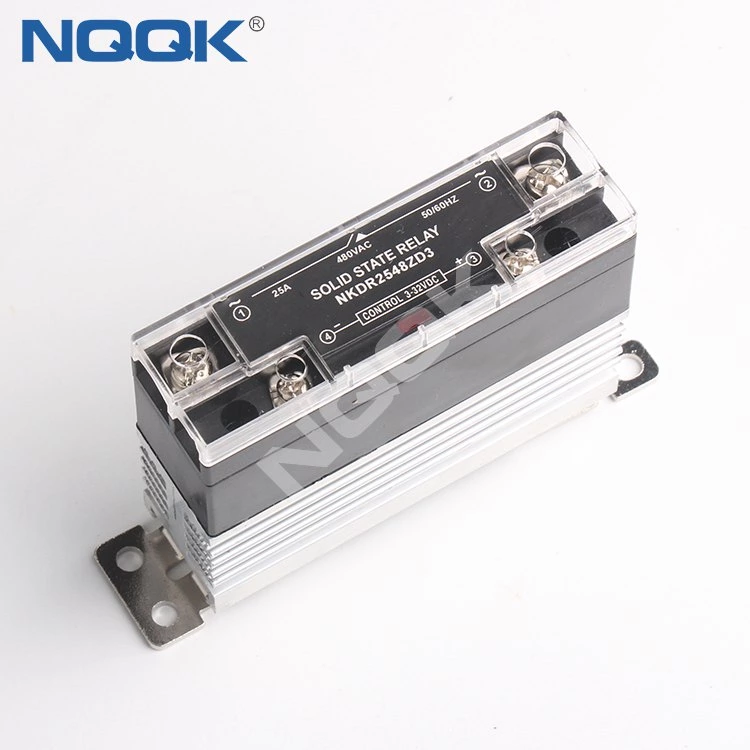

china manufacturers Competitive price AC control DC 25 A single phase slim solid state relay with heatsink
- Brand
- NQQK
china manufacturers AC to DC 25A single phase slim solid state relay with heatsink
Product Description
Features:
Adjustable output voltage
Analog control signals: 4-20mA, 0-10V DC, variable resistor 220-560kOm
There isn’t contact bounce and sparks during switching
Removable finger proof cover available
Low power consumption
Panel mount
Models explanation:
NKDH.......40.......48.......ZD3
1 2 3 4
1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA– analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)
china manufacturers AC to DC 25A single phase slim solid state relay with heatsinkchina manufacturers AC to DC 25A single phase slim solid state relay with heatsinkchina manufacturers AC to DC 25A single phase slim solid state relay with heatsinkchina manufacturers AC to DC 25A single phase slim solid state relay with heatsinkchina manufacturers AC to DC 25A single phase slim solid state relay with heatsinkchina manufacturers AC to DC 25A single phase slim solid state relay with heatsinkh heat sink
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
FAQ
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: 1-2 years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide
customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
