220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state relay

220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state relay20mA 0-10V 220VAC SSR solid state relay Product Description Single phase all isolation AC vol
Brand
NQQK

220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state relay20mA 0-10V 220VAC SSR solid state relay



Product Description

Single phase all isolation AC voltage regulating module, SSR 4-20mA,0-10V,NEW product



Descriptions:
S-DTY series intelligent single-phase ac power voltage regulator module designed by single-chip microcomputer, is a high precision products independent developed by our factory, it solved the uneven products on the present market, such as signal input inaccuracy, unstable power adjusting, large error,etc.



Principle:
This module has the phase shift voltage regulating,cycle wave power regulating, PWM adjusting these three functions, internal combined phase shift trigger circuit, a one-way or two-way thyristor and power supply circuit into one product, automatic or manual adjustment to change the voltage on the load, to adjust the output power.

Input and output of the module is opto-isolated, help weak voltage to achieve control of high voltage, by changing voltage of the input signal to control output load power, the input impedance is high, can be connected to computer,digital program-controlled circuit or similar interfaces direct by D/A converter,is very convenient to achieve the infinite adjustment of output load voltage and power.



Application:
It is widely used in lighting equipment,temperature control equipment,Ac motor soft start,ac train wave speed control and other power automatic adjustment occasions.


Category:
single-phase 220V and single-phase 380V;
current are rated: 10A,25A,40A, 60A,80A,100A,120A,160A,200A,240A,300A,350A,400A.
if need bigger current,please use our intelligent single phase AC phase shift trigger module.

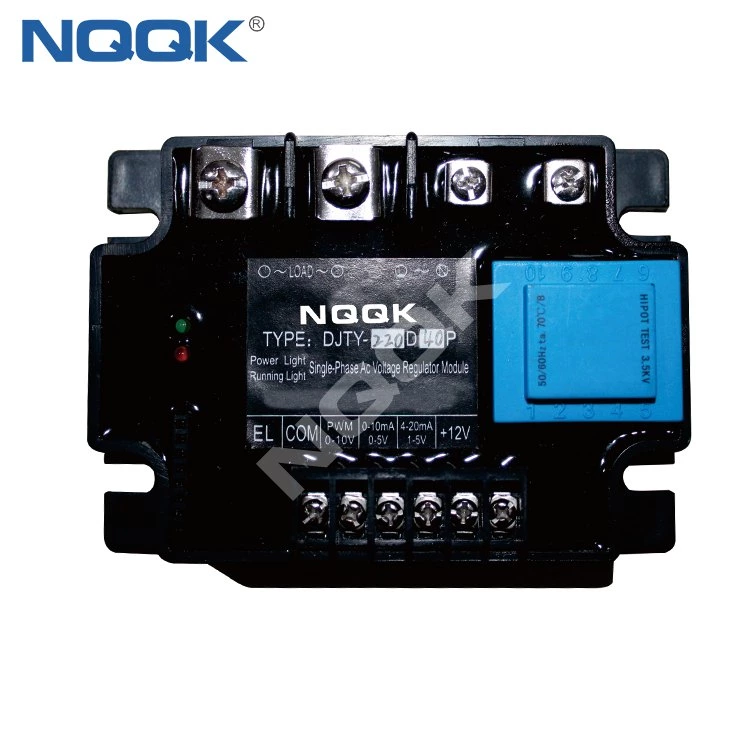

1 Module solid state relay.jpg2 Module solid state relay.jpg3 Module solid state relay.jpg4 Module solid state relay.jpg5 Module solid state relay.JPG

Curve:

SSR-4-20mA-0-10V-Solid-State-Relay (1).jpgSSR-4-20mA-0-10V-Solid-State-Relay (2).jpg



220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state relay 220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state relay 220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state relay 220VAC 20mA 10V COM 5V Single phase intelligent communicate Adjust power voltage Module solid state rela



Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery

FAQ

Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: 1-2 years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide

customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
