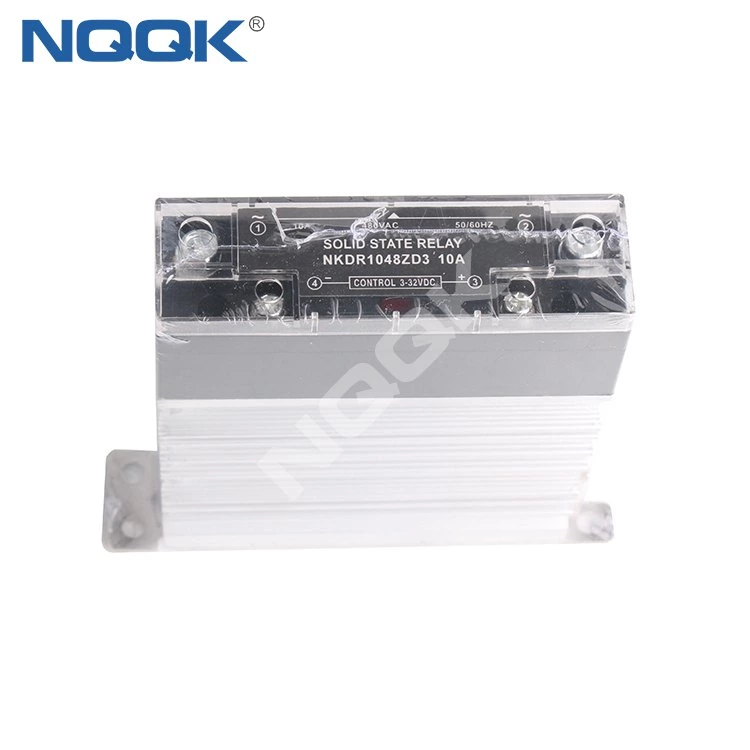

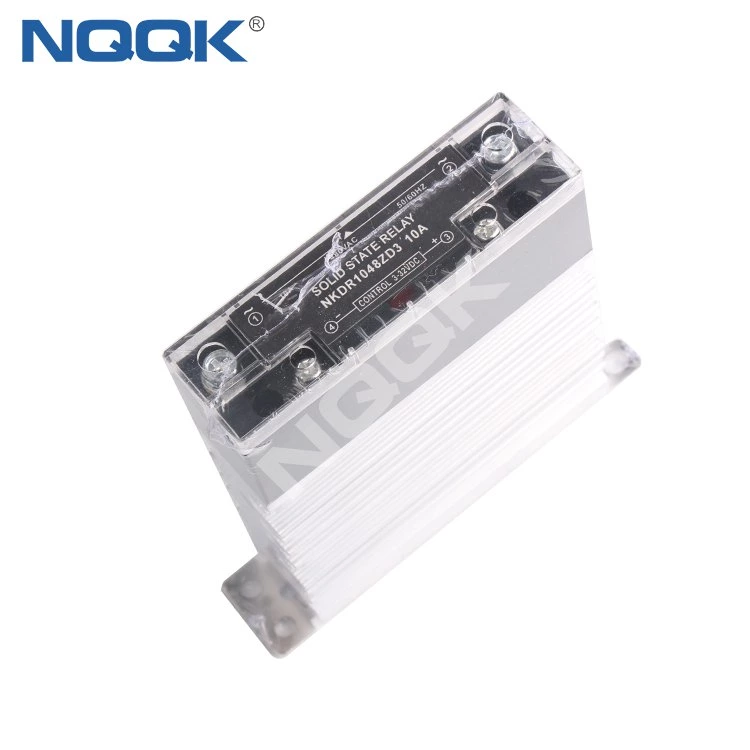

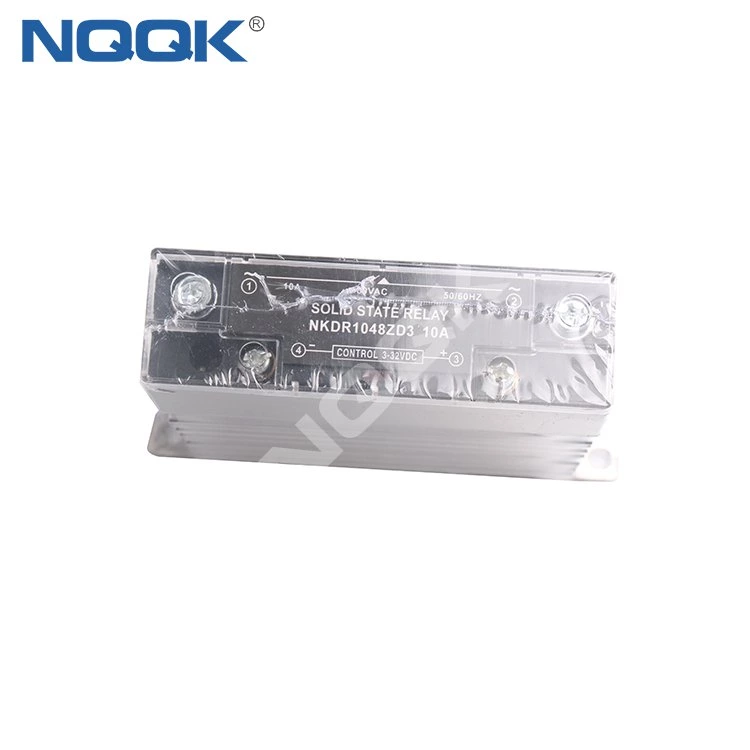

10A 32V DC to 480V AC single phase thin solid state relay with heat sink

10A 32V DC to 480V AC professional made single phase Ultra thin solid state relay with heat sink Product Description Features: Adjustable output voltage Analog control signals: 4-20mA, 0-10V DC, v
Brand
NQQK

10A 32V DC to 480V AC professional made single phase Ultra thin solid state relay with heat sink



Product Description



Features:
Adjustable output voltage
Analog control signals: 4-20mA, 0-10V DC, variable resistor 220-560kOm
There isn’t contact bounce and sparks during switching
Removable finger proof cover available
Low power consumption
Panel mount



Models explanation:

NKDH.......40.......48.......ZD3

    1            2         3         4

1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA– analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)





1 10A 480V relay.JPG2 10A relay.JPG3 10A relay.JPG



3 slim solid state relay.JPG4 slim solid state relay.JPG5 slim solid state relay.JPG6  slim solid state relay.JPG7 slim solid state relay.JPG8 slim solid state relay.JPG9 slim solid state relay.JPG



DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink DC/AC 10A 40A led single phase slim ssr solid state relay with heat sink







Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
