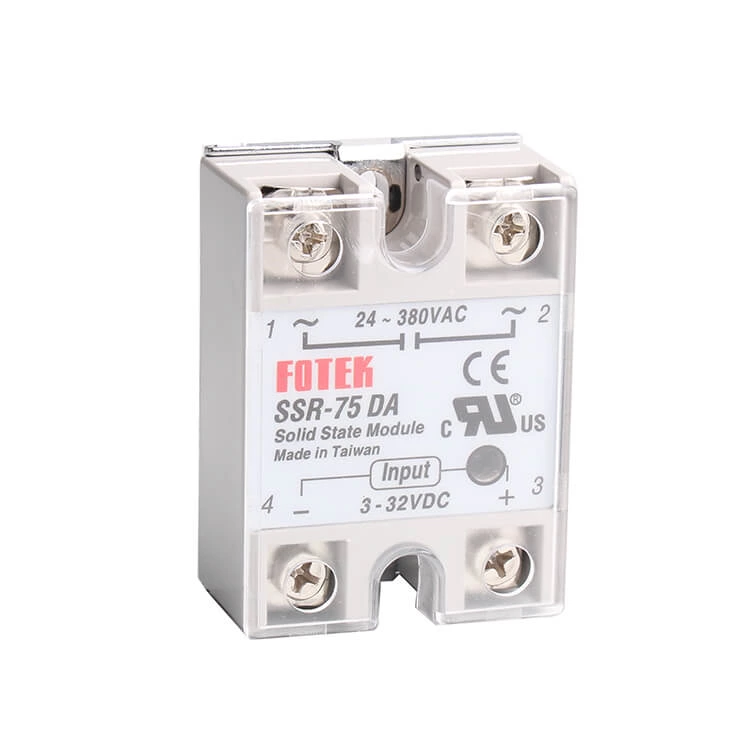

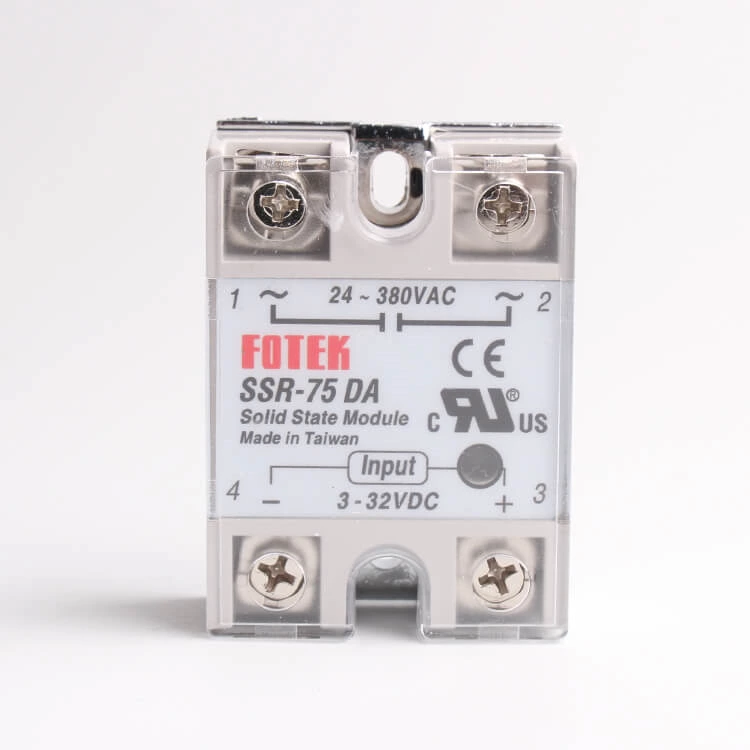

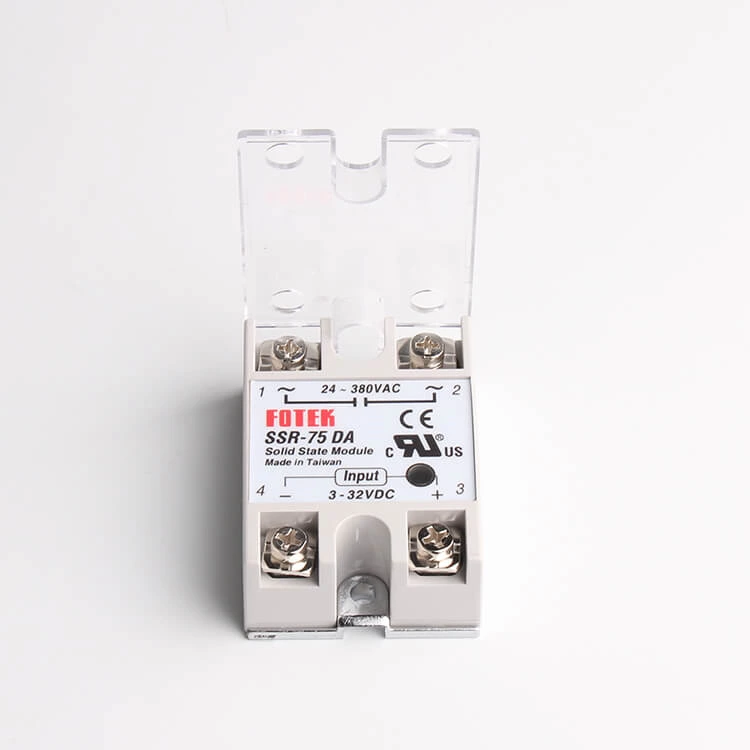

SSR-75DA 75A DC/AC Single Phase Direct Current SSR Solid State Relay

SSR-75DA 75A DC/AC Single Phase Direct Current SSR Solid State Relay Product Description Introduction: Solid state relay (SSR) is an electronic switching device that switches states when an extern
Brand
NQQK

SSR-75DA 75A DC/AC Single Phase Direct Current

SSR Solid State Relay



Product Description

Introduction:

Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.



SSR-10DA

SSR-50DA

SSR-15DA

SSR-60DA

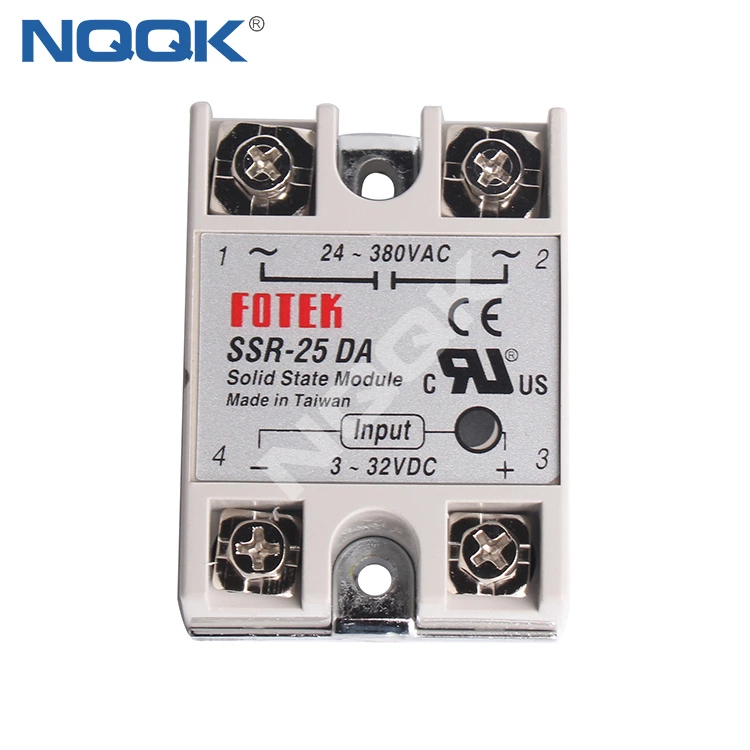

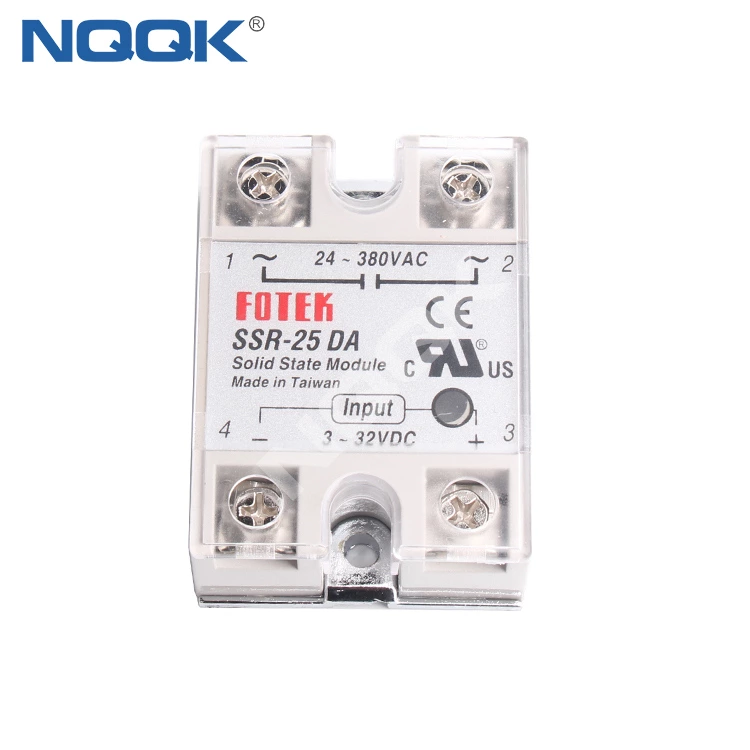

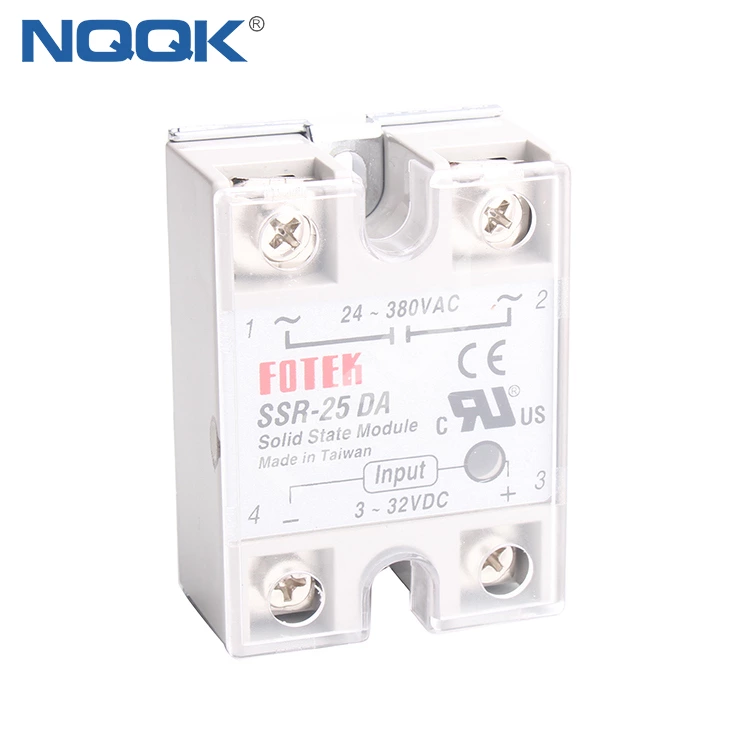

SSR-25DA

SSR-75DA

SSR-40DA

SSR-90DA



Specifiction classification SSR-10DA  SSR-50DA  SSR-15DA  SSR-60DA  SSR-25DA  SSR-75DA  SSR-40DA   SSR-90DA
Outine Dimension(mm) 62.0Lx44.0Wx23.0H
Load Current 10A,25A,40,50A,60A,75A,80A,90A
Load Voltage 24-380VDC(Basic model)
Control Voltage 3-32VDC
Control Current DC3-25mA
On Voltage ≤1.5V
Off leakage Current ≤2mA
On-off time ≤10mS
Dielectric Strength 2500VAC
Insulation Resistance 1000MΩ/500VDC
Ambient Temperature -30~+75°C

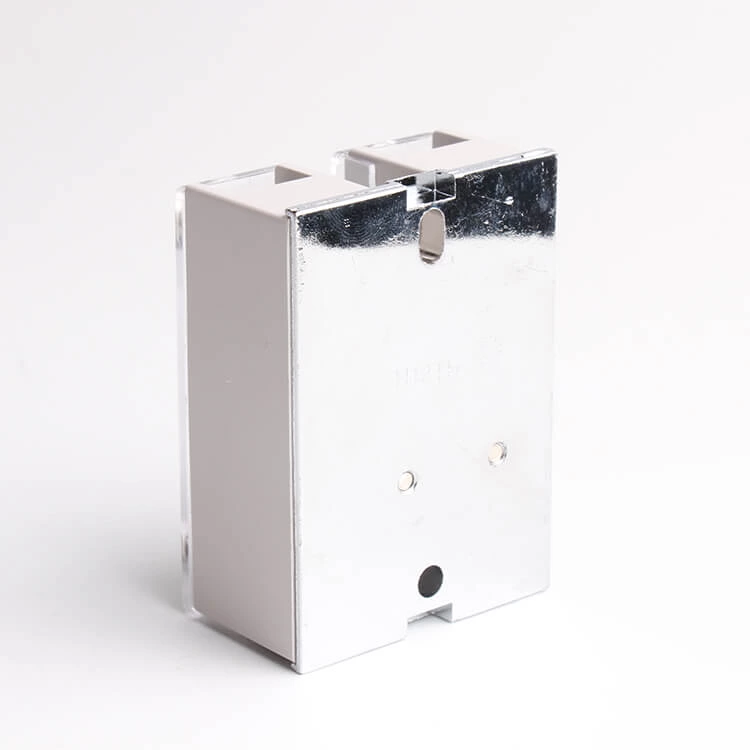

Mounting Mthods Bolt Fixing
Working Station Indicator LED
Weight 132g

Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery

FAQ

Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: 1-2 years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide

customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
