NKDH8023DD3 40A 220v DC to 480V AC Single Phase switching at zero crossing solid state relay

40A solid state relay

Brand
NQQK

40A 220V DC to 480V AC Single Phase switching at zero crossing

solid state relay



Product Description

Introduction:

Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

Features:

  • DC control voltage 3~32Vdc
  • MOSFET output
  • Photo isolation
  • Dielectric strength 2500V
  • Long service life
  • Panel mount
  • There isn’t contact bounce and sparks during switching
  • Low power consumption



Models explanation:



    NKDH........40.......48.....ZD3

           1             2         3       4

1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA – analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)

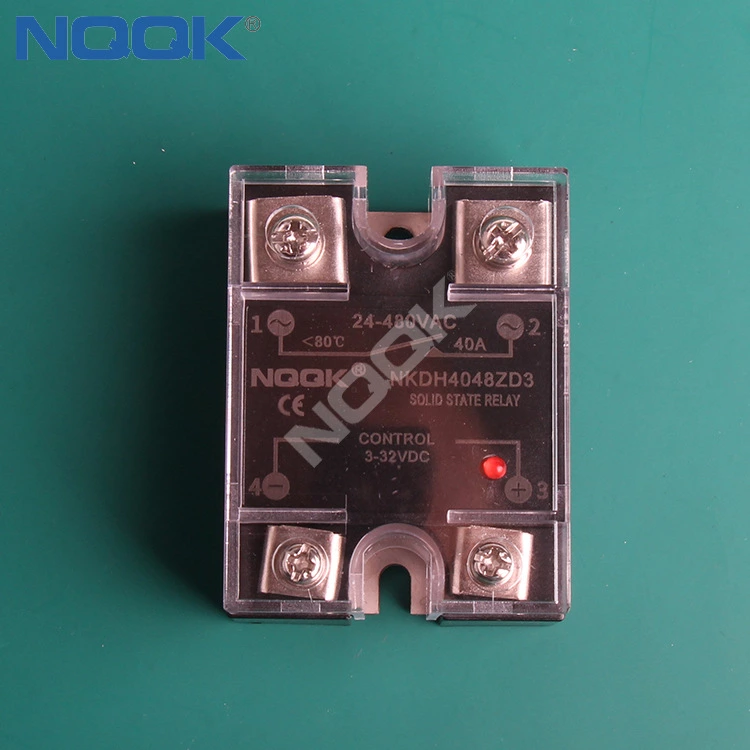

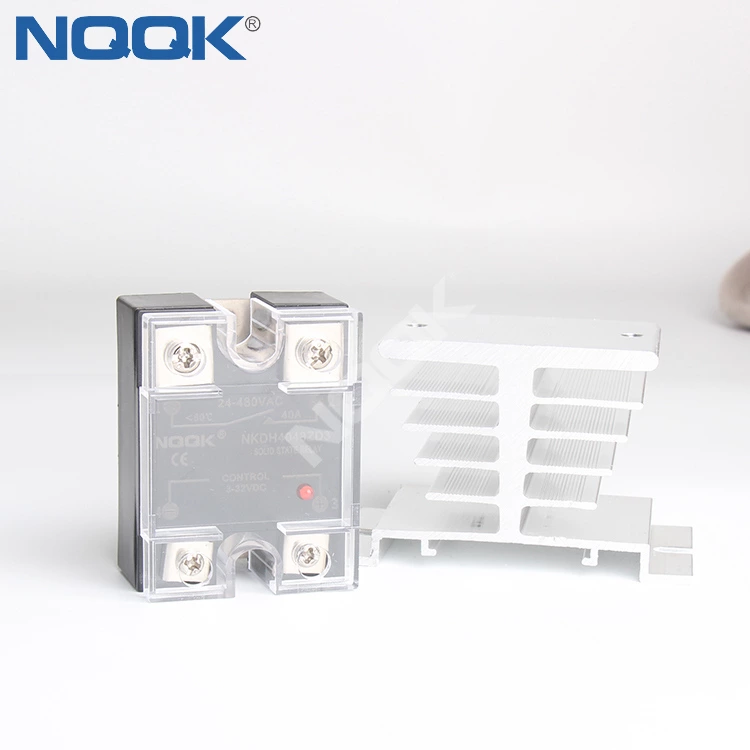

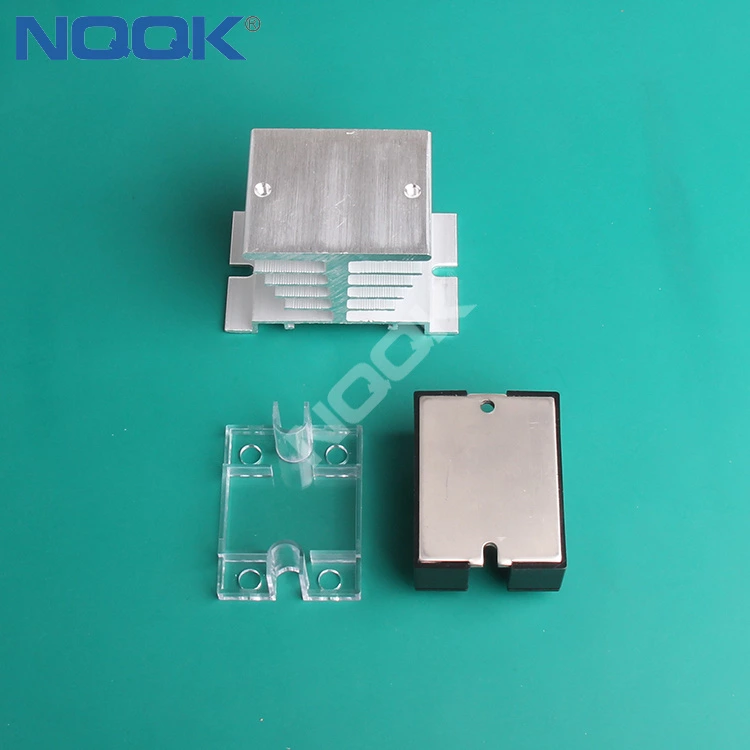

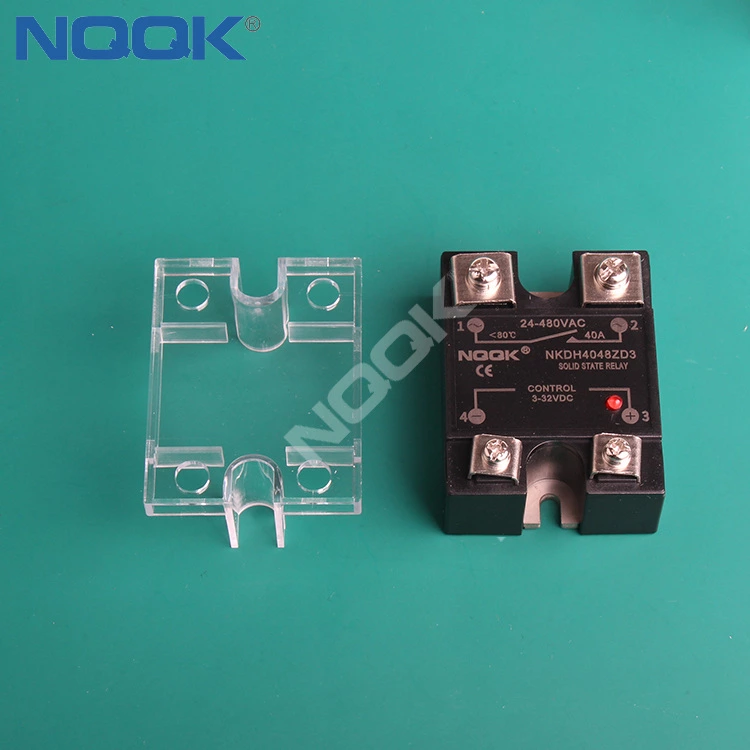

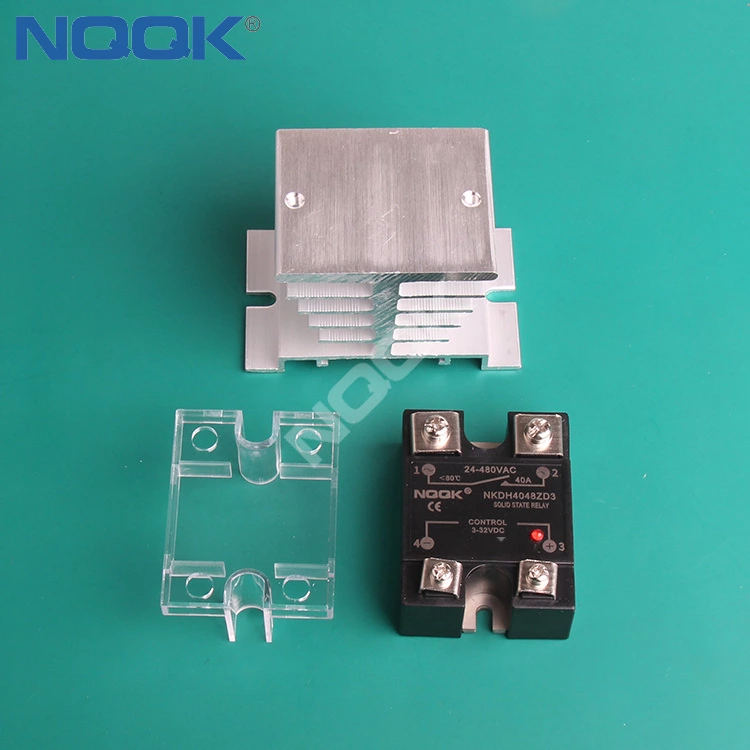

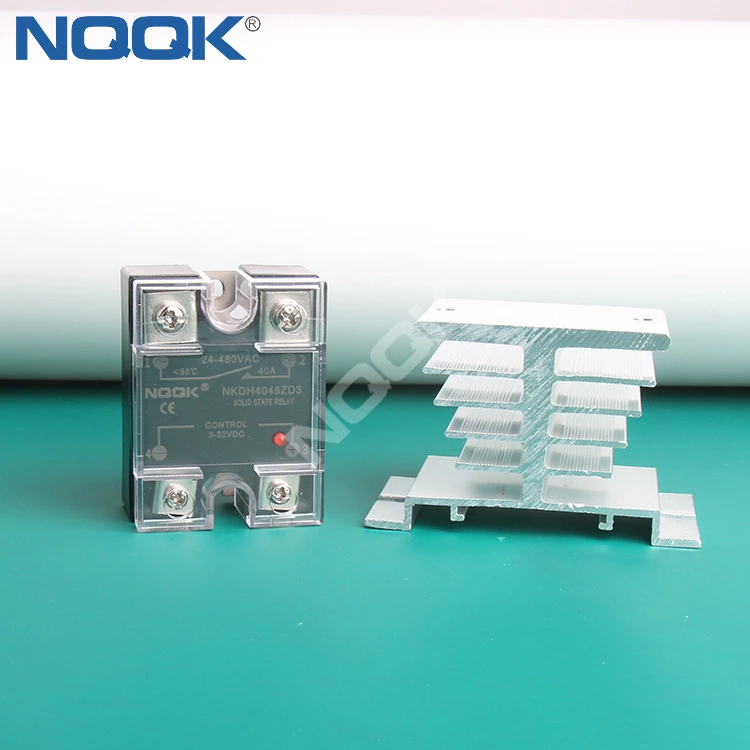

 1  NKDH4048ZD3.JPG2  NKDH4048ZD3.JPG3  NKDH4048ZD3.JPG4  NKDH4048ZD3.JPG5 NKDH4048ZD3.JPG6  NKDH4048ZD3.JPG

Types:

Load voltage Control voltage Rated current
10A 25A 40A 60A
220VDC 3-32 VDC NKDH1023DD3 NKDH2548DD3 NKDH4048DD3 NKDH6048DD3



Load voltage Control voltage Rated current
80A 100A 120A 200A
220VDC 3-32 VDC NKDH8023DD3 NKDH10048DD3 NKDH12048DD3 NKDH20048DD3



Single phase DC-DC Solid State Relay SSR



Model NKDH2523DD3
Load current 25
Load voltage 24-220VDC
Control voltage 3-32VDC
Control current DC5-25mA
On state voltage drop ≤2.3V
On state leakage current ≤2mA
Off state time ≤10mS
Dielectric strength 2000VAC
Insulation resistance 1000MΩ500VDC
Ambient temperature -30°c ~ 75°c
Mounting method bolting
Indicator LED
Weight 135g
