NKDH4038VR 40A 220v DC to 480V AC Single Phase switching at zero crossing solid state relay

DC40A solid state relay

 NKDH4038VR 40A 220v DC to 480V AC Single Phase switching at zero crossing solid state relay

Product Description


Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.


  • DC control voltage 3~32Vdc
  • MOSFET output
  • Photo isolation
  • Dielectric strength 2500V
  • Long service life
  • Panel mount
  • There isn’t contact bounce and sparks during switching
  • Low power consumption

Models explanation:



           1             2         3       4

1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA – analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)

 Single phase DC-DC Solid State Relay SSR

Model  NKDH4038VR
Load current 40
Load voltage 0-380VAC
Control current 470-560
On state voltage drop ≤2.3V
On state leakage current ≤2mA
Off state time ≤10mS
Dielectric strength 2000VAC
Insulation resistance Ω2W
Ambient temperature -30°c ~ 75°c
Mounting method bolting
Indicator LED
Weight 135g

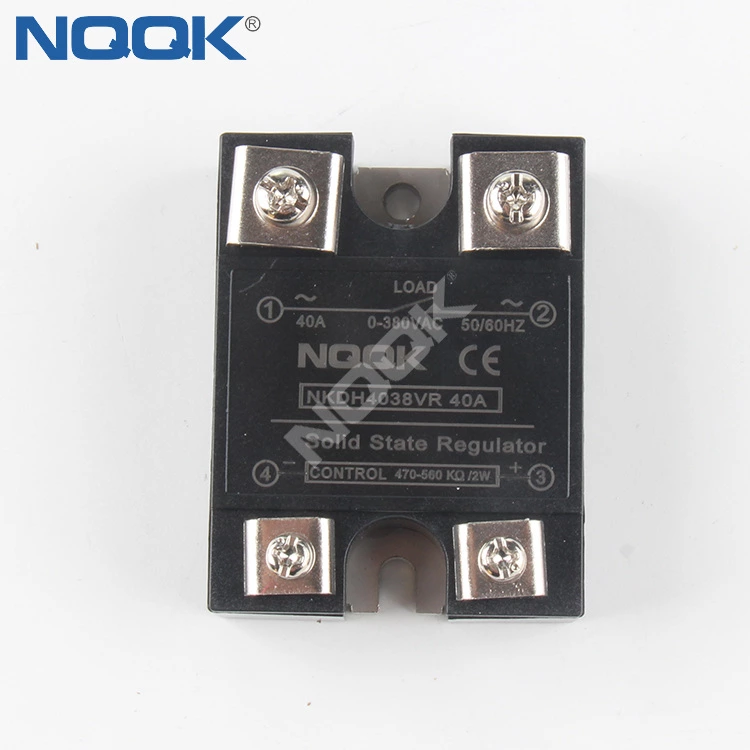

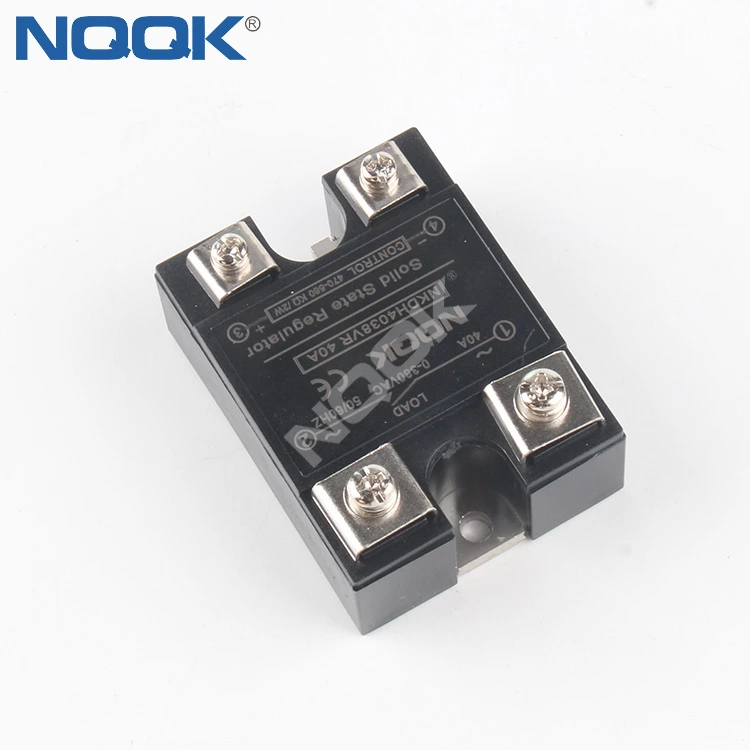

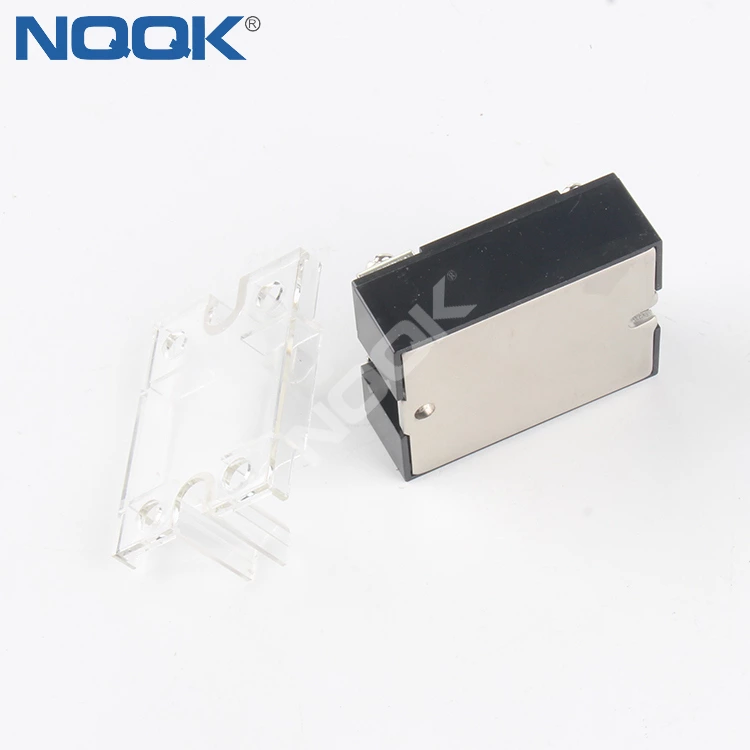

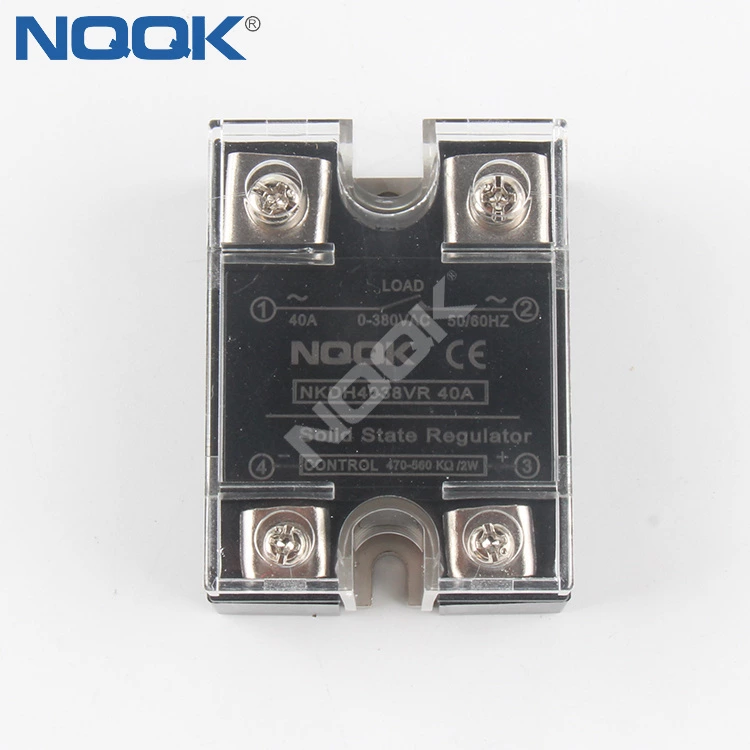

1 NKDH4038VR 40A.JPG2 470-560K 2W.JPGIMG_8781.JPGIMG_8782.JPGIMG_8783.JPG


single-pha 1  nqqk.jpgsingle-pha 2 nqqk.jpg


China Solid-State Relays CE certificate




Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: 1-2 years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide

customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
