500A 75 V DC CONTROL 32V DC Single Phase SSR NQQK Solid State Relay
500A 75 V DC CONTROL 32V DC Single Phase SSR NQQK Solid State Relay 500A 75 V DC CONTROL 32V DC Single Phase SSR NQQK Solid State Relay 500A 75 V DC CONTROL 32V DC Single Phase SSR NQQK Solid State Relay 500A 75 V DC CONTROL 32V DC Single Phase SSR NQQK Solid State Relay 500A 75 V DC CONTROL 32V DC Single Phase SSR NQQK Solid State Relay

500A LOAD 75 V DC CONTROL 32V DC

Single Phase SSR solid state relay



Product Description

Introduction:

Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.



Type: NK500D75D
Surge current:500A
Control voltage range: 3-30VDC
Load max voltage: 75VDC
Max input current:18mA
Must operation voltage:3VDC
Mustrelease voltage: 2VDC
Max off-state leakage current: 2mA
Response time: ≤20mS
Dielectric strength: 2500VAC
Operating temperature:-20℃ to 80℃
L-W-H(mm): 105x74x53mm
Weight: 450g

Max on-state voltage drop: only 0.05V

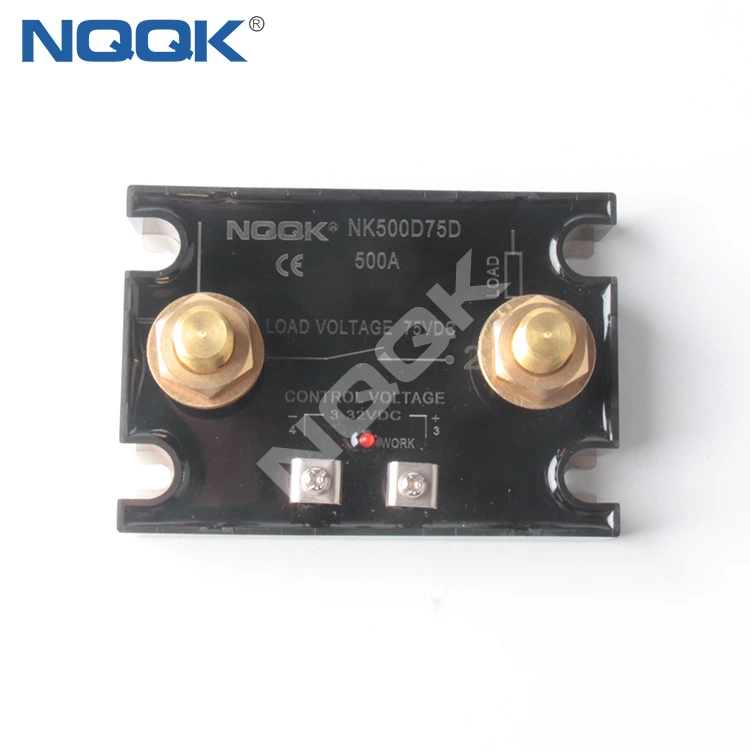

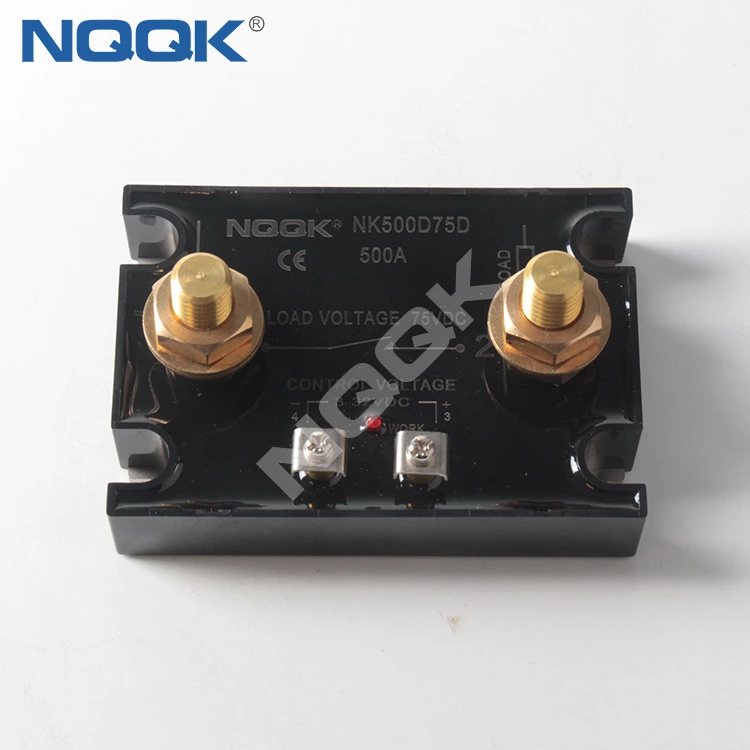

1G 500A DC SSR.JPG3G 500A DC SSR.JPG4G 500A DC SSR.JPG5G 500A DC SSR.JPG
