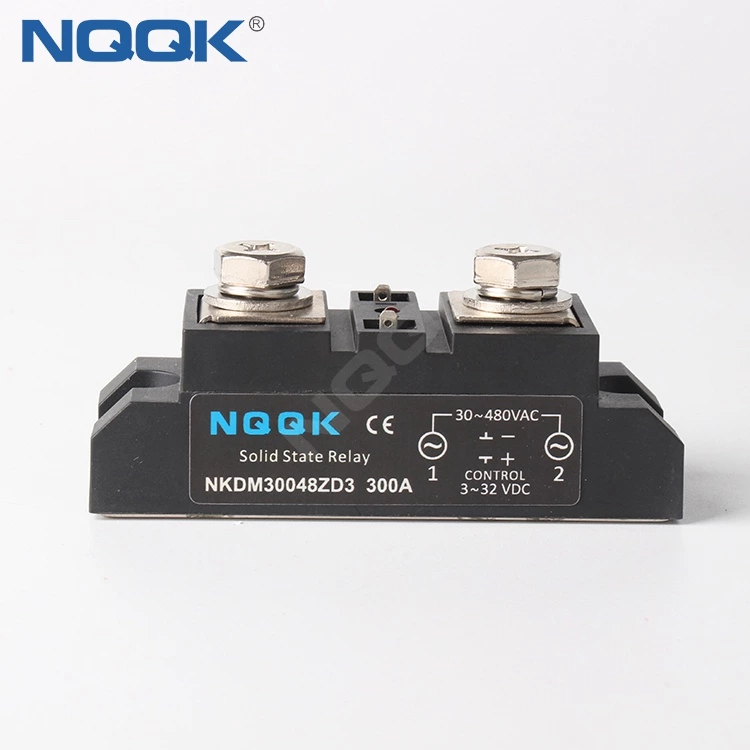

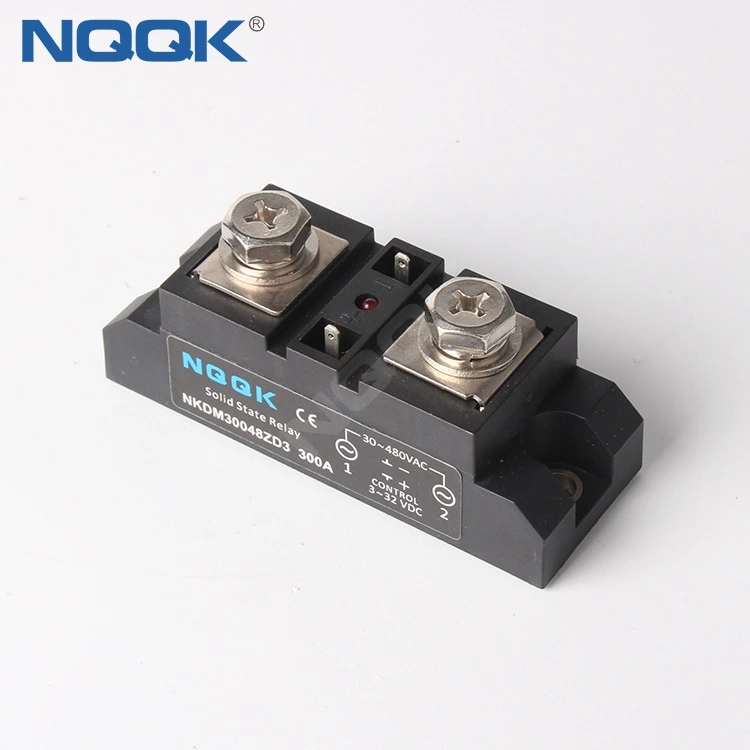

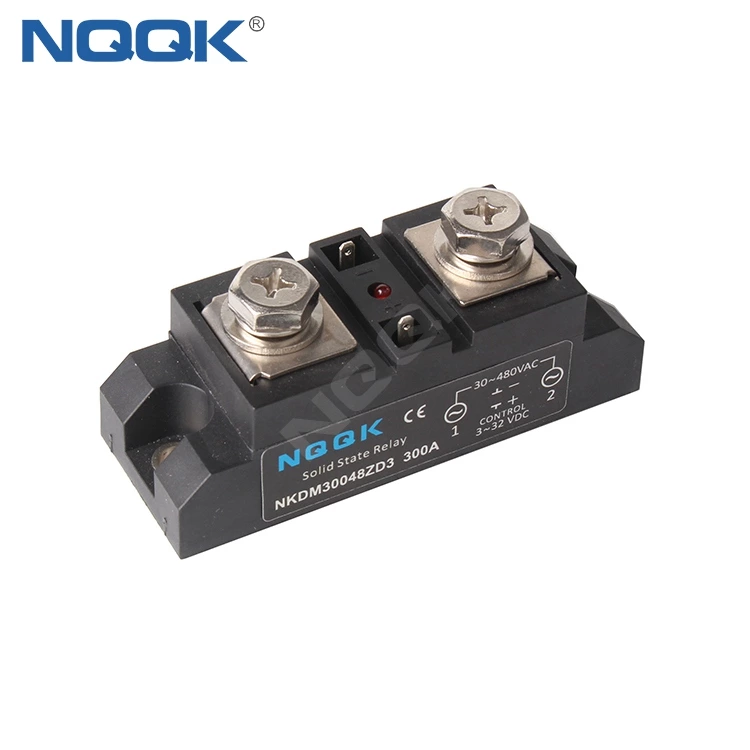

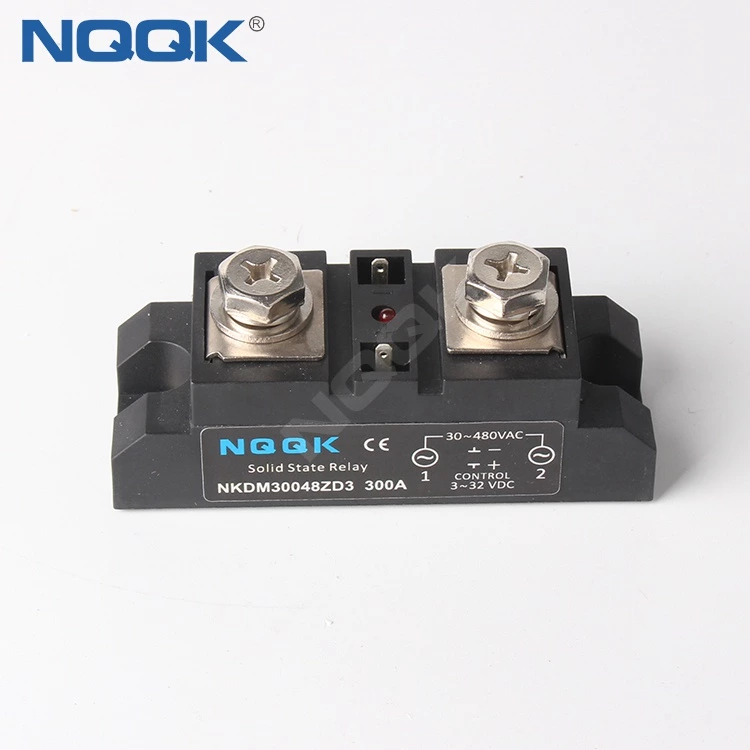

480V AC 32V DC 300A Industrial Class SSR Solid Stage Relay

480V AC 32V DC 300A Industrial Class SSR Solid Stage Relay
Brand
NQQK

Features:

● Dielectric strength 4000V

● Photo isolation

● Zero cross or random turn-on

● Control voltage 3-32V DC, 70-280V AC

● Low power consumption

● Panel mount

● LED indication

● Built-in RC


Models explanation:
NKDH......40......48.......ZD3
    1           2        3          4


1.

NKDH – single-phase solid state relay (10 – 120А)

NKDM – industrial class solid state relay (100 – 500А)

NKTH – three-phase solid state relay (10 – 120А)

NKTR – motor reversing solid state relay (10 – 40А)

2.
40 – load current 40А (10 – 500А)

3.
48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC

4.
ZD3 – control signal type(swithing mode)

VA – variable resistor 220-560кОм/2Вт (phase control)

LA – analog signal 4-20мА (phase control)

VD – analog signal 0-10V DC (phase control)

ZD – control voltage 10-30V DC (switching at zero crossing)

ZD3 – control voltage 3-32V DC (switching at zero crossing)

ZA2 – control voltagte 70-280V AC (switching at zero crossing)

DD3 – control voltage 3-32V DC (DC voltage switching)


Types:

Loda voltage  Control Signal  Rated current
100A 120A 150A 200A
480V AC  3-32V DC NKDM10048ZD3 NKDM12048ZD3 NKDM15048ZD3 NKDM20048ZD3
80-280V DC NKDM10048ZA2 NKDM12048ZA2 NKDM15048ZA2 NKDM20048ZA2



Loda voltage  Control Signal  Rated current
250A 290A 400A 500A
480V AC  3-32V DC NKDM25048ZD3 NKDM29048ZD3 NKDM40048ZD3 NKDM50048ZD3
80-280V DC NKDM25048ZA2 NKDM29048ZA2 NKDM40048ZA2 NKDM50048ZA2


Technical specifications:

Model NKDMxxxxxZD3 NKDMxxxxxZA2
Load voltage 24-480VAC
Control voltage 3-32V DC 80-280V DC
Current consumption in control circuit 3-25mA ≤12mA
Voltage ON/OFF 3V DC/1.5V DC 80V AC/50V AC
Peak voltage  800V AC
Voltage drop in load circuit ≤1.5V AC
Leakage current(off-state) ≤10mA
Switching time ≤10mS
LED indication yes
Dielectric strength 2500V AC (1min)
Insulation resistance 500MΩ with 500V DC
Operating temperature -20°c ~ +75°c
Relative Humidity ≤95%(non-condensing)
Dimensions 94x25x38mm(100A,120A)                     94x34x38mm(150-290A) 115x53x53mm(400A,500A)

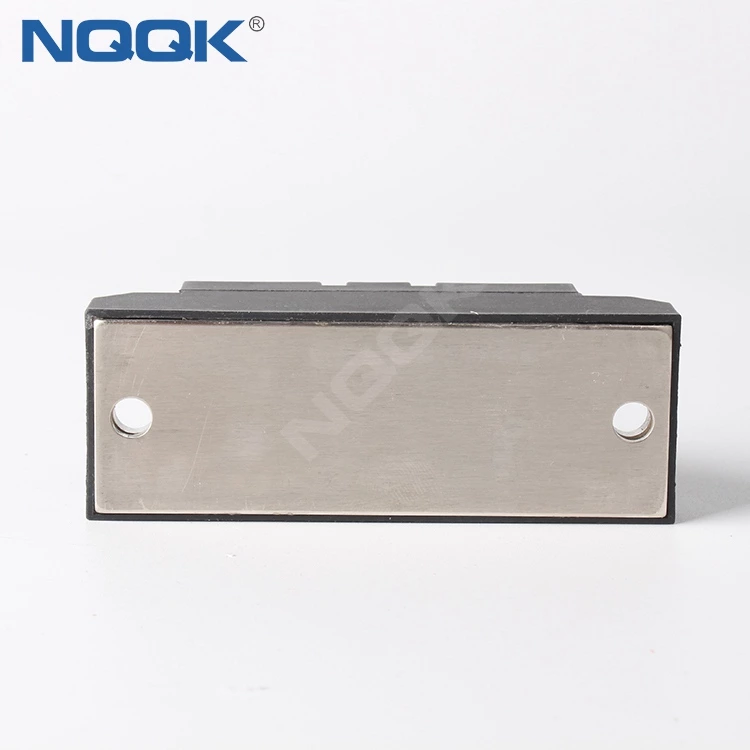

Mounting method Screws on
Weight ≤300g

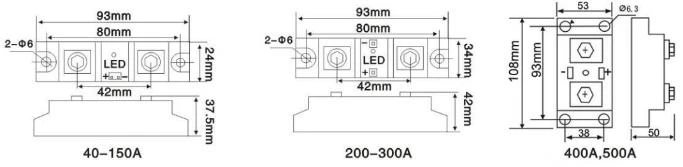

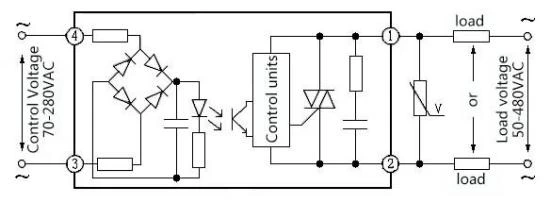

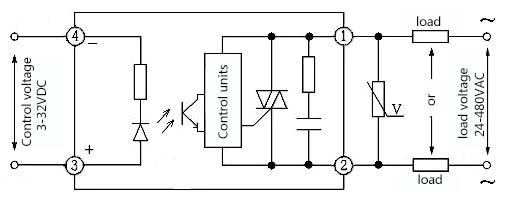

Outline dimensions & Wiring diagram:

480V AC 32V DC 300A Industrial Class SSR Solid Stage Relay

SYDMxxxxxZD3

480V AC 32V DC 300A Industrial Class SSR Solid Stage Relay

SYDMxxxxxZA2

480V AC 32V DC 300A Industrial Class SSR Solid Stage Relay

480V AC 32V DC 300A Industrial Class SSR Solid Stage Relay
