10A Adjustable output voltage phase control solid state relay
AC to DC solid state relay
- Brand
- NQQK
380VAC 0 ~ 10VDC 100% 120A Adjustable output voltage phase control SSR solid state relay
Product Description
Introduction:
Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.
Features:
-
Dielectric strength 4000V
-
Photo isolation
-
Zero cross or random turn-on
-

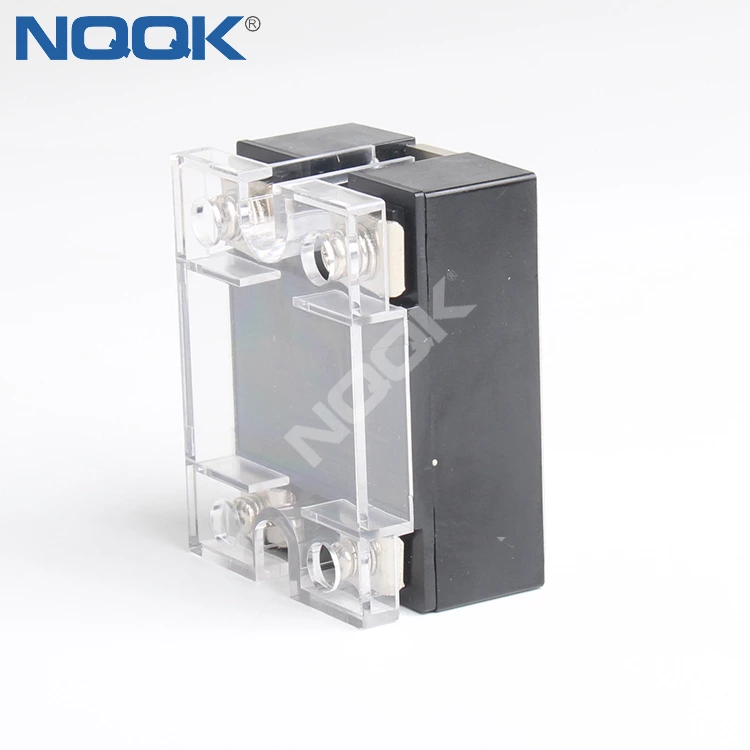

Removable finger proof cover available
-
Double SCR AC output
-
Panel mount
-
DC or AC control
-
Built-in RC
Models explanation:
NKDH......40......48.......ZD3
1 2 3 4
1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA – analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)
Technical specifications:
| Model | NKDHxxxxxLA |
| Load voltage | 24-480VAC |
| Load signal | 4-20mA |
| Leakage current(off-state) | ≤1.5mA |
| Peak voltage | 1000V AC |
| Voltage drop | ≤1.6V AC |
| Switching time | ≤10mS |
| LED indication | no |
| Dielectric strength | 2500VAC(1min) |
| Insulation resistance | 500MΩ with 500V DC |
| Operating temperature | -30°c ~ +75°c |
| Relative Humidity | ≤95%(non-condensing) |
| Dimensions | 57.4x44.8x32mm |
| Mounting method | Screws on |
| Weight | ≤135g |
Outline dimensions & Wiring diagram:
