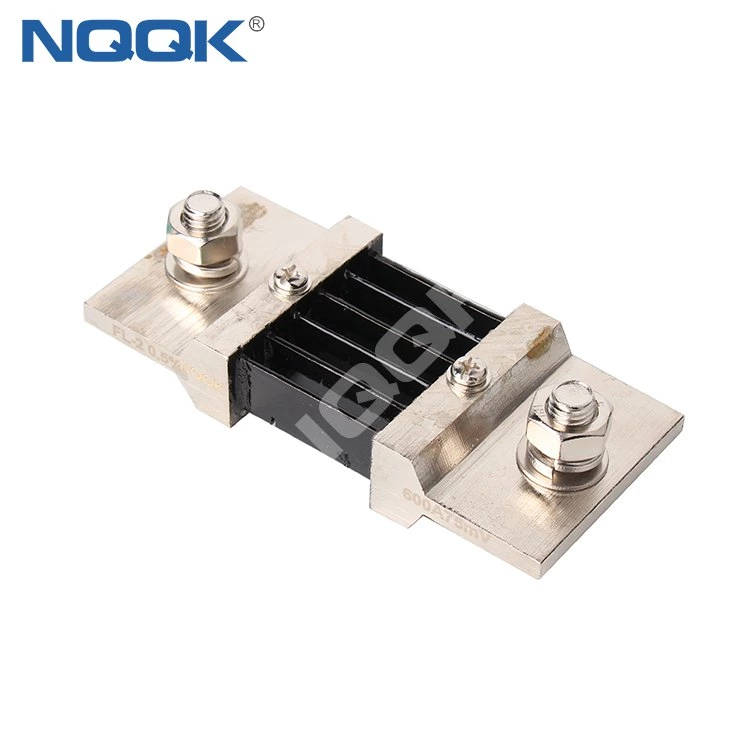

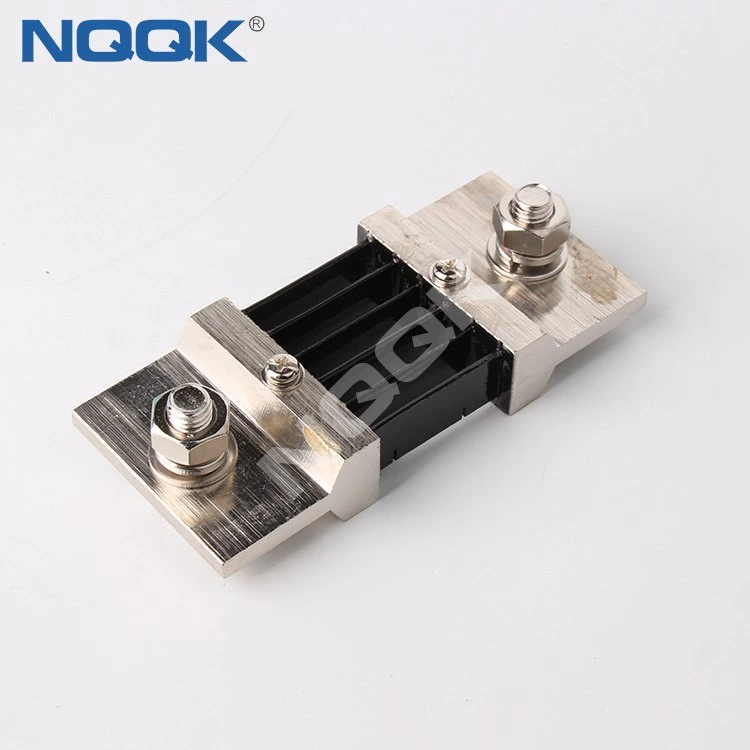

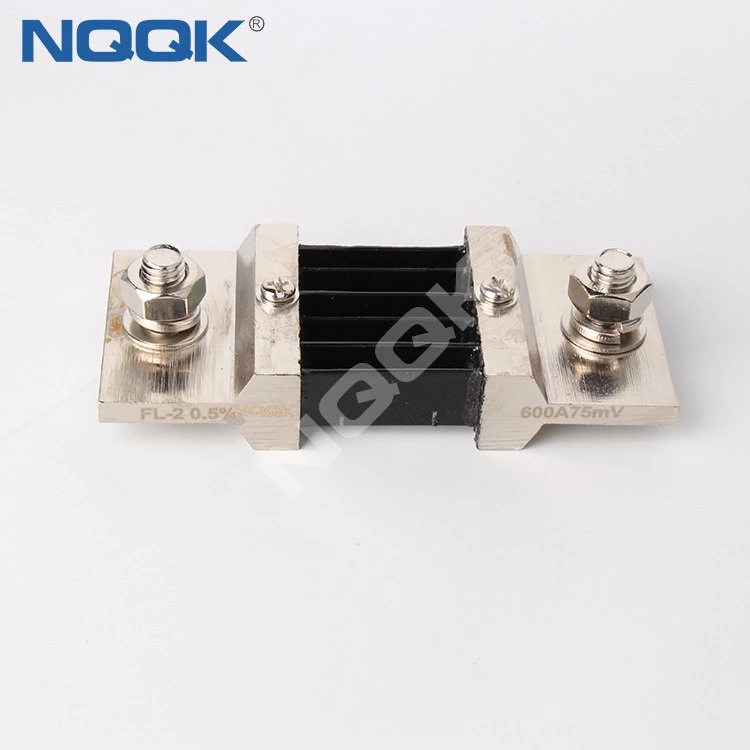

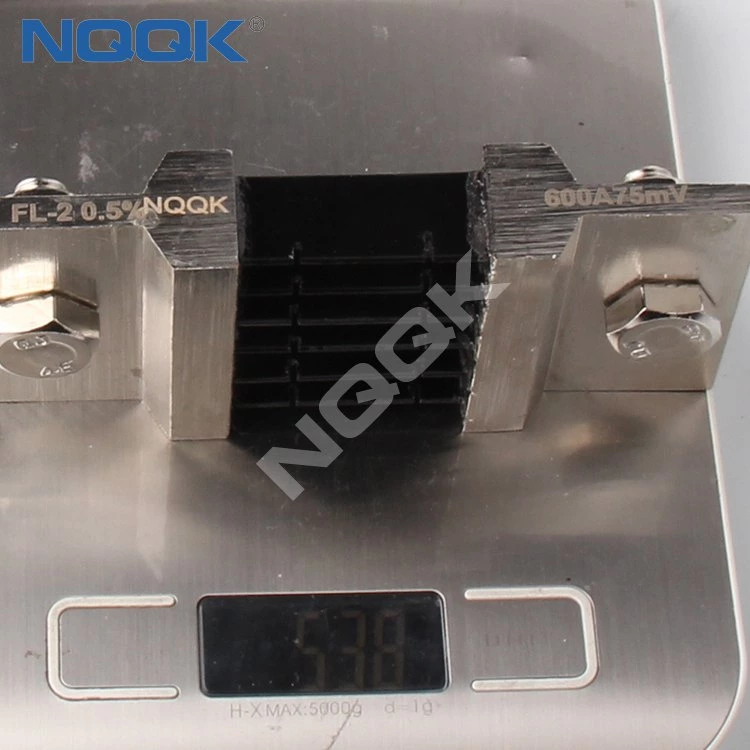

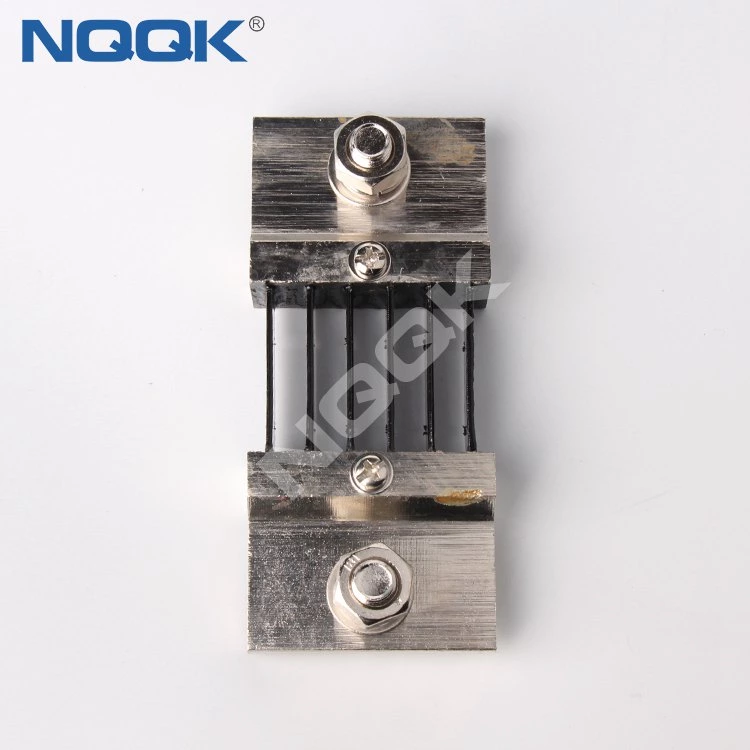

600A 75mV FL DC current shunt resistor

600A 75mV FL DC current shunt resistor Product Description NQQK’s 50mV and 100mV base-mounted current shunts are designed for measuring dc currents from 5A to 1200A. These precision shunts (+/-0.25%
Brand
NQQK

600A 75mV FL DC current shunt resistor

Product Description

NQQK’s 50mV and 100mV base-mounted current shunts are designed for measuring dc currents from 5A to 1200A. These precision shunts (+/-0.25% accuracy) connect directly to NQQK’s DCA5-20PC Series of dc ammeters. Installation is straightforward: simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. All models feature a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing for direct attachment to metal surfaces. A highly stable (+/-15ppm/°C) manganin sensing-element provides a wide -40 to +60°C operating temperature range. Please see the DCA5-20PC data sheet for additional ammeter-related information and detailed connection diagrams.



Color Black and Silver
Current rating 10A-3000A
Voltage drop 50mV,60mV,75mV,100mV
Accuracy class 0.5/0.2
Material Copper with nickel plated
Overload capacity 120% of rated current for 2hr
Function are used to multiply the measuring range of current of measuring instruments.
Application Use for DC digital Amp Meter.



600A 75mV shunt.JPGIMG_4508.JPGIMG_4509.JPGIMG_4510.JPGIMG_4517.JPG







USA shunt resistor 50A 150A 200A 500A 800A 1200A 50mV and 100mV Base-Mounted shunt Resistors DC Shunts USA shunt resistor 50A 150A 200A 500A 800A 1200A 50mV and 100mV BaCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeterCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeterCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeterCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeterCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeterCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeterCE certificate 1500A 150mV FL-RS Russian type dc current shunt resistor for Digital voltmeter ammeter

FAQ

Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: 1-2 years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide

customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
