500A 100mV dc current shunt Resistor

FL 500A 100mV
Brand
NQQK

 500A 100mV dc current shunt Resistor

Product Description

shunt resistor nqqk 19




NQQK’s 50mV and 100mV base-mounted current shunts are designed for measuring dc currents from 5A to 1200A. These precision shunts (+/-0.25% accuracy) connect directly to NQQK’s DCA5-20PC Series of dc ammeters. Installation is straightforward: simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. All models feature a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing for direct attachment to metal surfaces. A highly stable (+/-15ppm/°C) manganin sensing-element provides a wide -40 to +60°C operating temperature range. Please see the DCA5-20PC data sheet for additional ammeter-related information and detailed connection diagrams.





General Specifications (All Models)



Rated Accuracy  ±0.25% max.
Sensing Element Manganin
Terminal Posts/Screws Brass
Tightening Torgue  See Mechanical Dimensions
Current Rating See Selection Guide
Operating Temperature  –40 to + 60°C (–40 to +137°F)





 MECHANICAL SPECIFICATIONS



5 through 150 Amps

NQQK Rated  Resistance Torque
Part No. Current/Output (Ohms at 25°C) Range
3020-01097-0 5A/50mV 0.01 36-40 in-lbs (4.1-4.5Nm)
3020-01107-0 10A/100mV 0.01 36-40 in-lbs (4.1-4.5Nm)
3020-01098-0 20A/50mV 0.0025 36-40 in-lbs (4.1-4.5Nm)
3020-01096-0 50A/50mV 0.001 36-40 in-lbs (4.1-4.5Nm)
3020-01099-0 100A/50mV 0.0005 36-40 in-lbs (4.1-4.5Nm)
3020-01108-0  100A/100mV 0.001 36-40 in-lbs (4.1-4.5Nm)
3020-01100-0  150A/50mV 0.00033 36-40 in-lbs (4.1-4.5Nm)

 8-32 Kelvin output screws (all shunts): 14-15 in-lbs (1.58-1.69Nm)



200 through 500 Amps

NQQK Rated  Resistance Torque
Part No. Current/Output (Ohms at 25°C) Range
3020-01101-0 200A/50mV 0.00025 14-15 ft-lbs (19.0-20.3Nm)
3020-01102-0 300A/50mV 0.000167 14-15 ft-lbs (19.0-20.3Nm)
3020-01103-0 500A/50mV 0.0001 14-15 ft-lbs (19.0-20.3Nm)



800 through 1200 Amps

NQQK Rated  Resistance Torque
Part No. Current/Output (Ohms at 25°C) Range
3020-01104-0 800A/50mV 0.0000625 32-35 ft-lbs (43.4-47.5Nm)
3020-01105-0 1000A/50mV 0.00005 32-35 ft-lbs (43.4-47.5Nm)
3020-01106-0 1200A/50mV 0.0000417 32-35 ft-lbs (43.4-47.5Nm)

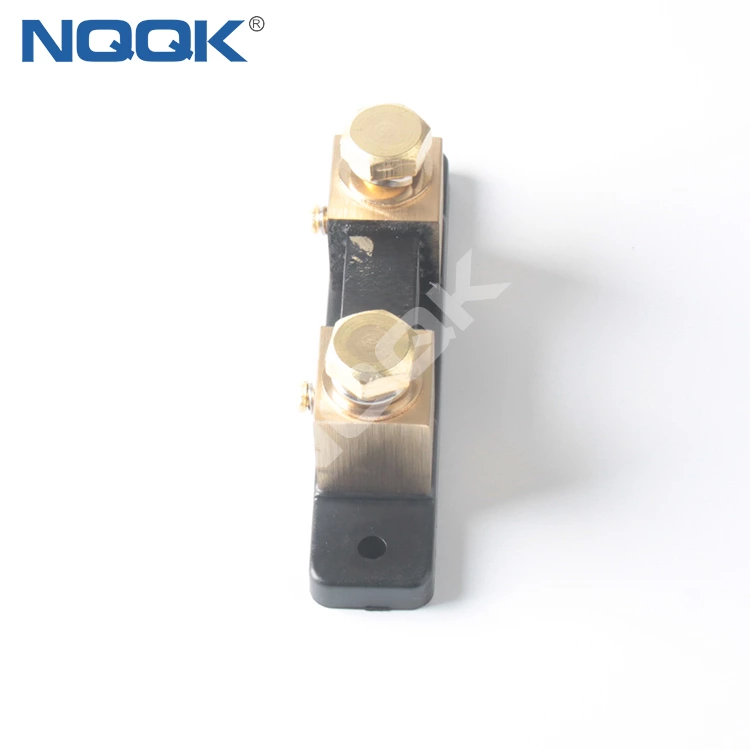

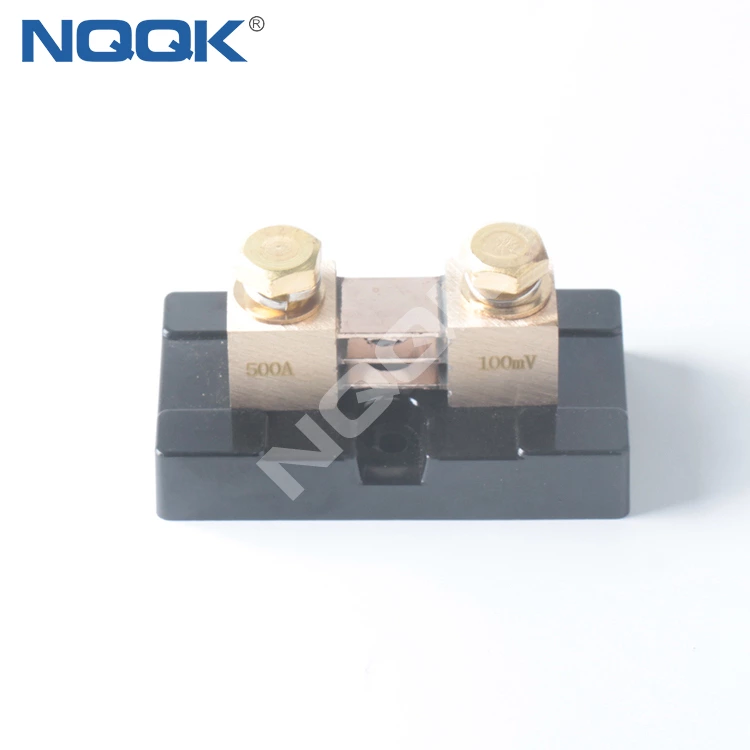

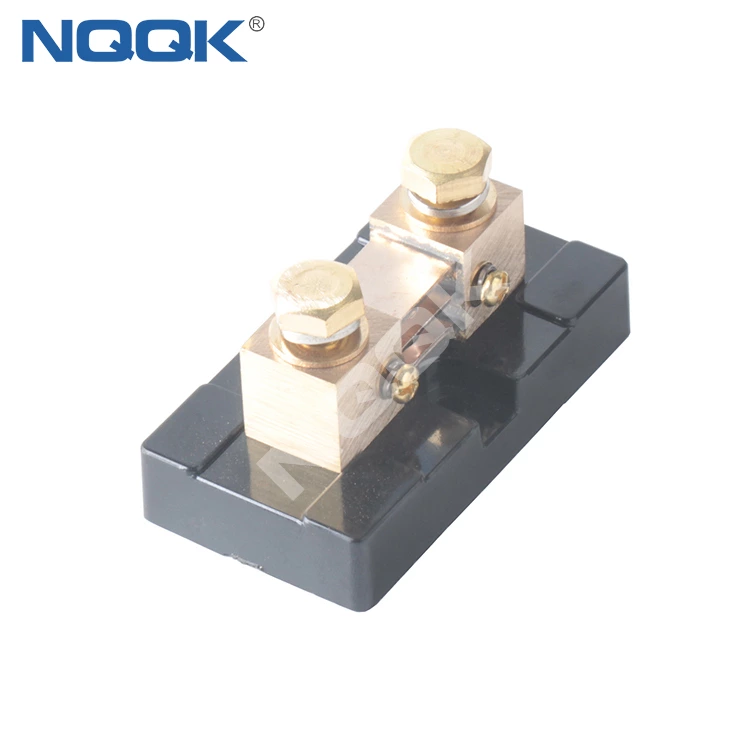

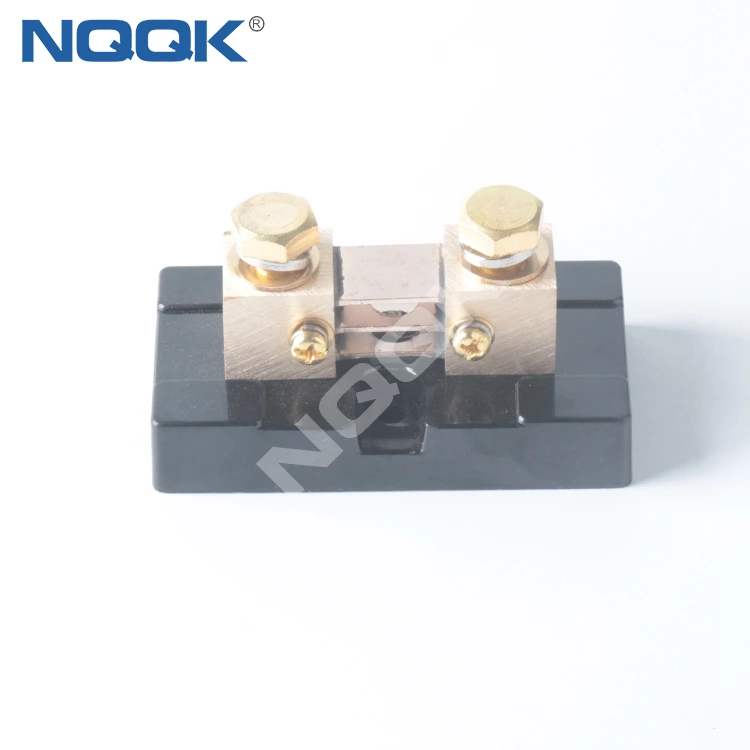

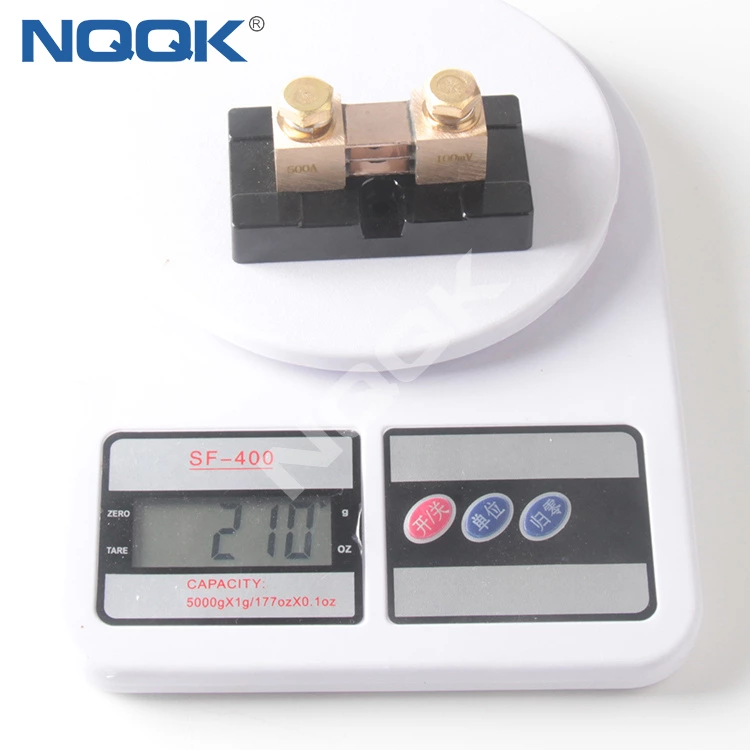

 1 500A 100mV shunt.JPG2 500A 100mV shunt.JPG3 500A 100mV shunt.JPG4 500A 100mV shunt.JPG5 500A 100mV shunt.JPG6 500A 100mV shunt.JPG



Nqqk shunt resistor CE certificate

USA shunt res3020-01104-0 800A 50mV 100mV Base Mounted dc current shunt Resistor 3020-01104-0 800A 50mV 100mV Base Mounted dc current shunt Resistor 3020-01104-0 800A 50mV 100mV Base Mounted dc current shunt Resistor 3020-01104-0 800A 50mV 100mV Base Mounted dc current shunt Resistorunted shunt Resistors DC Shunts
