SCR Thyristor electronic regulator

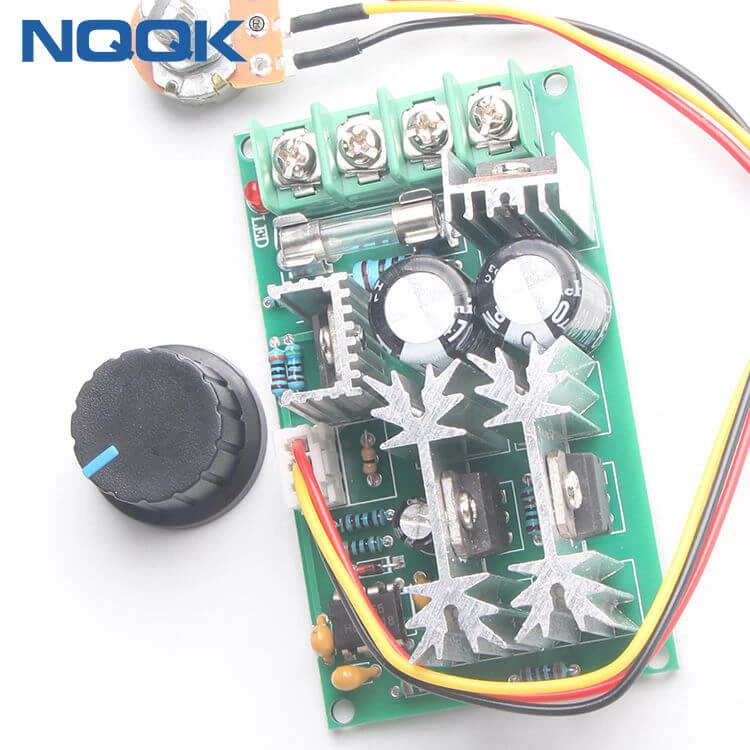

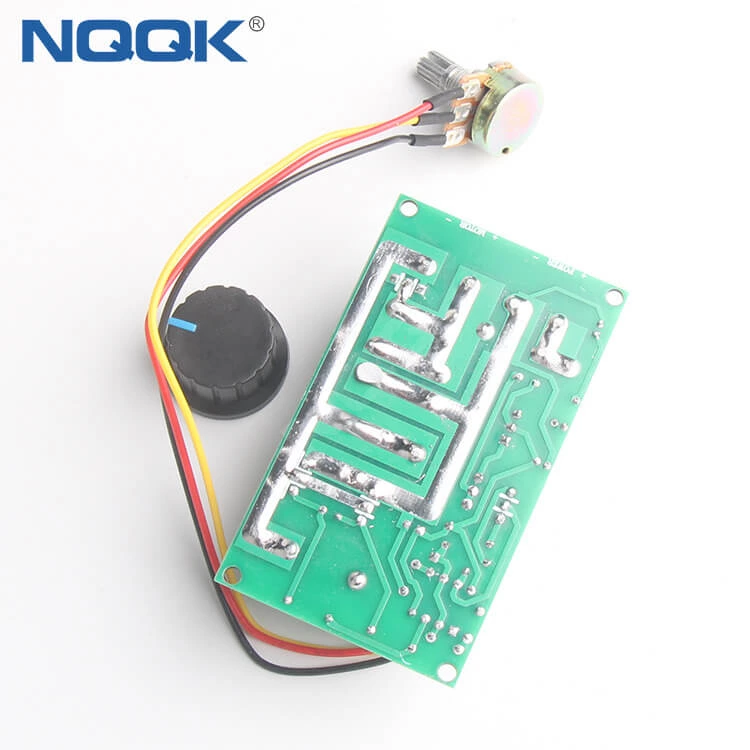

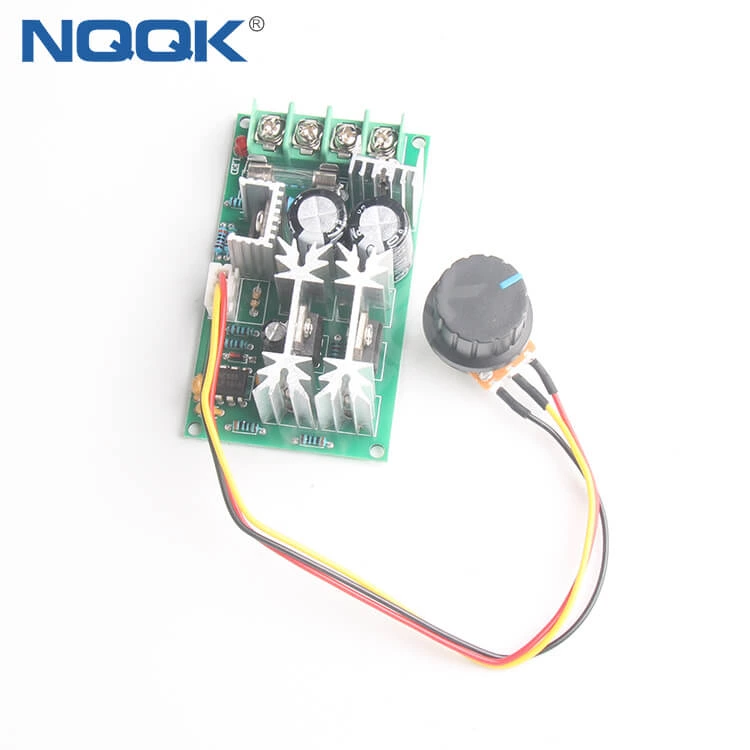

DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator

Model
CCM9
Brand
NQQK
DC motor speed controller 12V24V36V48V high power drive module PWM controller 20A Regulator
Product Description
Technical indicators
Input voltage: DC10-60V
Contact Now
DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator
DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator DC Motor Speed Controller 12V24V36V48V High Power Drive Module PWM Controller 20A Regulator

DC motor speed controller 12V24V36V48V high power drive module PWM controller 20A Regulator

Product Description

Technical indicators


Input voltage: DC10-60V                                            Output voltage: linear under load
Output limit current: 20A (10A, 450W for long time use, pay attention to keep the module cool and cool)
Ultimate power: 1200W
Speed regulation type: current regulation                   speed regulation mode: potentiometer (linear)
Speed regulation duty range: 0——100%                  Control frequency: 25KHZ
Wiring type: fence terminal block                                knob line length: 20CM

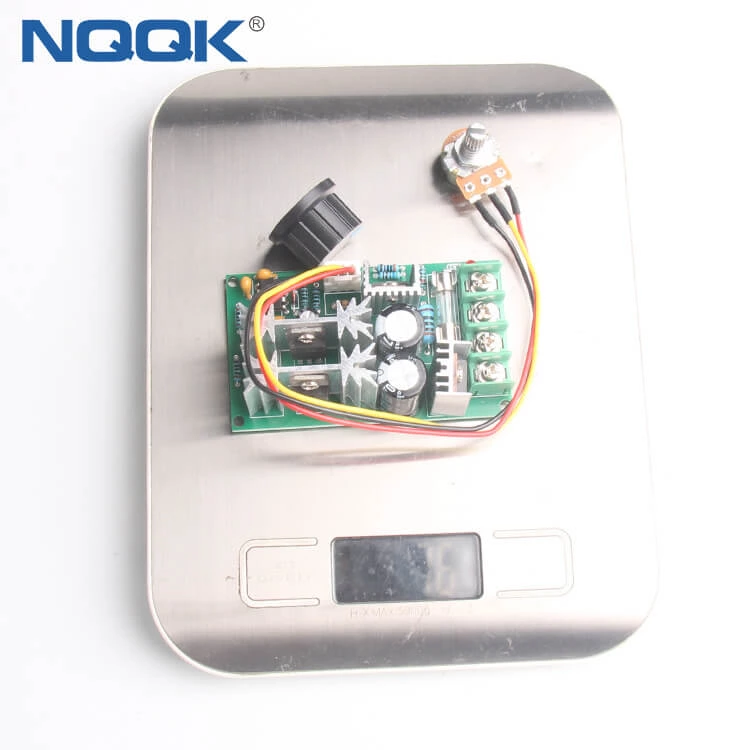

Module size: length * width * height 77MM * 45MM * 28MM                                   product net: 73 grams
Motherboard mounting size: length * width 73MM * 40MM                                                                            potentiometer according to the installation opening: 7MM



Wiring diagram
Make sure that the positive and negative connections are correct before powering on. Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor.
  Input is 9-60V DC
Power: POWER+ POWRE-
Motor: MOTOR+ MOTOR-
Please note:

1. This governor is used for DC brushed motors.


2, not suitable for DC brushless motor speed; can not be used as a regulator or regulator!

Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery

FAQ

Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: 1-2 years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide

customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
