SCR Thyristor electronic regulator

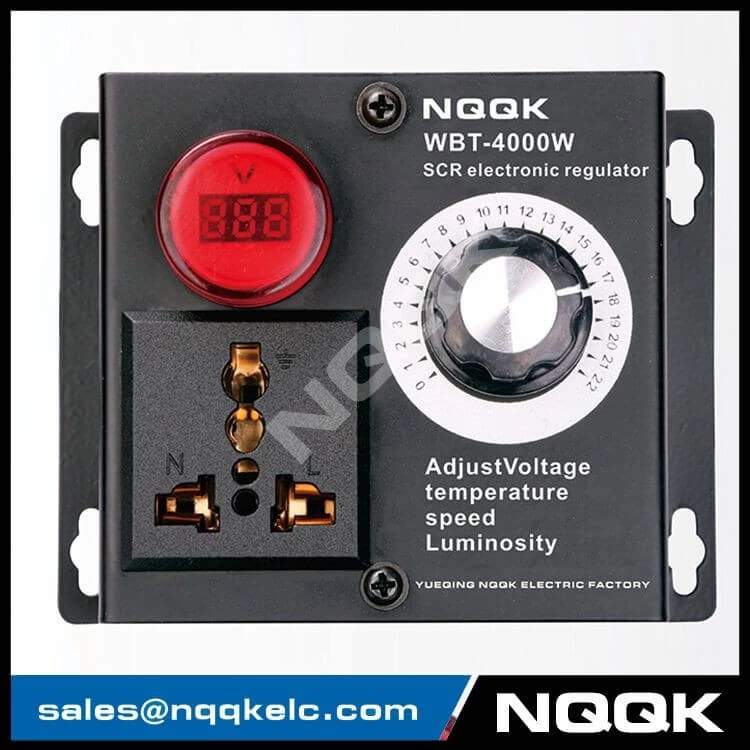

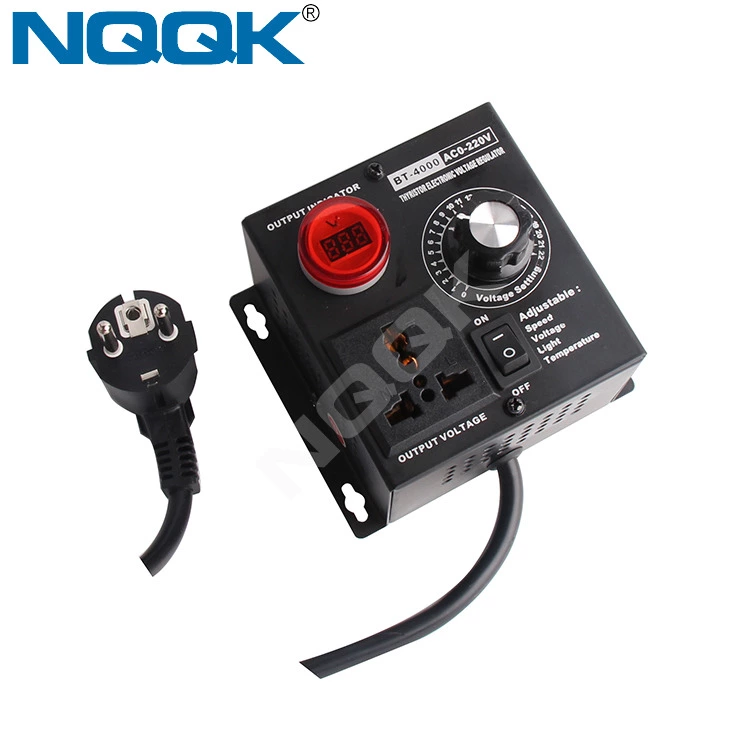

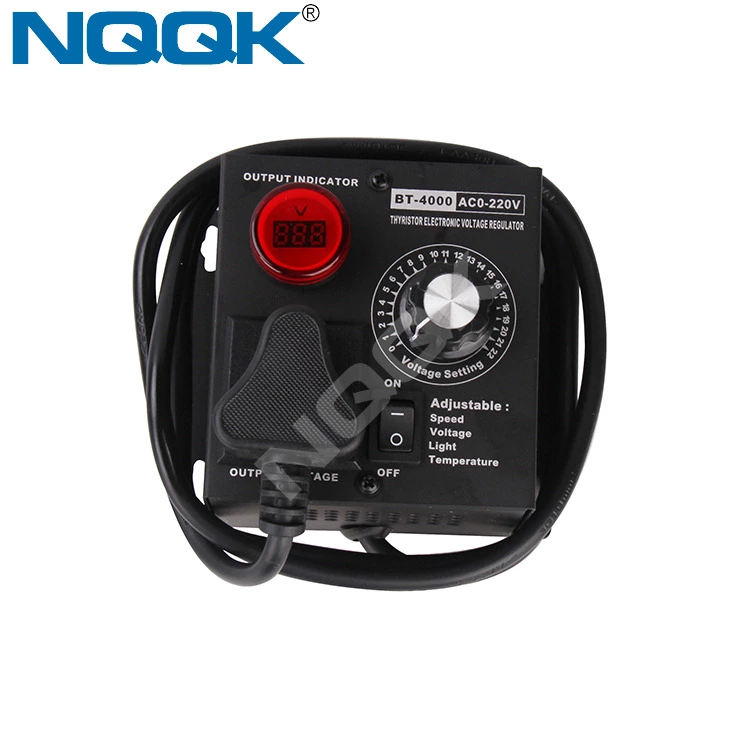

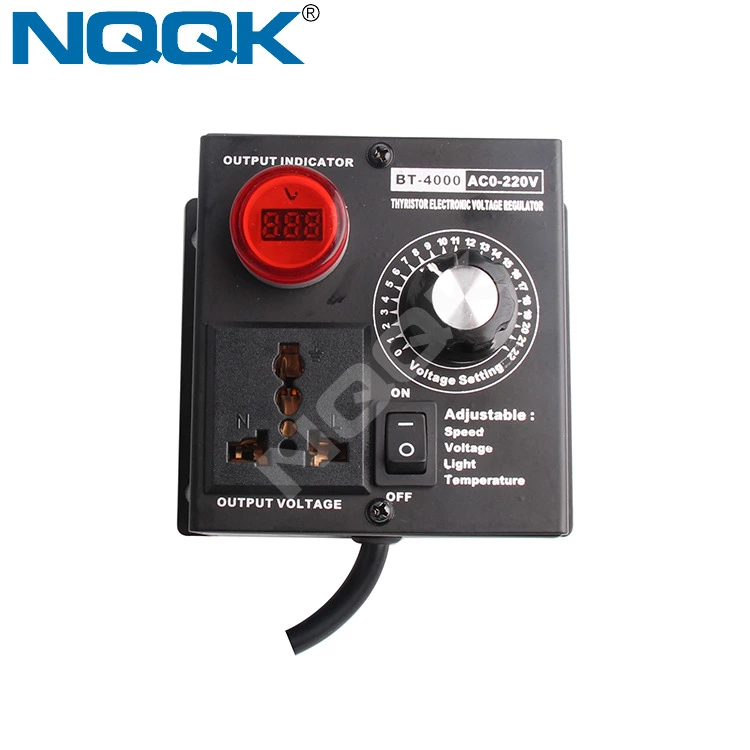

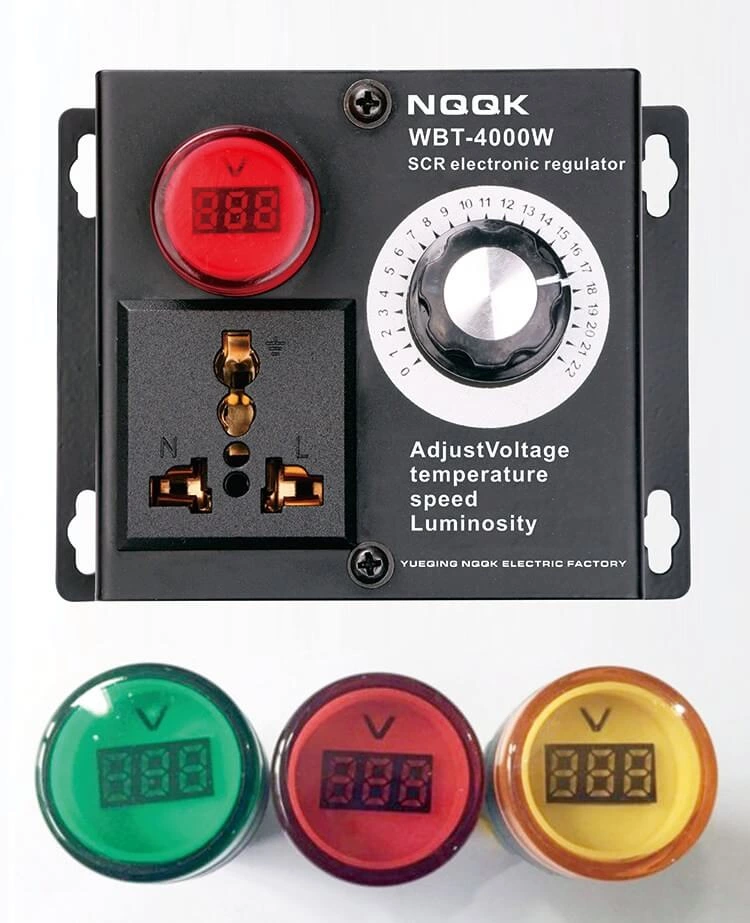

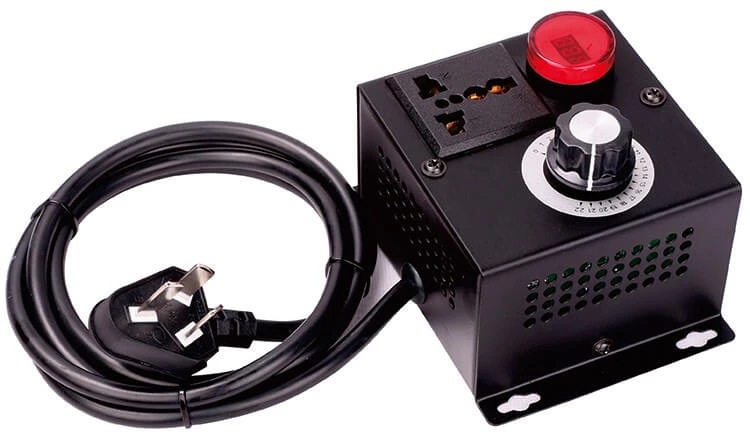

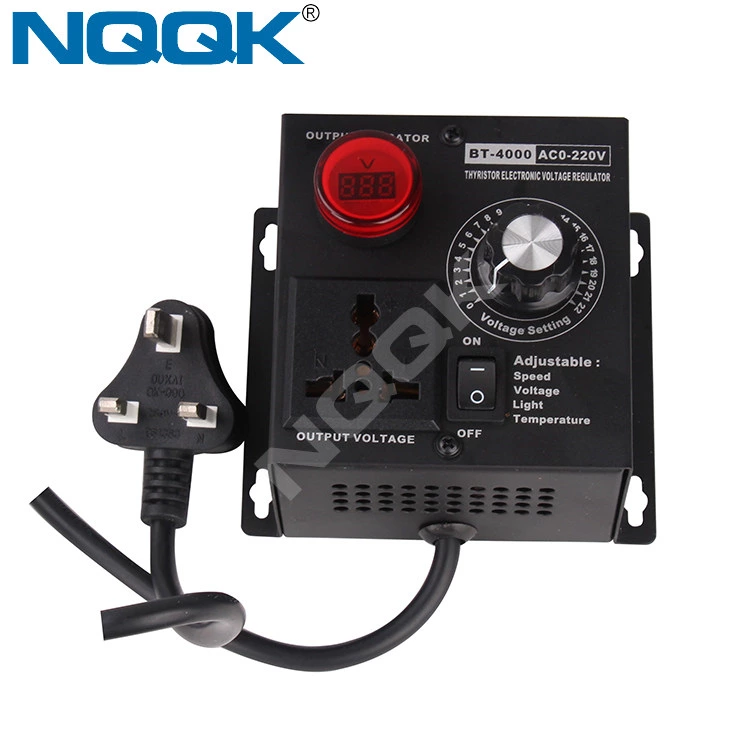

4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator

Model
WBT-4000W
Brand
NQQK
4000W power 220VAC Adjust temperature speed Voltage Regulator speed Regulator
Product Description
Product name
Thyristor electronic regulator
Product number
WBT-4000W
Input voltage
AC220V
Contact Now
4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator
4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator 4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator 4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator 4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator 4000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator

4000W power 220VAC Adjust temperature speed Voltage Regulator speed Regulator

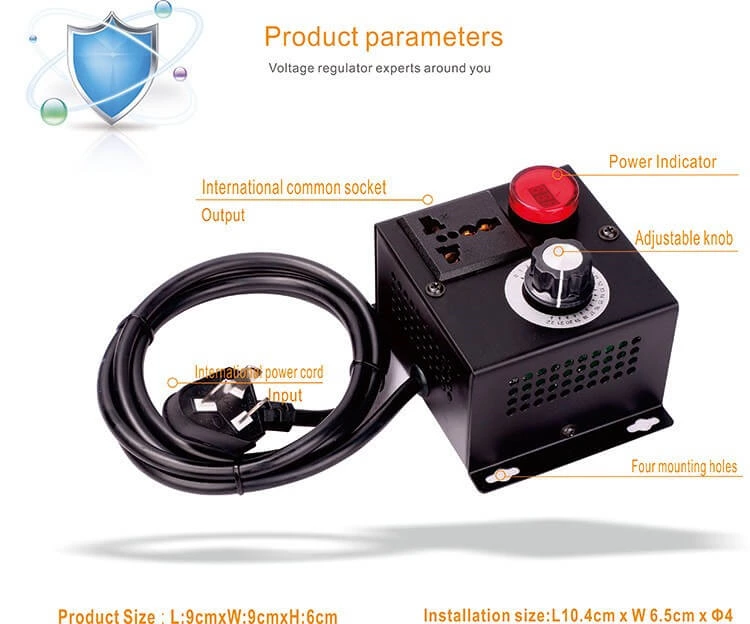

Product Description

Product name Thyristor electronic regulator
Product number WBT-4000W
Input voltage AC220V
Output voltage 10-220V adjustable (the output voltage is less than the input voltage)
Maximum power  4000W (at 220V)
Voltage regulation range 0-220V stepless adjustable (with load conditions) step-down can be 0, boost starting 20V or so.
Rated current 9A
Maximum current 18A
Product Features Zero hysteresis, zero delay, with a peak voltage to attract the circuit to effectively protect high-power thyristor against surge, anti-spike, RC absorption of multiple protection

Thyristor electronic regulator

Thyristor electronic regulator Use range

Household appliances, industrial electrical appliances, scientific test equipment, factories, schools and other electrical equipment

Note: must first turn on the load and then debug voltage (measured voltage)

SCR is mainly applied to resistive load (electric wire incandescent lamp, etc.), single-phase AC power can also be the majority, guaranteed not guaranteed, other types of load please buyers to confirm. Fuse is not a panacea, there is reaction time, if the current is too large, in addition to burn out the fuse, the module may burn, the voltage range can be really adjustable from 10V-220V smooth, more suitable for low voltage driven heating wire industrial enterprises Use: such as cutting styrofoam, Zhenzhu Mian, raincoat production.



A thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. It acts exclusively as a bistable switch, conducting when the gate receives a current trigger, and continuing to conduct while the voltage across the device is not reversed (forward-biased). A three-lead thyristor is designed to control the larger current of its two leads by combining that current with the smaller current of its other lead, known as its control lead. In contrast, a two-lead thyristor is designed to switch on if the potential difference between its leads is sufficiently large (breakdown voltage).

Some sources define silicon-controlled rectifier (SCR) and thyristor as synonymous.[1] Other sources define thyristors as a larger set of devices with at least four layers of alternating N and P-type material.

The first thyristor devices were released commercially in 1956. Because thyristors can control a relatively large amount of power and voltage with a small device, they find wide application in control of electric power, ranging from light dimmers and electric motor speed control to high-voltage direct current power transmission. Thyristors may be used in power-switching circuits, relay-replacement circuits, inverter circuits, oscillator circuits, level-detector circuits, chopper circuits, light-dimming circuits, low-cost timer circuits, logic circuits, speed-control circuits, phase-control circuits, etc. Originally, thyristors relied only on current reversal to turn them off, making them difficult to apply for direct current; newer device types can be turned on and off through the control gate signal. The latter is known as a gate turn-off thyristor, or GTO thyristor. A thyristor is not a proportional device like a transistor. In other words, a thyristor can only be fully on or off, while a transistor can lie in between on and off states. This makes a thyristor unsuitable as an analog amplifier, but useful as a switch.

temperature speed Lumin

Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
