SCR Thyristor electronic regulator

220V DC Motor Speed Controller

Model
CCM220DCS
Brand
NQQK
Contact Now

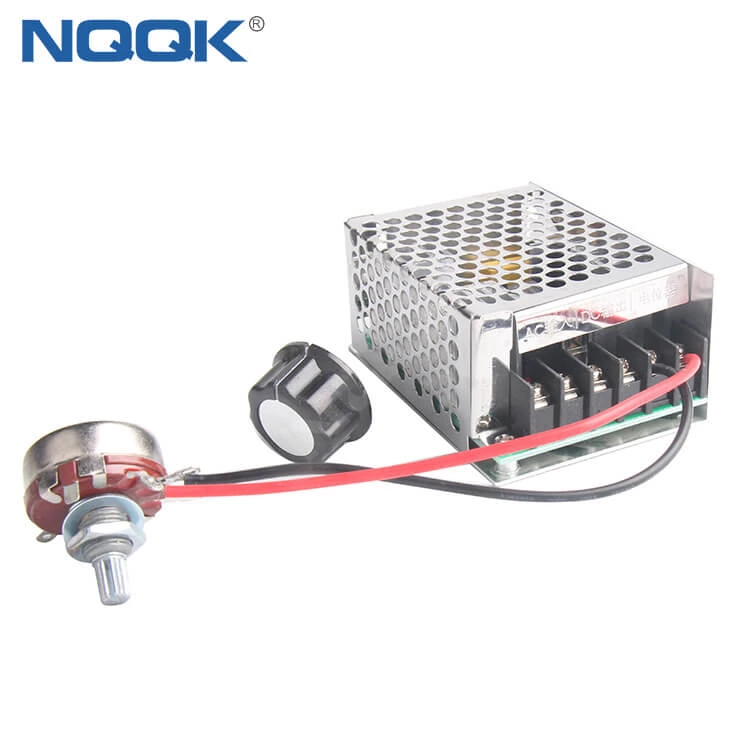

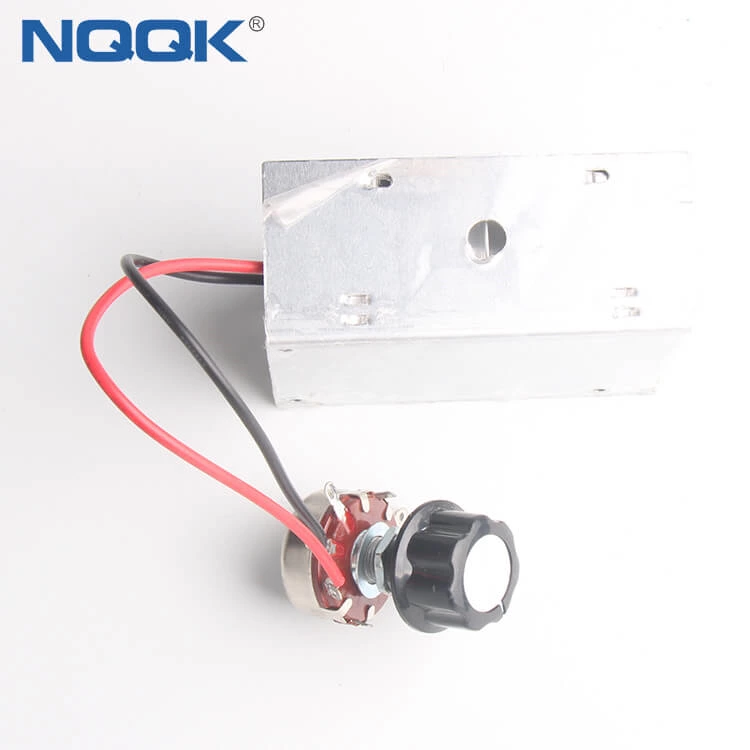

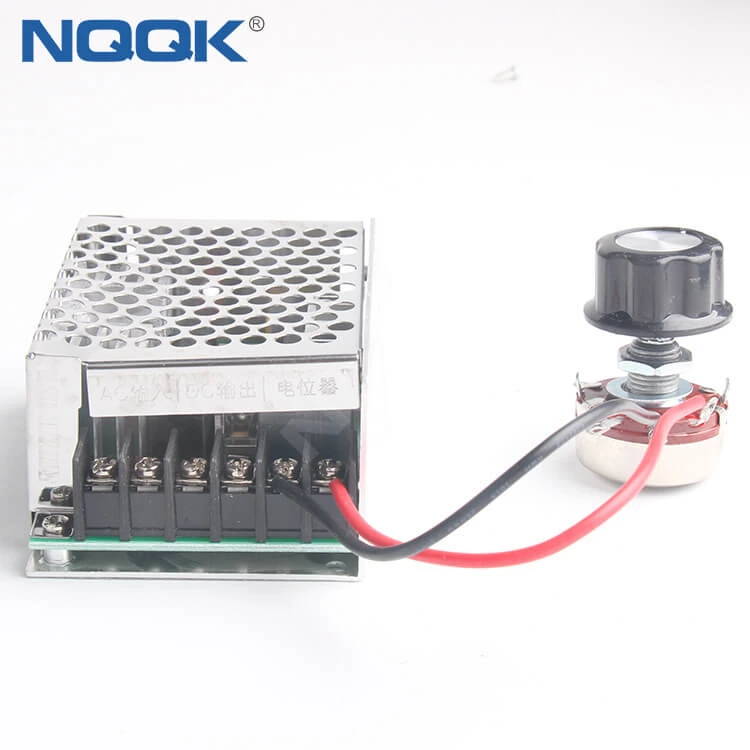

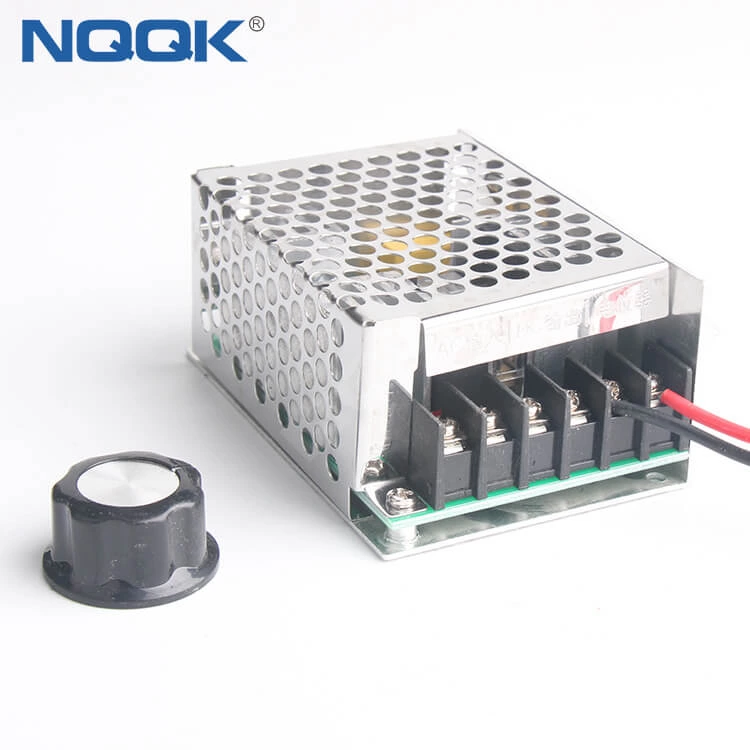

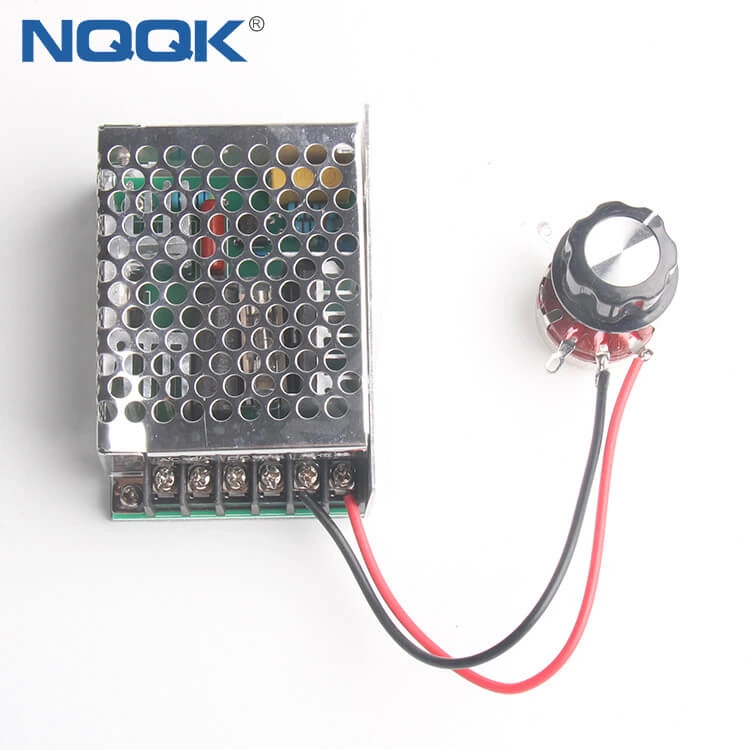

220V DC Motor Speed Controller
220V DC Motor Speed Controller 220V DC Motor Speed Controller 220V DC Motor Speed Controller 220V DC Motor Speed Controller 220V DC Motor Speed Controller 220V DC Motor Speed Controller

220V DC motor speed controller

Product Description

DC Speed Control Power Supply DC Motor Speed Controller Input 220V Output 220VDC 15A

Technical Parameters

Model: CCM220DCS

Name: DC motor governor

Potentiometer: resistance 500K 2W

Input voltage: 220vAC (Input 110V is also available, power is halved)

Armature output: DC 10-210V or so

Maximum power: motor within 2000W,

Use the maximum current within 10A for a long time. Note that the maximum current of the motor is larger than the rated current. You can't just look at the rated current.

Size description

Size: length and width 85mm * 58mm height about 38mm

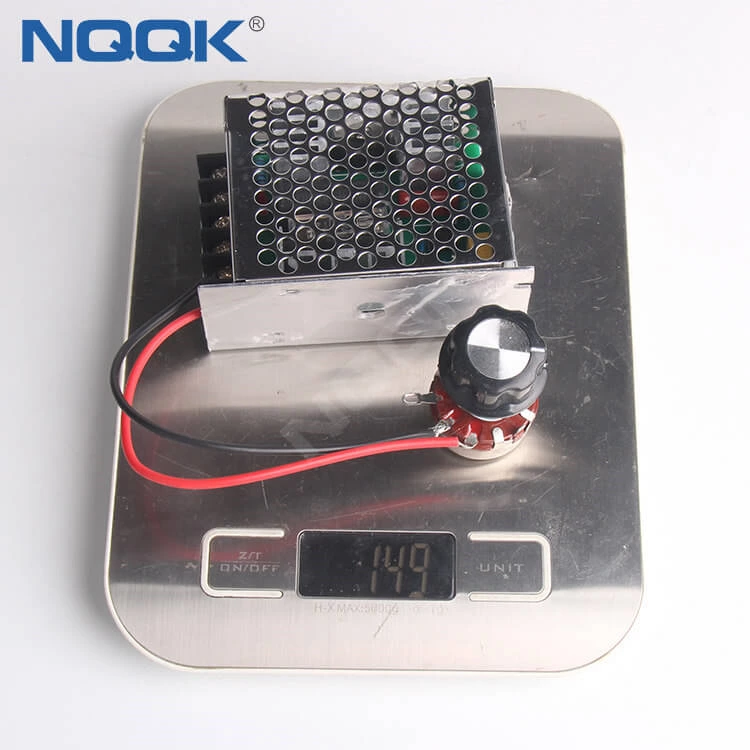

Net weight: 160g

Precautions:

During the operation of the governor, it is strictly forbidden to switch the motor directly and reversely. Direct switching will cause the module to burn out. It should be reversible after the motor is completely stopped. Note that the module adopts the thyristor design and needs to be connected to the load. Pressure, the first time you can use the incandescent bulb test. (Energy-saving lamps, LED lights, etc. cannot be used)
