SCR Thyristor electronic regulator

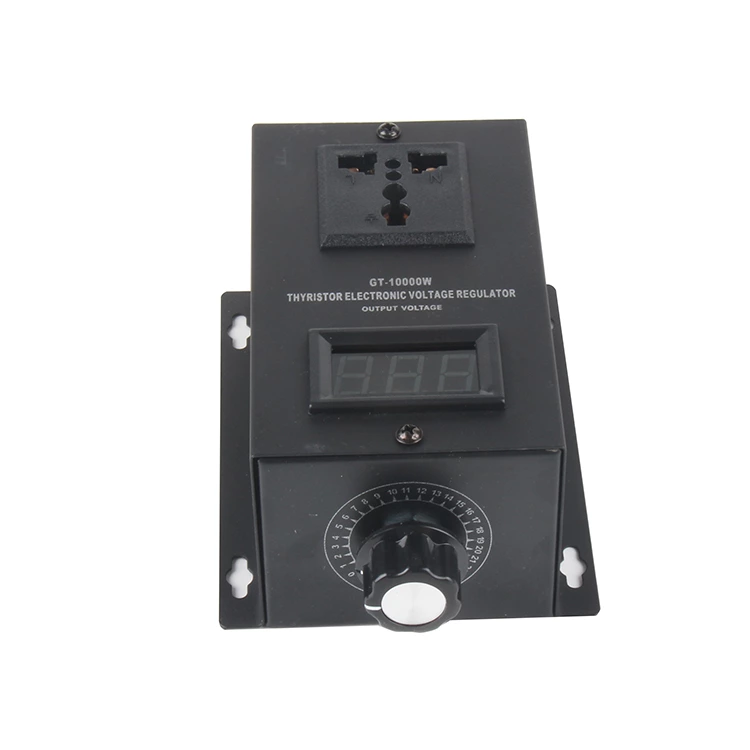

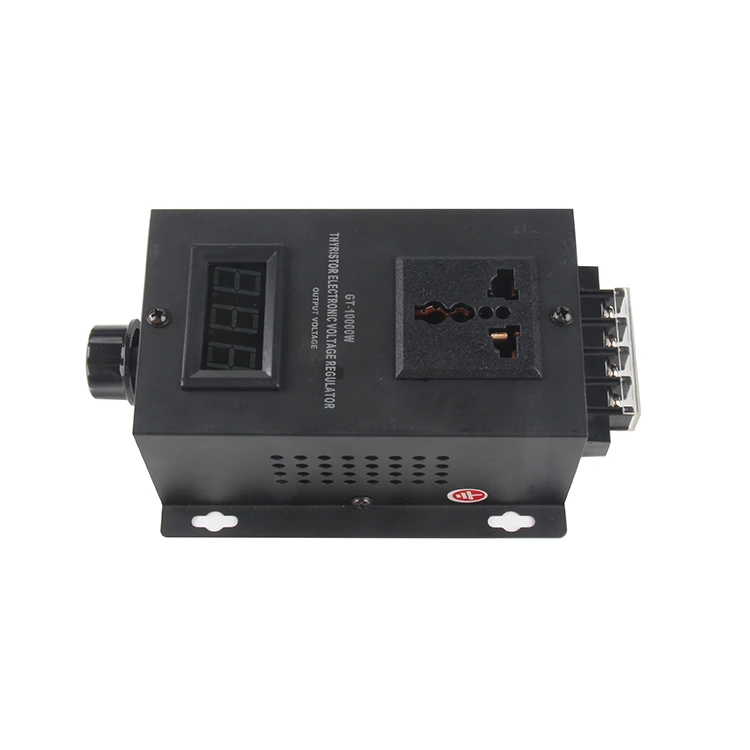

10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button

Model
GT-10000W
Brand
NQQK
Contact Now
10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button
10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button 10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button 10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button 10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button 10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button 10000W SCR Module Dimming Speed Temperature Electronic Voltage Regulator with Spin Button

10000W AC220V 10-220V Adjust Voltage temperature speed Luminosity

Thyristor SCR AC electronic regulator

Product Description

Main Function:

The thyristor electronic voltage regulator is mainly used for resistive loads (Incandescent lamps, etc.), single-phase AC brushless motor, adjustable pressure range from 20V-220V, more suitable for low voltage drive heating wire Factory use: such as cutting styrofoam, pearl cotton, raincoats make it to adjust the voltage, reduce power and so on. With the new bi-directional high-power thyristor, the current is up to 40 amps, which solves the over-current problem caused by the electric resistance of the electric furnace wire when cooling is too small; it can easily adjust the output voltage of the mains at 10V- Continuously adjustable between 220V, zero delay, zero hysteresis. Use case: Heat regulation of electric stove and water heater, dimming of lamps and lanterns, small motor speed adjustment, electric iron thermostat and so on, so as to achieve the effer of temperature adjustment, dimming, speed regulation, and pressure regulation.



Precautions:

1. Please use within the rated power and voltage range, only suitable for AC grid.

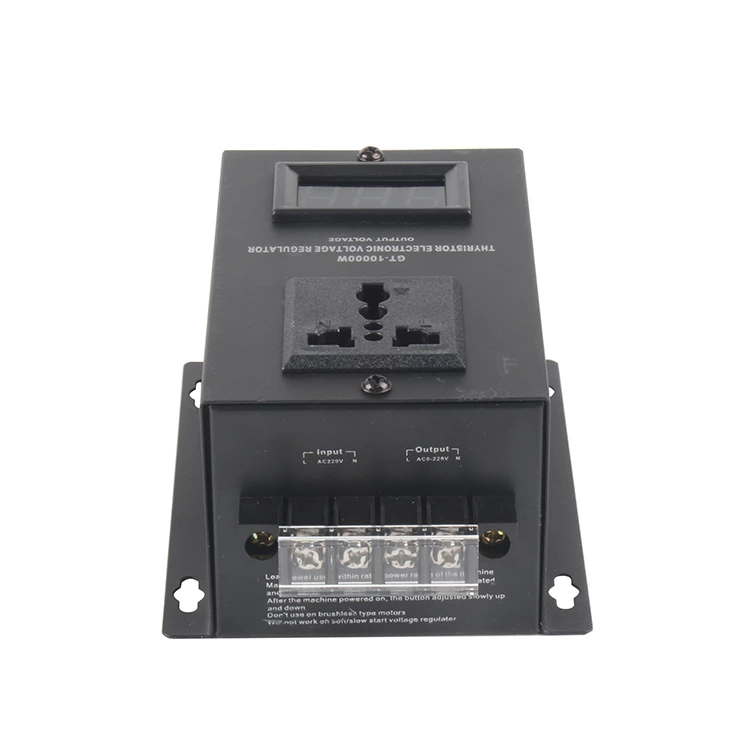

2. It is a normal phenomenon that there is slight heat during work. Please use it in a dry and ventilated place. 3. Input AC 220V power, turn on the power switch, slowly adjust the voltage knob to change the voltage.

4. The machine does not adapt to the capacitor motor, adapt to the brush motor speed and electric wire resistance conductor.

5. The machine does not adapt to work on soft start or slow start voltage regulator.

6. Attention must first load and then adjust the voltage



Mapplication:

Electric furnace, water heater, the lamps and laterns that move light, small motor, solder iron temperature control and so on (Inductive or capacity load power should be reduced, the voltage regulator is equipped with two-way high-power thyrister, don't add any component can use , very convenient and practical.)
