FL-2 series splitter product introduction

Date: | Read: 103

FL-2 series splitter product introduction

The FL-2 series splitter is used to measure DC current, and the splitter is used to measure DC current. It is made based on the principle of generating voltage at both ends of the resistor when DC current passes through it.

The FL-2 series 250A/75mV and 300A/75mV splitters are mainly composed of manganese copper sheets (Cu Mn) and copper joints welded together. There are two sets of wiring terminals on the joints at both ends of the splitter: the outer set is a potential terminal for connecting to the power line, and the inner set is a potential terminal for connecting to measuring instruments. Our company specializes in producing various fixed value splitters and precision alloy resistors for electrical parameters and dimensions, At the same time, we can customize different styles (including export models) of special diverters for customers. If there are special requirements, we can customize and place orders. If the splitter above 150A/75mV still needs to add base isolation, our company usually uses high-temperature resistant materials (DuPont: HTNFR52G15BL, melting point: 310 degree fireproof V0 injection molding grade)

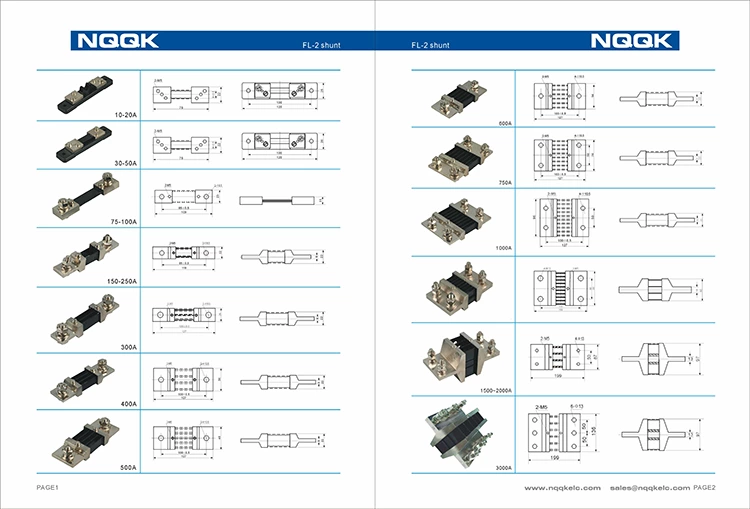

The FL-2 series splitter has an accuracy of 0.5 level, with specifications ranging from 1A to 15000A. The secondary voltage is 20mV, 30mV, 50mV, 60mV, 75mV, 100mV, 150mV, etc. The conventional voltage is 75mV. Usually, 2000A and above are improved to FL-29 or FL-39 outer diameter sizes.

1、 Product Usage: Diverters are widely used to expand the current measurement range of instruments and can be used in communication systems

The power supply and other circuits of electronic whole machine automation control are used for current limiting, current sharing, sampling, and detection, and the usage condition is B Group.
