Ozone generator

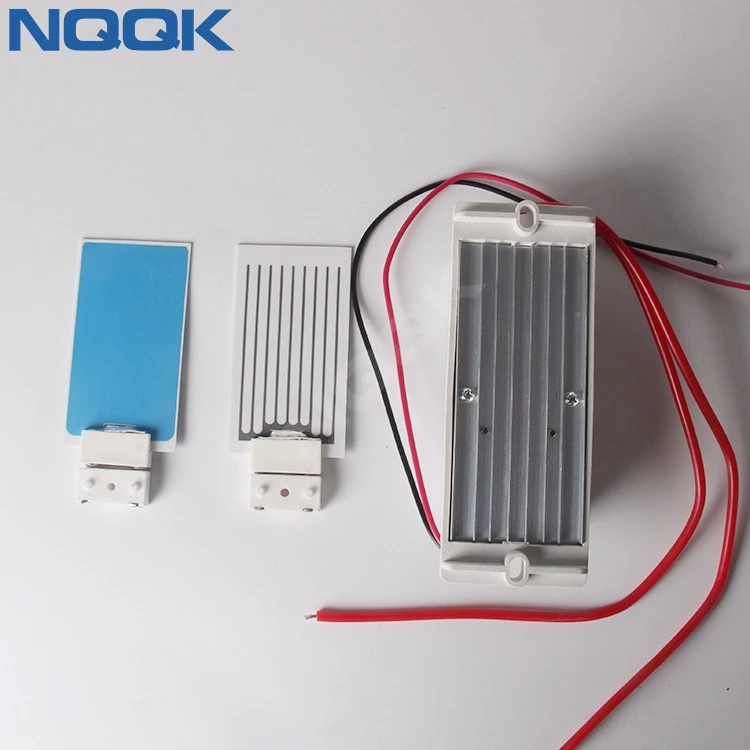

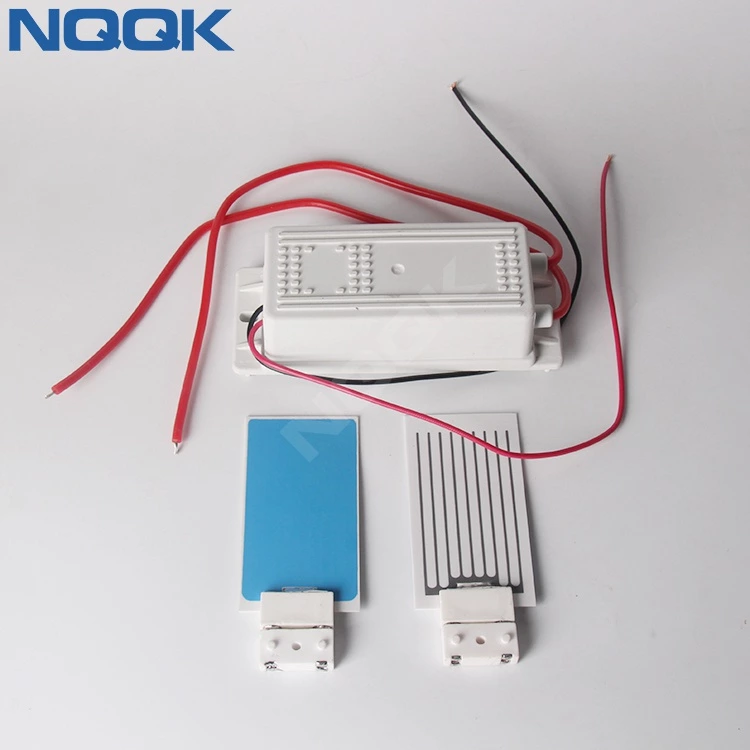

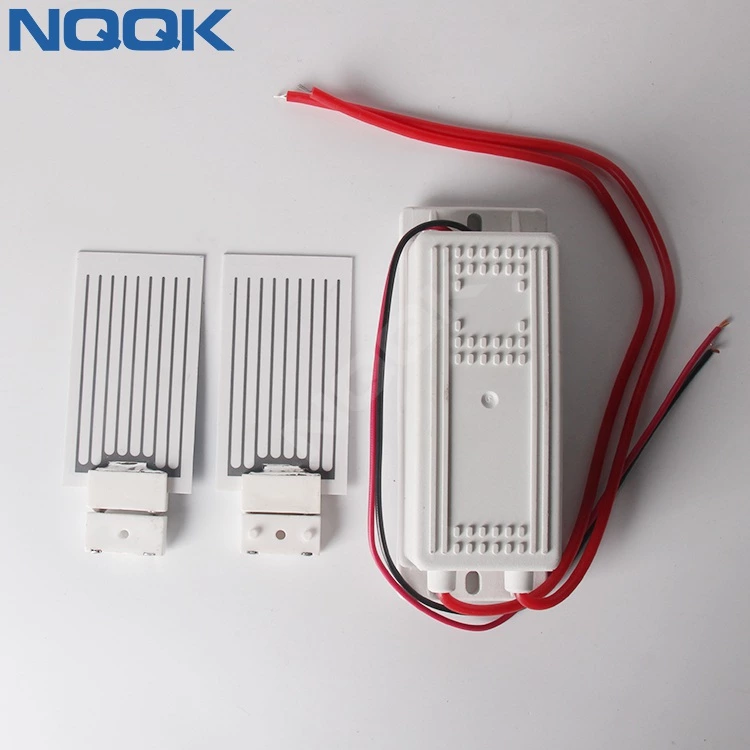

7g 7000mg 2 pieces Ceramic Chip Ozone generator

Brand
NQQK
7g 7000mg ordinary 2 pieces Ceramic
Chip Ozone generator
Product Description
Product name
7g Chip Ozone generator
Model
NK-PS-7G (ordinary)
Product description
Power Dimensions:
Contact Now
7g 7000mg 2 pieces Ceramic Chip Ozone generator
7g 7000mg 2 pieces Ceramic Chip Ozone generator 7g 7000mg 2 pieces Ceramic Chip Ozone generator 7g 7000mg 2 pieces Ceramic Chip Ozone generator 7g 7000mg 2 pieces Ceramic Chip Ozone generator

7g 7000mg ordinary 2 pieces Ceramic

Chip Ozone generator

Product Description

Product name 7g Chip Ozone generator Model NK-PS-7G (ordinary)
Image Product description
7g 7000mg ordinary 2 pieces Ceramic Chip Ozone generator.jpg Power Dimensions: 145 * 60 * 42 (mm)
Ceramic Dimensions: 120 * 50 (mm) 2 pieces
Normal type
Input voltage: 220V / 50Hz
Current consumption: <300mA
Power consumption: <55W
Output high-pressure: AC5.0 ± 0.5KV
110V, 12V, 24V can be done





Product name 2g Chip Ozone generator Model NK-PS-2G
Image Product description

Power Dimensions: 145 * 60 * 42 (mm)
Ceramic Dimensions: 73 * 34 (mm)
Input voltage: 220V / 50Hz
Current consumption: <120mA
Power consumption: <30W
Output high-pressure: AC3.5 ± 0.5KV
110V, 12V, 24V can be done



Product name 1g Chip Ozone generator Model NK-PS-1G
Image Product description
Power Dimensions: 145 * 60 * 42 (mm)
Ceramic Dimensions: 58 * 48 (mm)
Input voltage: 220V / 50Hz
Current consumption: <80mA
Power consumption: <15W
Output high-pressure: AC3.0 ± 0.5KV
110V, 12V, 24V can be done



Product name 3g Quartz tube ozone generator Model NK-GS-3G
Image Product description
Power Dimensions: 145 * 60 * 42(mm)
Ozone pipe size: 210 * 30 (mm)
Input voltage: 220V / 50Hz
Current consumption: <140mA
Power consumption: <16W
Output high-pressure: AC8.0 ± 0.5KV
110V do



Product name 2g Quartz tube ozone generator Model NK-GS-2G
Image Product description
Power Dimensions: 145 * 60 * 42(mm)
Ozone pipe size: 160 * 50 (mm)
Input voltage: 220V / 50Hz
Current consumption: <150mA
Power consumption: <15W
Output high-pressure: AC8.0 ± 0.5KV
110V can done



Product name 1g Quartz tube ozone generator Model NK-GS-1G
Image Product description
Power Dimensions: 145 * 60 * 42(mm)
Ozone pipe size: 112 * 50 (mm)
Input voltage: 220V / 50Hz
Current consumption: <100mA
Power consumption: <12W
Output high-pressure: AC7.0 ± 0.5KV
110V do



Product name 500mg ozone generator Model NK-GS-0.5G
Image Product description
Power Supply Dimensions: 70 * 40 * 25(mm)
Ozone pipe size: 122 * 25 (mm)
Input voltage: 220V / 50Hz
Current consumption: <70mA
Power consumption: <5W
Output high-pressure: AC7.5 ± 0.5KV
110V do
