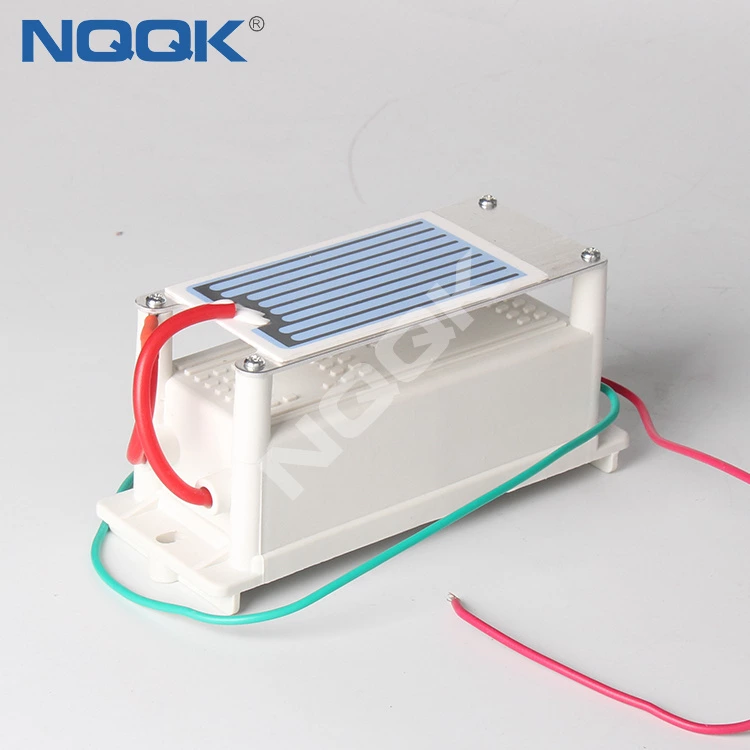

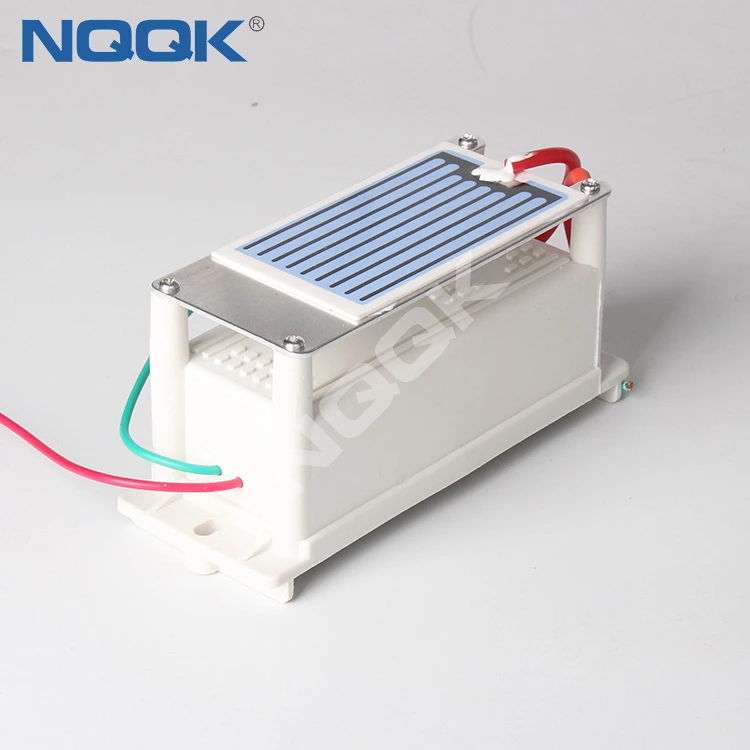

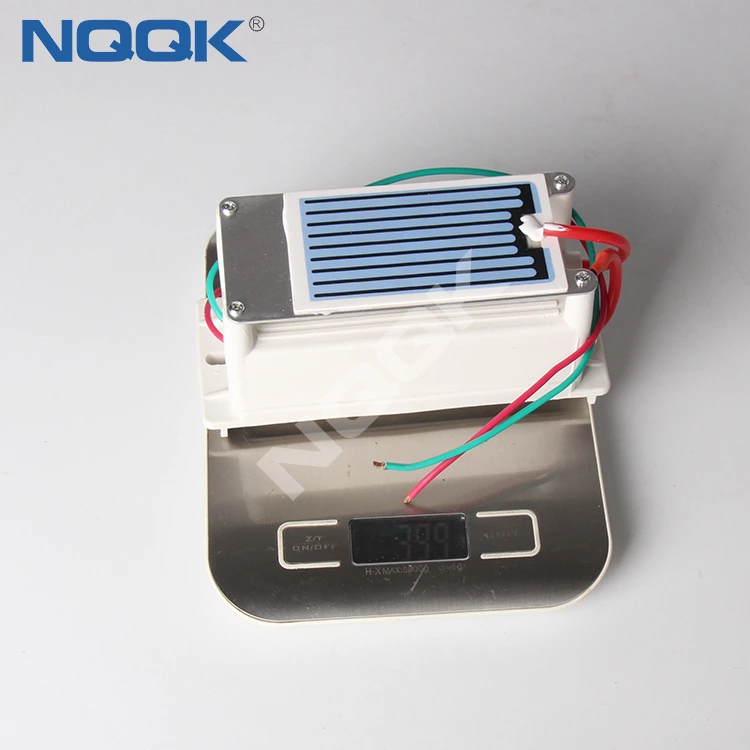

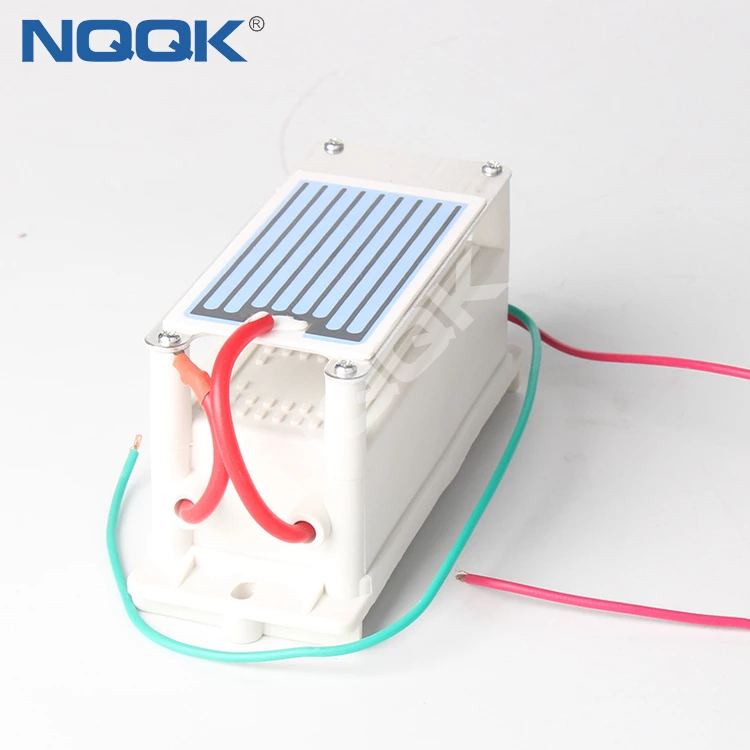

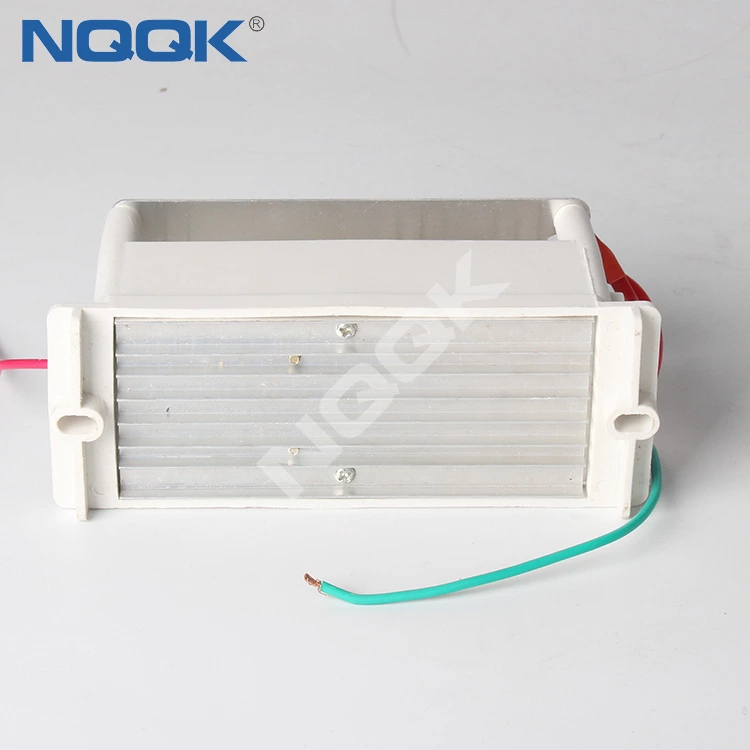

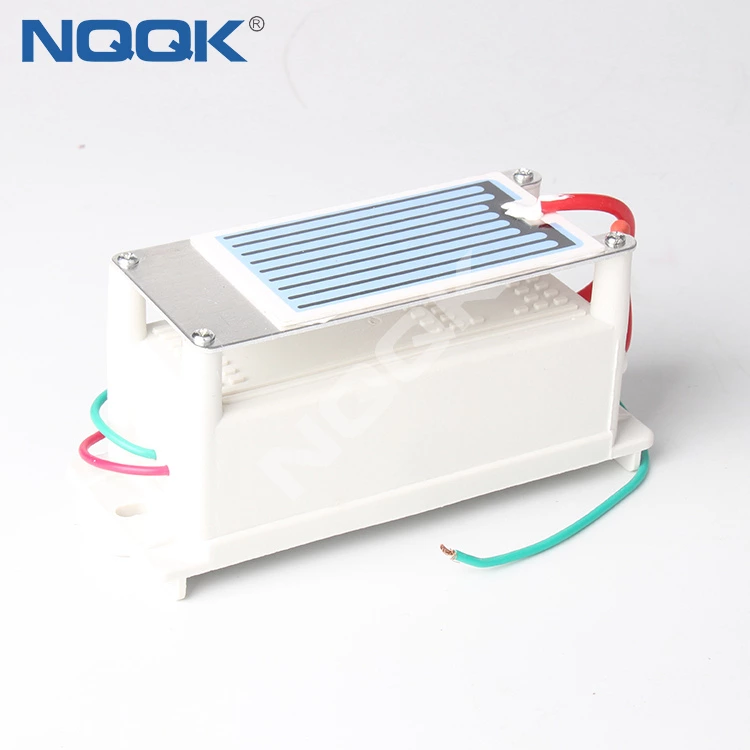

3.5g Air Purifier Plate Ozone Generator Module Ization

Product name 3.5g One Chip Ozone generator Model NK-GS-3.5G Image Product description Power Dimensions: 145 * 58 * 65 (mm) Ceramic Dimensions: 127 * 60 (mm) Product name 1g-One ma
Brand
NQQK
Product name 3.5g One Chip
Ozone generator
Model NK-GS-3.5G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization.jpg Power Dimensions: 145 * 58 * 65 (mm)
Ceramic Dimensions: 127 * 60 (mm)



Product name 1g-One machine Kits Model NK-YTH-1G
Image Product description
YF-YTH-1G7g.jpg Product dimensions: 220 * 120 * 75 (mm)
Pump: 4L / min
Ozone production: 1000mg / H
Input voltage: 220V / 50Hz
Current consumption: <200mA
Power consumption: <18w
Cooling: Air Cooled
110V do



Product name 500mg Fruit Machine Kit Model NK-BSTJ-0.5G
Image Product description
NQQK NQQKELC  4L  min 500mg Fruit Machine Kit Ozone generator.jpg Power Dimensions: 70 * 40 * 25 (mm)
Ozone pipe size: 122 * 25 (mm)
Pump: 4L / min
Input voltage: 220V / 50Hz
Current consumption: <70mA
Power consumption: <10w
Output high-pressure: AC7.5 ± 0.5KV
110V do



Product name 10g Chip Ozone generator Model NK-PS-10G
Image Product description
10g 10000mg Chip Ozone generator.jpg Power Dimensions: 145 * 60 * 42 (mm)
Ceramic Dimensions: 150 * 50 (mm)
(New, positive and negative electrodes with discharge, ozone)
Input voltage: 220V / 50Hz
Current consumption: <400mA
Power consumption: <60W
Output high-pressure: AC4.5 ± 0.5KV
110V, 12V, 24V can be done



Product name 7g Chip Ozone generator Model NK-PS-7G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization Power Dimensions: 145 * 60 * 42 (mm)
(New type, positive and negative electrodes with discharge, generate ozone)
Ceramic Dimensions: 120 * 50 (mm)
Input voltage: 220V / 50Hz
Current consumption: <300mA
Power consumption: <60W
Output high-pressure: AC5.0 ± 0.5KV
110V, 12V, 24V can be done



Product name 1g Chip Ozone generator Model NK-PS-1G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization Power Dimensions: 145 * 60 * 42 (mm)
Ceramic Dimensions: 58 * 48 (mm)
Input voltage: 220V / 50Hz
Current consumption: <80mA
Power consumption: <15W
Output high-pressure: AC3.0 ± 0.5KV
110V, 12V, 24V can be done



Product name 3g Quartz tube ozone generator Model NK-GS-3G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization Power Dimensions: 145 * 60 * 42(mm)
Ozone pipe size: 210 * 30 (mm)
Input voltage: 220V / 50Hz
Current consumption: <140mA
Power consumption: <16W
Output high-pressure: AC8.0 ± 0.5KV
110V do



Product name 2g Quartz tube ozone generator Model NK-GS-2G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization Power Dimensions: 145 * 60 * 42(mm)
Ozone pipe size: 160 * 50 (mm)
Input voltage: 220V / 50Hz
Current consumption: <150mA
Power consumption: <15W
Output high-pressure: AC8.0 ± 0.5KV
110V can done



Product name 1g Quartz tube ozone generator Model NK-GS-1G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization Power Dimensions: 145 * 60 * 42(mm)
Ozone pipe size: 112 * 50 (mm)
Input voltage: 220V / 50Hz
Current consumption: <100mA
Power consumption: <12W
Output high-pressure: AC7.0 ± 0.5KV
110V do



Product name 500mg ozone generator Model NK-GS-0.5G
Image Product description
3.5g Air Purifier Plate Ozone Generator Module Ization Power Supply Dimensions: 70 * 40 * 25(mm)
Ozone pipe size: 122 * 25 (mm)
Input voltage: 220V / 50Hz
Current consumption: <70mA
Power consumption: <5W
Output high-pressure: AC7.5 ± 0.5KV
110V do



1 3.5g ozone generator.JPG2 3.5g ozone generator.JPG3 3.5g ozone generator.JPG
