4000W electronic voltage regulator motor fan speed control electric furnace heating tube thermostat AC 220v speed control switch

4000W SCR Voltage regulator
Brand
NQQK

4000W electronic voltage regulator motor fan speed control electric furnace heating tube thermostat AC 220v speed control switch

Product Description

Main Function:

The thyristor electronic voltage regulator is mainly used for resistive loads (Incandescent lamps, etc.), single-phase AC brushless motor, adjustable pressure range from 20V-220V, more suitable for low voltage drive heating wire Factory use: such as cutting styrofoam, pearl cotton, raincoats make it to adjust the voltage, reduce power and so on. With the new bi-directional high-power thyristor, the current is up to 40 amps, which solves the over-current problem caused by the electric resistance of the electric furnace wire when cooling is too small; it can easily adjust the output voltage of the mains at 10V- Continuously adjustable between 220V, zero delay, zero hysteresis. Use case: Heat regulation of electric stove and water heater, dimming of lamps and lanterns, small motor speed adjustment, electric iron thermostat and so on, so as to achieve the effer of temperature adjustment, dimming, speed regulation, and pressure regulation.



Precautions:

1. Please use within the rated power and voltage range, only suitable for AC grid.

2. It is a normal phenomenon that there is slight heat during work. Please use it in a dry and ventilated place. 3. Input AC 220V power, turn on the power switch, slowly adjust the voltage knob to change the voltage.

4. The machine does not adapt to the capacitor motor, adapt to the brush motor speed and electric wire resistance conductor.

5. The machine does not adapt to work on soft start or slow start voltage regulator.

6. Attention must first load and then adjust the voltage



Mapplication:

Electric furnace, water heater, the lamps and laterns that move light, small motor, solder iron temperature control and so on (Inductive or capacity load power should be reduced, the voltage regulator is equipped with two-way high-power thyrister, don't add any component can use , very convenient and practical.)

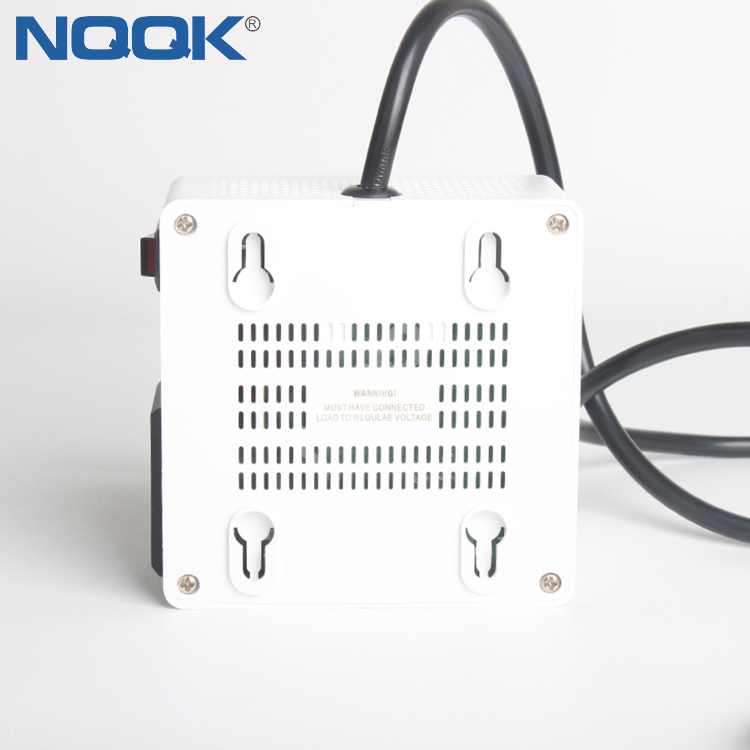

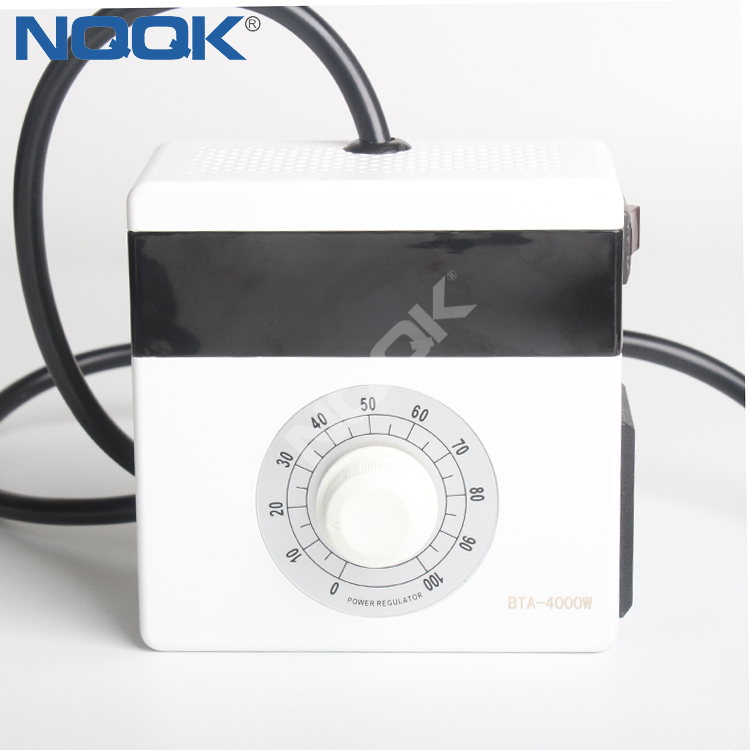

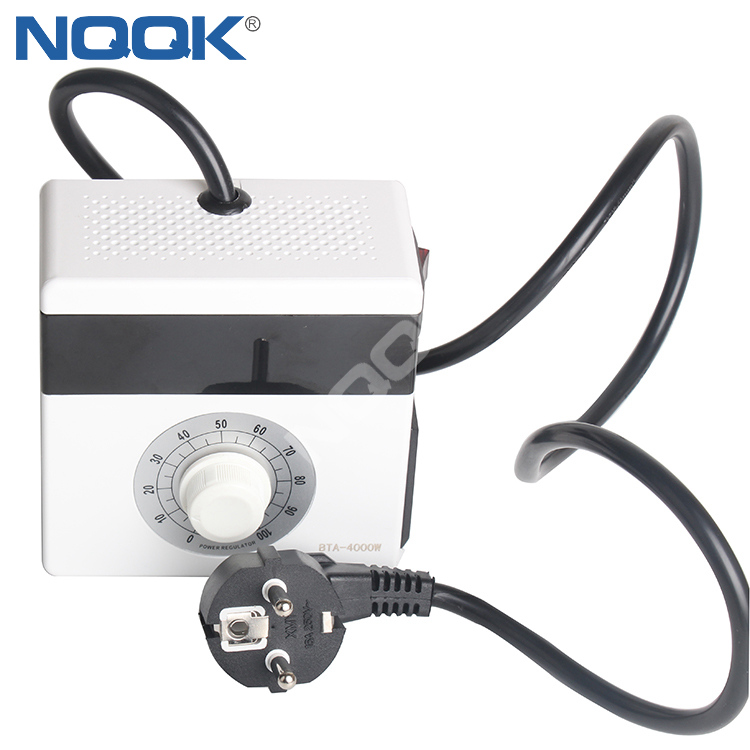

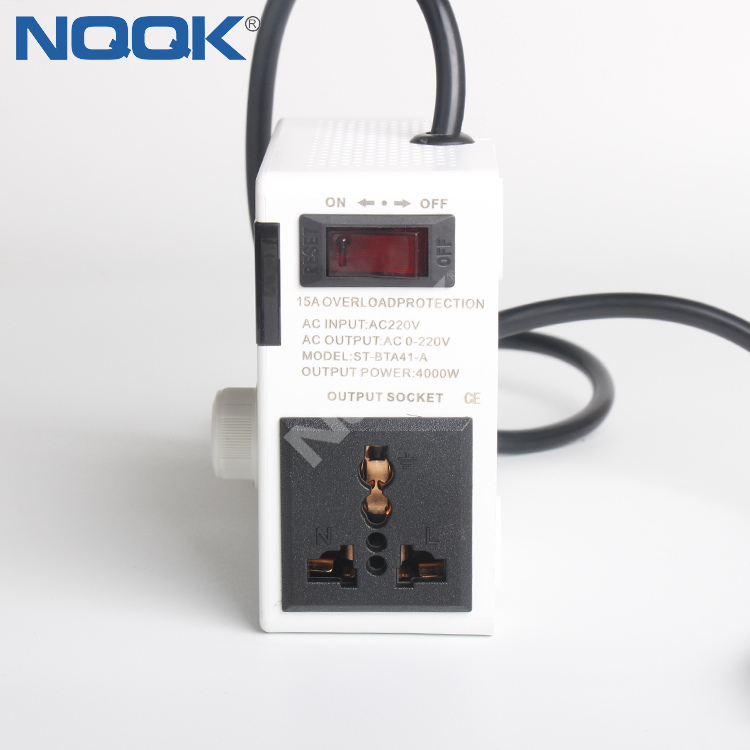

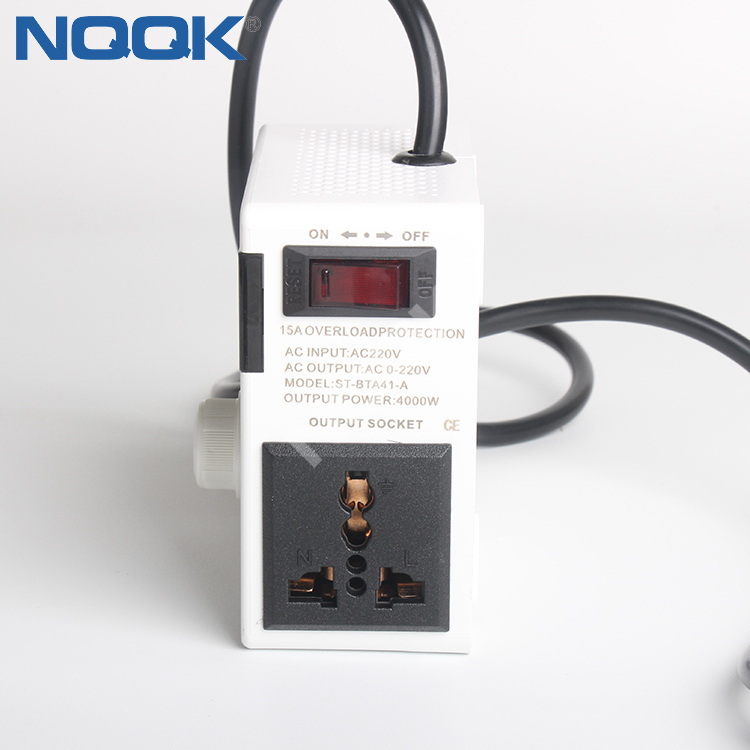

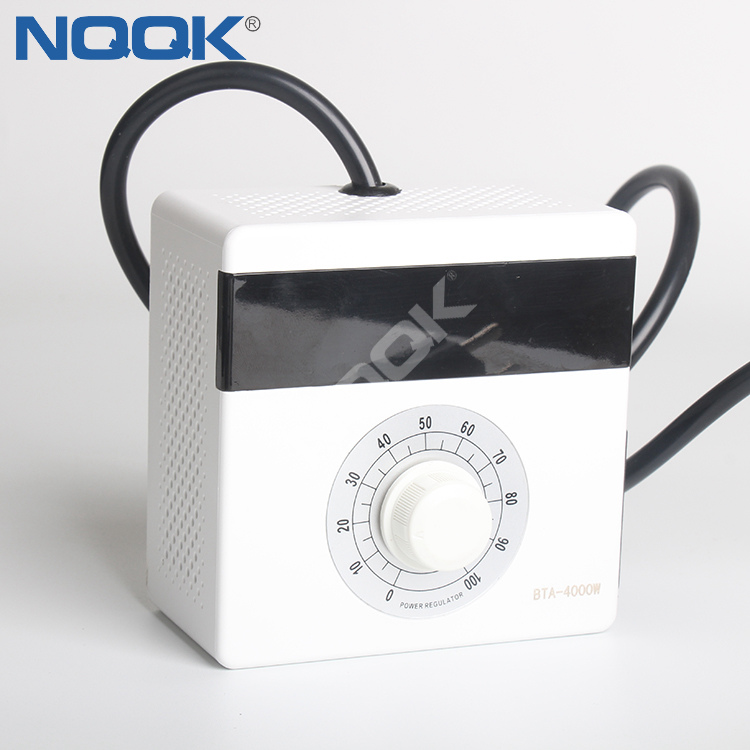

1  BTA-4000W Thermostats.JPG2 BTA-4000W Thermostats.JPG3 BTA-4000W Thermostats.JPG4 BTA-4000W Thermostats.JPG5 BTA-4000W Thermostats.JPG7 BTA-4000W Thermostats.JPG




Product name Thyristor electronic regulator
Product number ST-BTA41-B
Input voltage AC220V
Output voltage 0-220V adjustable (the output voltage is less than the input voltage)
Maximum power  4000W (at 220V)
Voltage regulation range 0-220V stepless adjustable (with load conditions) step-down can be 0, boost starting 20V or so.
Rated current 9A
Maximum current 18A
Product Features Zero hysteresis, zero delay, with a peak voltage to attract the circuit to effectively protect high-power thyristor against surge, anti-spike, RC absorption of multiple protection





temperature speed Lumin

Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery

osity Thyristor SCR AC electronic regulator
