Indicator light

CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light

Model
AD16-22SM
Brand
NQQK
Product name
LED flashing alarm buzzer indicator light,12V / 24 volt signal light,pilot lamp AD16-22SM
Product model
AD16-22SM
Mount hole size
22mm
Product material
Plastic
Work el
Contact Now
CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light
CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light CE AD16-22SM red green 12V / 24 volt 22mm buzzer signal light , LED alarm buzzer indicator light
Product name LED flashing alarm buzzer indicator light,12V / 24 volt signal light,pilot lamp AD16-22SM
  Product model AD16-22SM
  Mount hole size 22mm
  Product material Plastic
  Work electric voltage 6V,12V,24V,36V,48V,110V,220V,380V
  LED light color Red, Green
  Continuous working Life ≥30000 hours
  Power frequency withstand voltage 2.5KV(AC RMS),1min
  Allow Instantaneous voltage fluctuation ±20%(110V above)
  Rated working current ≤20MA
  Use frequency(AC) 50~60HZ
  Brightness ≥100cd/m2
  Comparative tracking index  CT1≥100,inflaming retarding
  Insulation Resistance Ui≤60V is 5MΩ,60V <Ui≤660V is 50MΩ

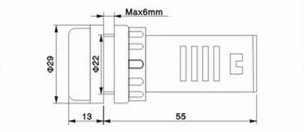

 Drawing
