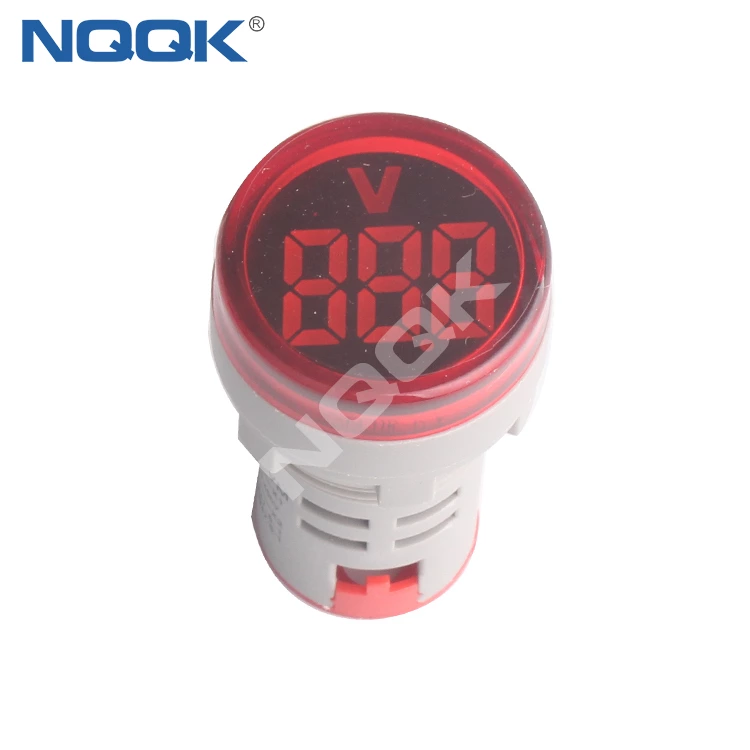

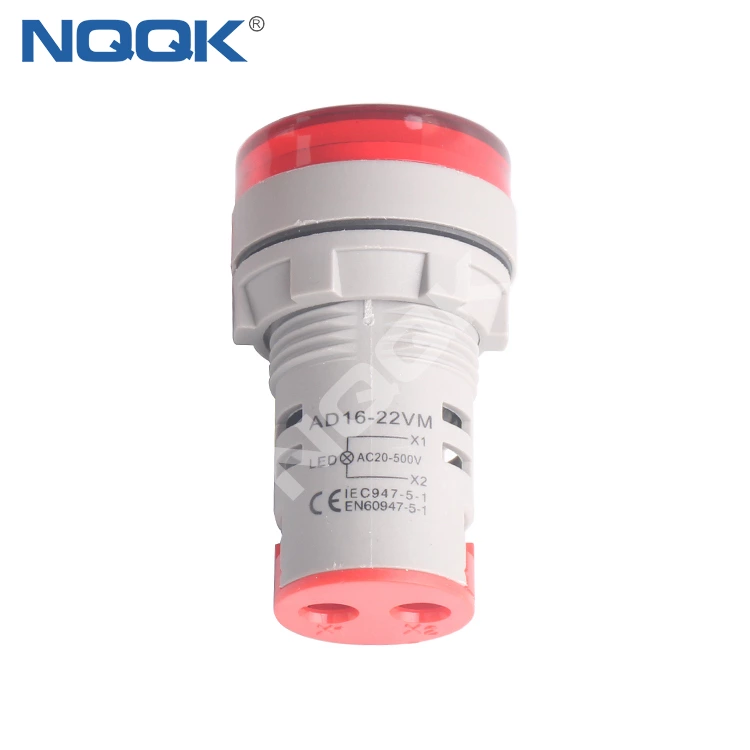

CE AD16 22mm Mini LED Indicator Digital Voltage Meter Voltmeter

Model
AD16-22VM
Brand
NQQK
CE AD16 22mm mini LED indicator digital voltage meter voltmeter
Product Description
1. Model:
AD16 indicator light (pilot light) Volmeter
2. Features:
Lens Material: PC;
Lighting Source: LED;
Contact Now
CE AD16 22mm Mini LED Indicator Digital Voltage Meter Voltmeter
CE AD16 22mm Mini LED Indicator Digital Voltage Meter Voltmeter CE AD16 22mm Mini LED Indicator Digital Voltage Meter Voltmeter CE AD16 22mm Mini LED Indicator Digital Voltage Meter Voltmeter

CE AD16 22mm mini LED indicator digital voltage meter voltmeter

Product Description



1. Model:

AD16 indicator light (pilot light) Volmeter



2. Features:

Lens Material: PC;
Lighting Source:  LED;
Color of lamps: R-red, Y-yellow, B-blue, G-green, O-orange, W-white;
Volt.: 50V--500V;
Color of Lens: Red, Orange, Blue, Green
Nature of supply: AC ;
Rated Temp : T90;
Life of continuous working: Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;
Certification: ISO9001,  VDENEC,  CE, EMC, CQC, CCC,ROHS;
Reasonable price and efficient services.



3. Main technical parameters

Environmental Temperature: -25+55;
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity: ≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree: Head IP65(OEM could be IP67);
Voltage of working frequency: 2.5kV (AC valid value), 1min;
Leakage Index: CT1≥100;
Frequency: AC 50-60Hz



Type Indicator Lights volmeter
Input Voltage 20-500V
Color Red, Orange, Blue, Green ,White
Diameter 22mm
Life ≥30,000h
Brightness ≥60cd/Square Meters
Lamp Body Material Plastic
Beam Angle Square
Colors red /green /yellow /white
Certifications Certifications ISO9001, CE, CQC, ROHS, etc.
