Indicator light

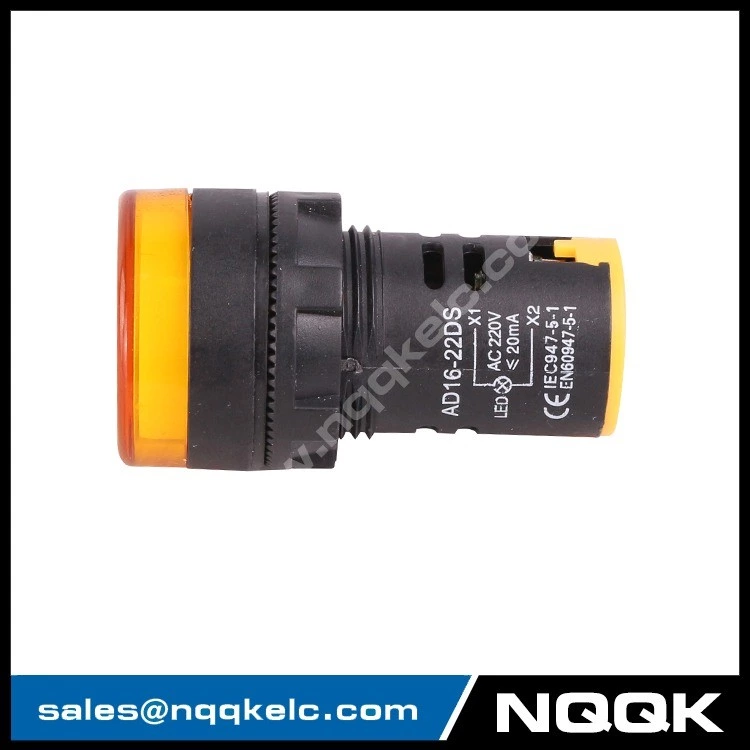

AD16-22DS 22mm Mounting Dia. Panel led pilot Indicator Lights lamp

Model
AD16-22DS
Brand
NQQK
AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED Lighting head Signal Indicator lamp Light
Product Description
AD16-22D indicator light
AD16 series use pure color high brightness LED light emi
Contact Now

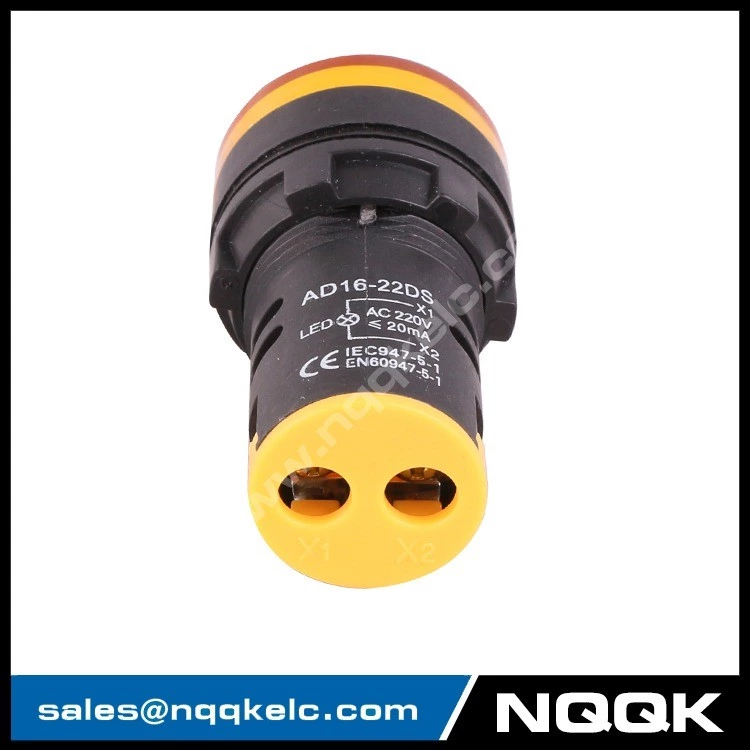

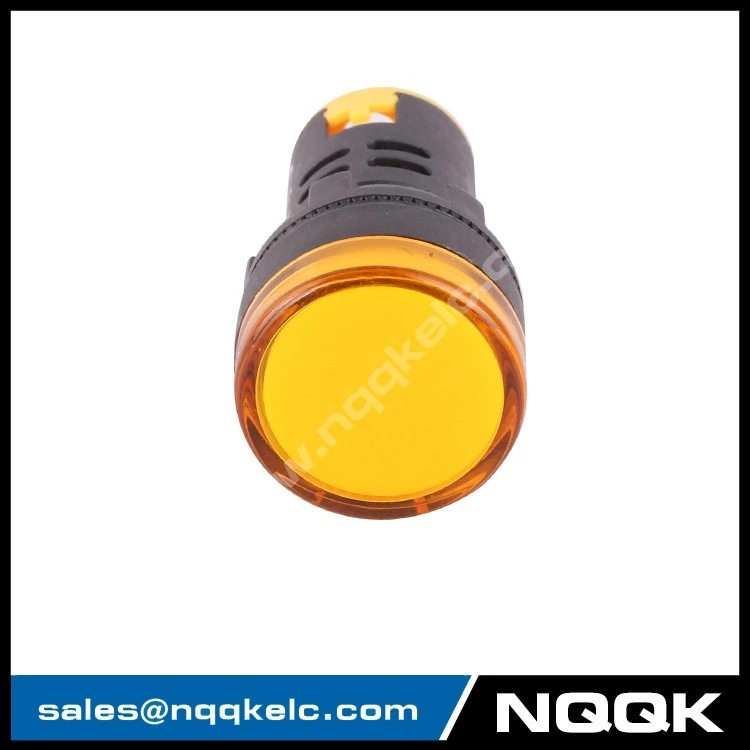

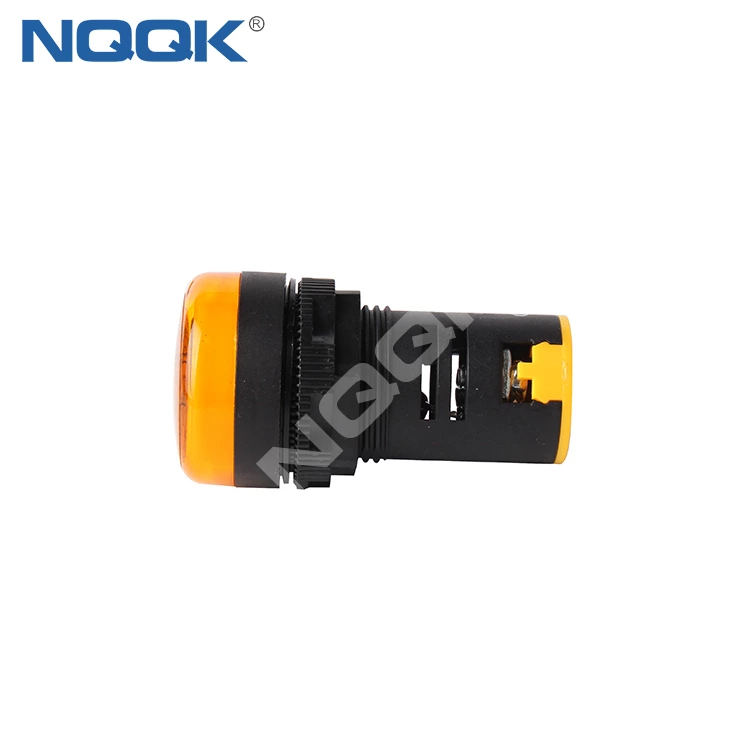

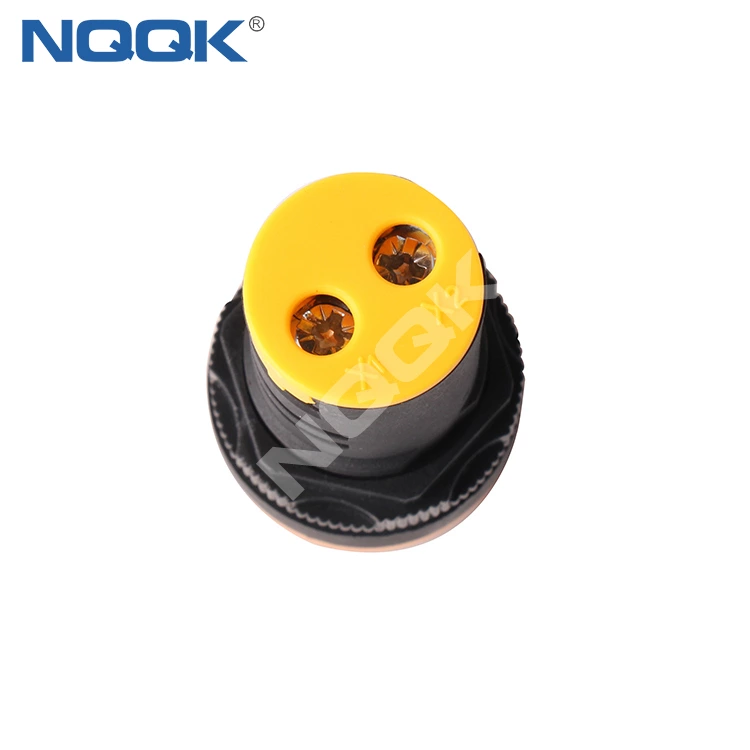

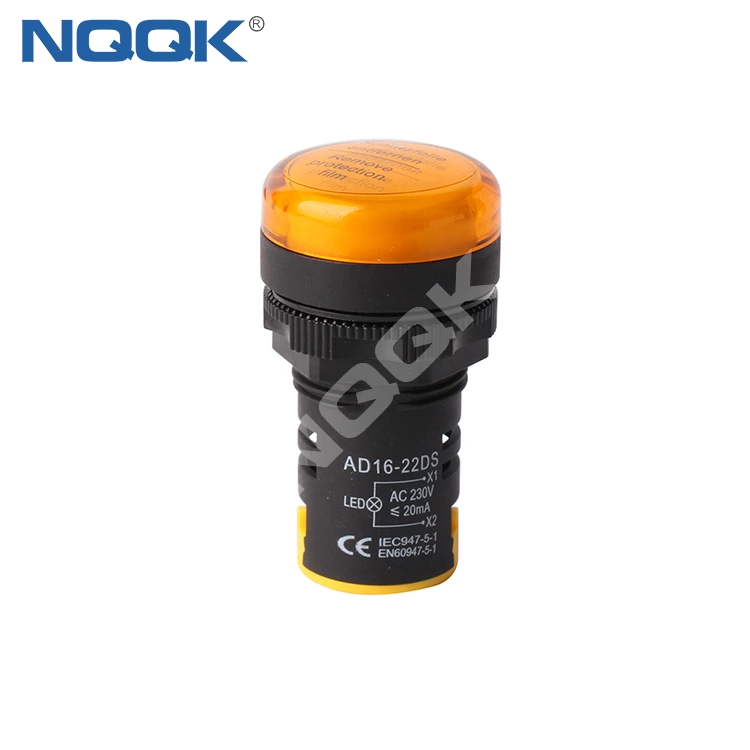

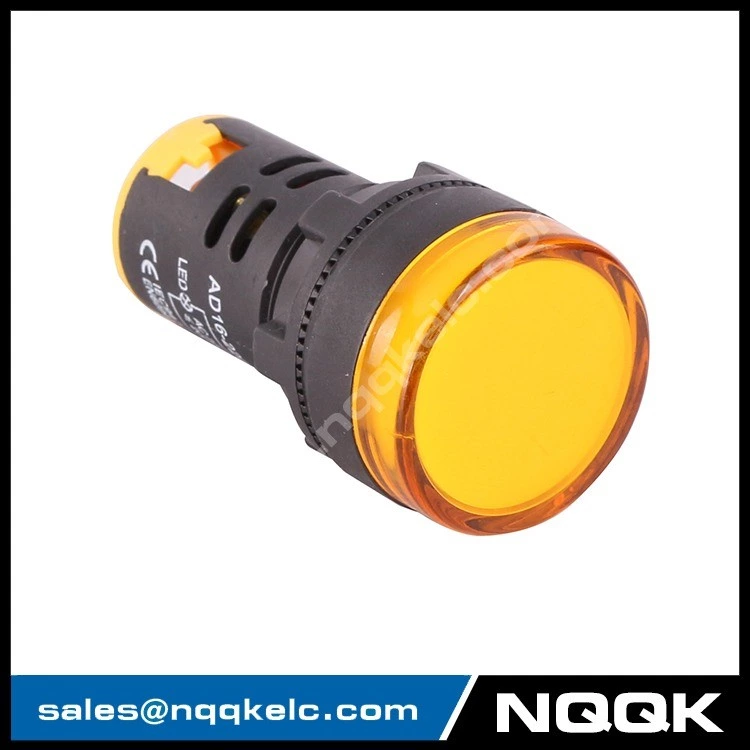

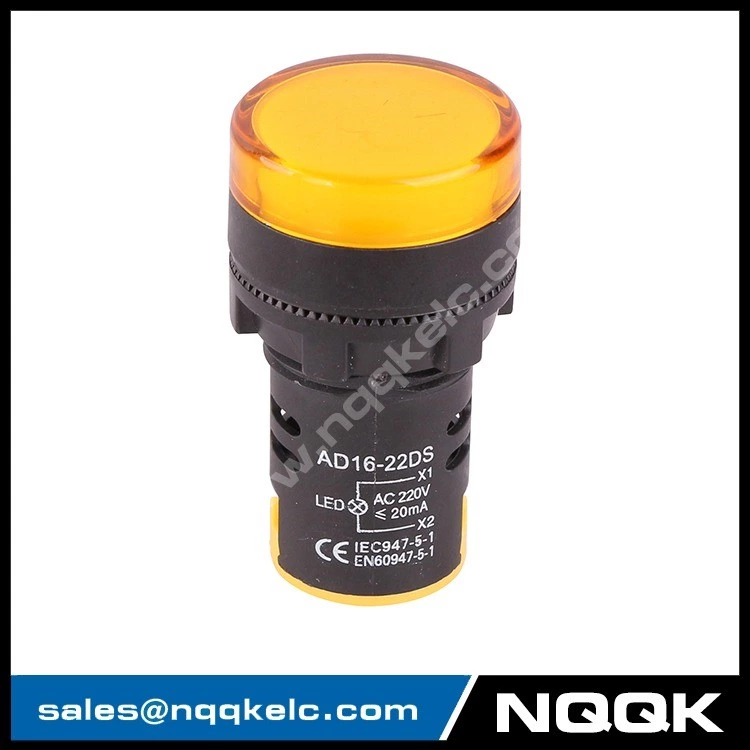

AD16-22DS 22mm Mounting Dia. Panel led pilot Indicator Lights lamp
AD16-22DS 22mm Mounting Dia. Panel led pilot Indicator Lights lamp AD16-22DS 22mm Mounting Dia. Panel led pilot Indicator Lights lamp AD16-22DS 22mm Mounting Dia. Panel led pilot Indicator Lights lamp AD16-22DS 22mm Mounting Dia. Panel led pilot Indicator Lights lamp

AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED  Lighting head Signal Indicator lamp Light

Product Description

AD16-22D indicator light

AD16 series use pure color high brightness LED light emitting chip as light source, long service life, low energy consumption, small volume, light weight, head in a variety of styles, high brightness, good reliability, beautiful shape and sophisticated manufacture, it is suitable to be used in electricity, telecommunications, machine tools, ships, textile, printing, mining machinery and other equipment line indication signal, notice signal, accident signal and other indication signal.



1.Voltage: 6V 12V 24V 36V 48V 110V 220V 380V AC/DC

2.Red / Yellow / Green / Blue / White



Working condition:

1.Operational temperature: -25~+55

2.Relative humidity: ≤98%

3.Normally workable when vibration frequency is 2-80Hz with acceleration of 0.7g.

4.Pollution degree is 3  ,the installation  category class is III

5.One with "TH" mark can work in the conditioan of moist heat

Apply to Signal lines for directions signal, anticipating signal, fault signal and any other signal, which in electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, etc.



Technical data:

1.Power frequency with stand voltage:2.5KV per minite.(effective AC value)

2.Insulation resistance: ≥2MΩ

3.Allowable voltage fluctuation:±20%

4.Continous operating life: 30000H

5.Brightness: ≥100cd/m2

6.CTI ≥ 100

7.Protective degreee of the head IP65,IP67 is available on request



 Type  AD16-22
 Expected life  30,000hours
 Rated current  20Ma
 Insulating resistance  2MΩ
 AC voltage fluctuation  ±20%
 Opertaing temperature  -25+55
 Vibration frequency  2.80Hz acceleration 0.7g
 IP rating  IP65
 Box quantity  10



Packaging:

Selling Units: Multiple of 1000

Package size per batch:  54X33X32 cm

Gross weight per batch: 22.5 KG

Package Type: packing : Standard export box and carton 1000pcs packed in each carton As customer's requests

AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED Lighting head Signal Indicator lamp Light AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED Lighting head Signal Indicator lamp Light AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED Lighting head Signal Indicator lamp Light AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED Lighting head Signal Indicator lamp Light AD16-22DS 22mm 12V 24V 110V 220V red blue yellow LED Lighting head Signal Indicator lamp Light

Company Information



Trade Information

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
