22mm Electric power monitor AC voltage current power frequency intelligent digital display meter

OX-D48-2058 Multi-Function Digital Meter Product Description OX-D48-2058 Multi-Function Digital Meter User Guide OX-D48-2058 DIN-rail multi-function Digital meter can measure AC voltage, AC curren
Brand
NQQK

OX-D48-2058 Multi-Function Digital Meter



Product Description



OX-D48-2058 Multi-Function Digital Meter

User Guide

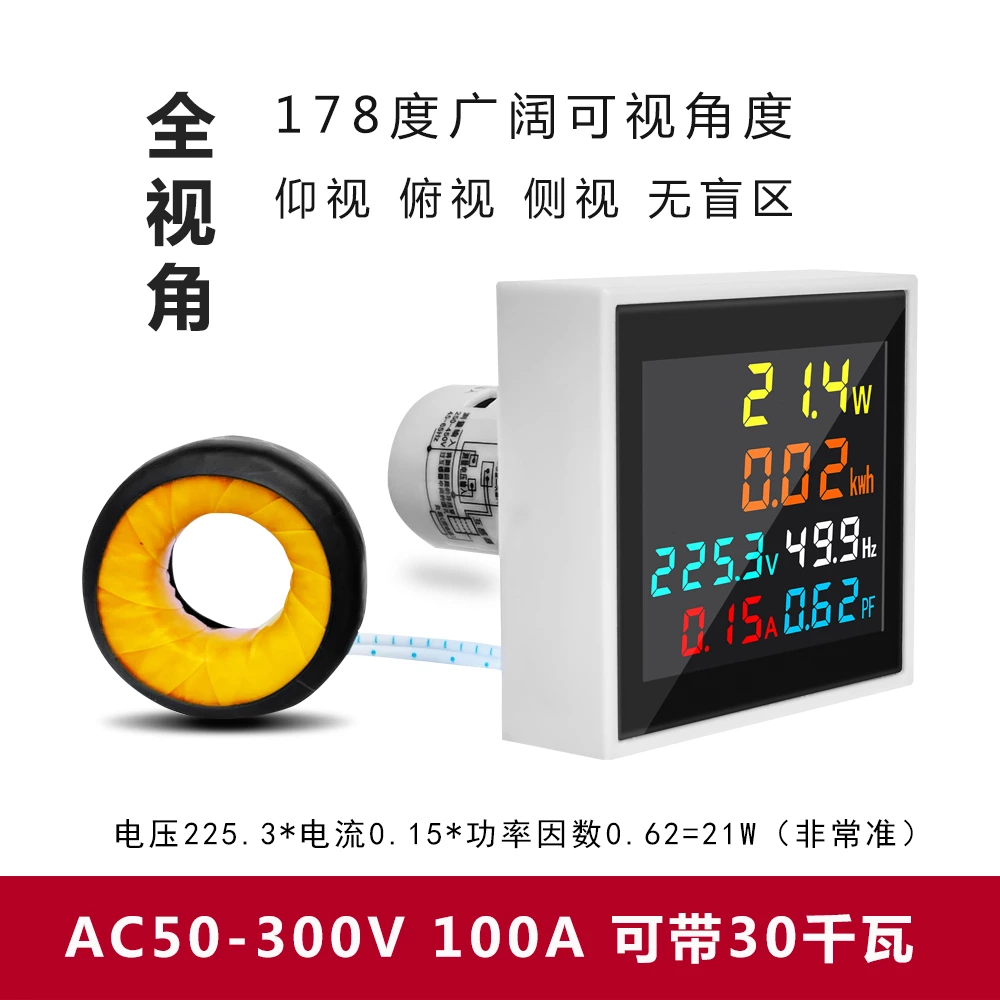

OX-D48-2058 DIN-rail multi-function Digital meter can measure AC voltage, AC current, power factor, active
 power, electric energy and power frequency. The meter display part adopts the color high-definition LCD screen

Technical Indicators
1.Accuracy: 1%±2 words
2.Range: AC voltage : AC 50.0-300.0V/ AC 250.0-450.0V ( You should select the one type of meter in your order ).
AC current:AC0.0-99.99A (the accuracy is 0.01A when measure signal lower than 100A, when measure
signal higher than 100A, the meter will show 100.0A)
Power frequency: 45.00-65.00Hz
Power factor: 0.00 - 1.00PF
Active power: 0-45000W ( The display accuracy is 0.1W when the active power between 0 and 9999.9W, otherwise the accuracy is 1W)
Electric energy: 0-99999kwh (The display accuracy is 0.01kwh when the electric energybetween0-999.99kwh,0.1kwhwhentheelectric energy between 10000.0-9999.9kwh,0.01kwh when the electric energy between 100000-99999kwh
3.Speed: 2 times per second

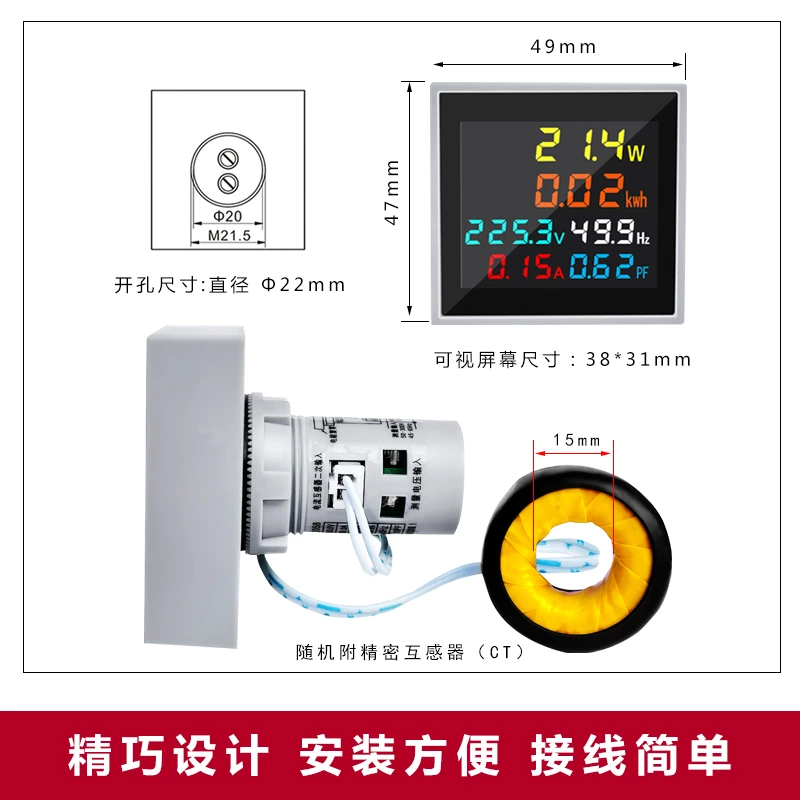

4.Size: 49×47×52
5.Hole: diameter Φ22mm
6.Autosave: When the meter power is off, the current electric energy value will be automatically saved . the meter
will read the value after the next power on and going to keep adding to the saved value.number.

Application Method

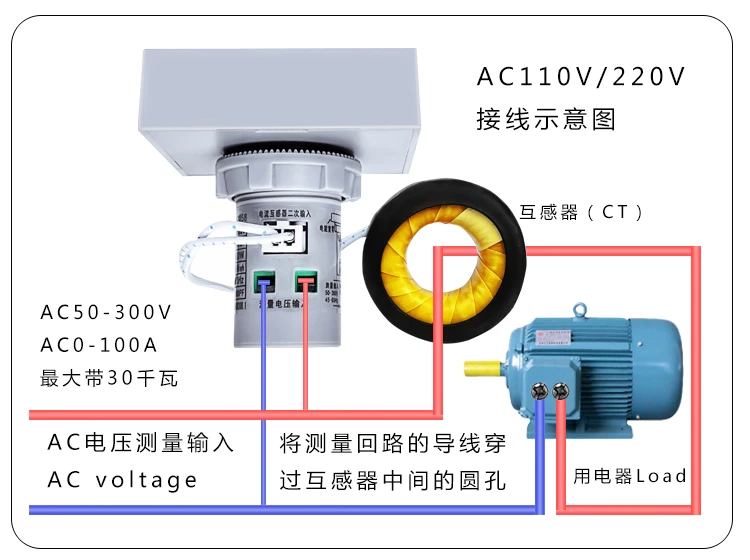

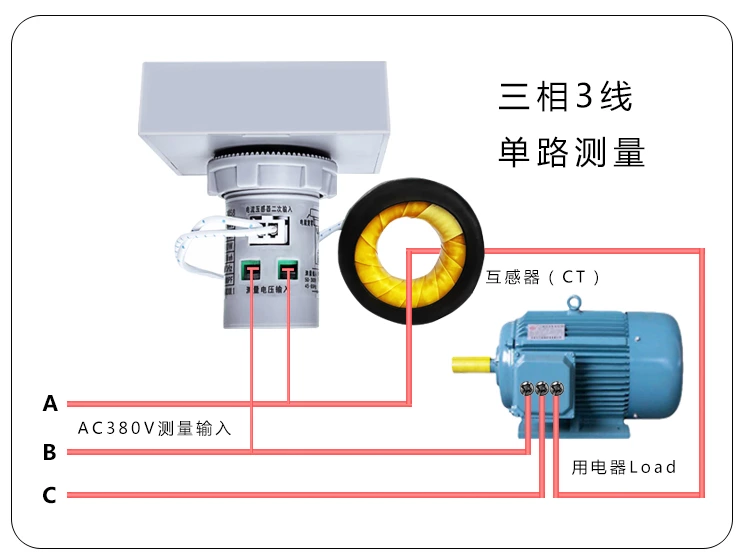

1.According to the wiring diagram, connect the plug two-wire of the current transformer to transformer the input on
meter, make the current return conductor across the hold which in the middle of the current transformer.
2.Connect the voltage measurement to the voltage input terminal of the meter. Then turn on and measure the voltage to start to read the measure result.
3.The electric energy reset button is on the right-bottom of the meter, you can press the button with a needle last for
4. second, then the electric energy will be reset.

Attention
The meter with measure range between 250-450V can only use to measure 50Hz AC city electricity, it will be
destroyed when use to measure square wave, output of inverter and correction sine wave. The meter with measure range between 50-300 not affected.
