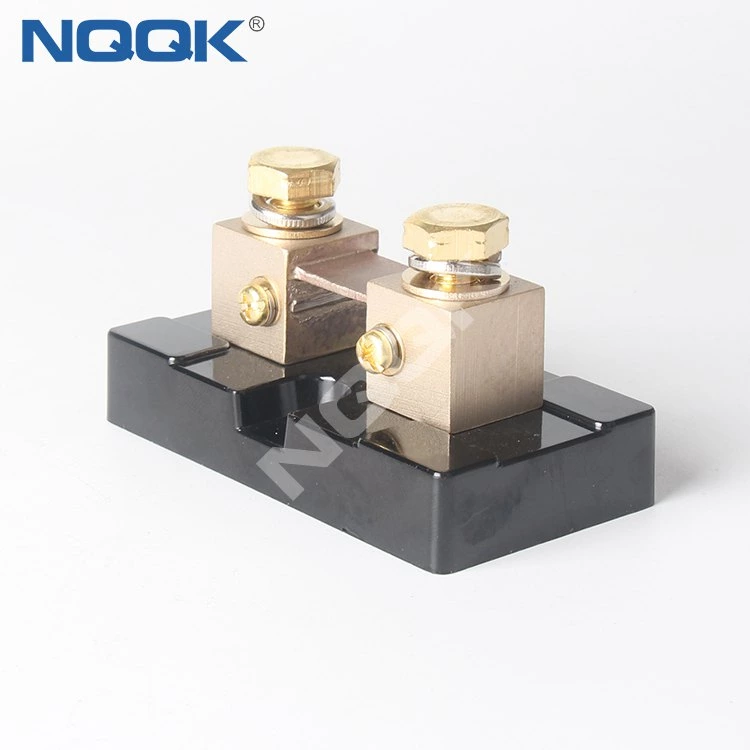

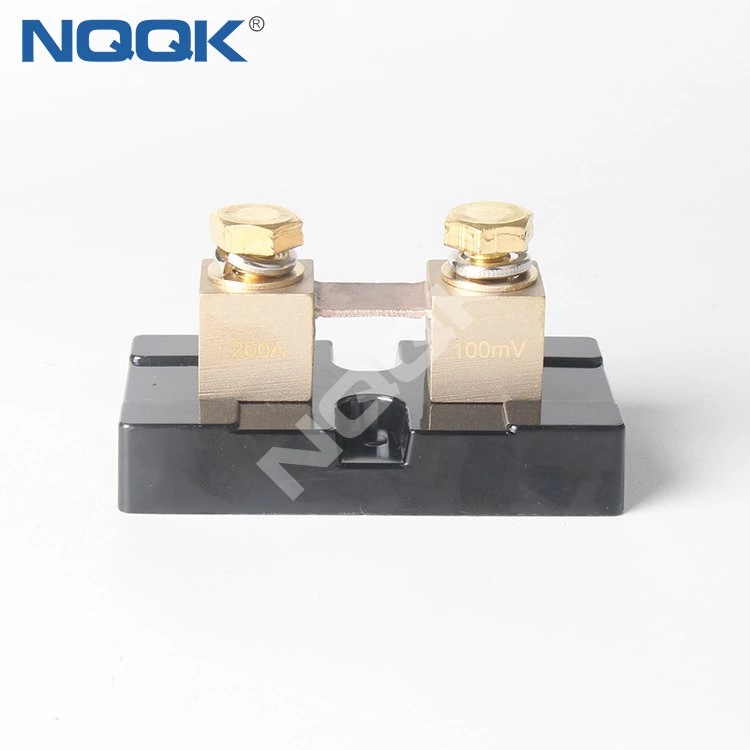

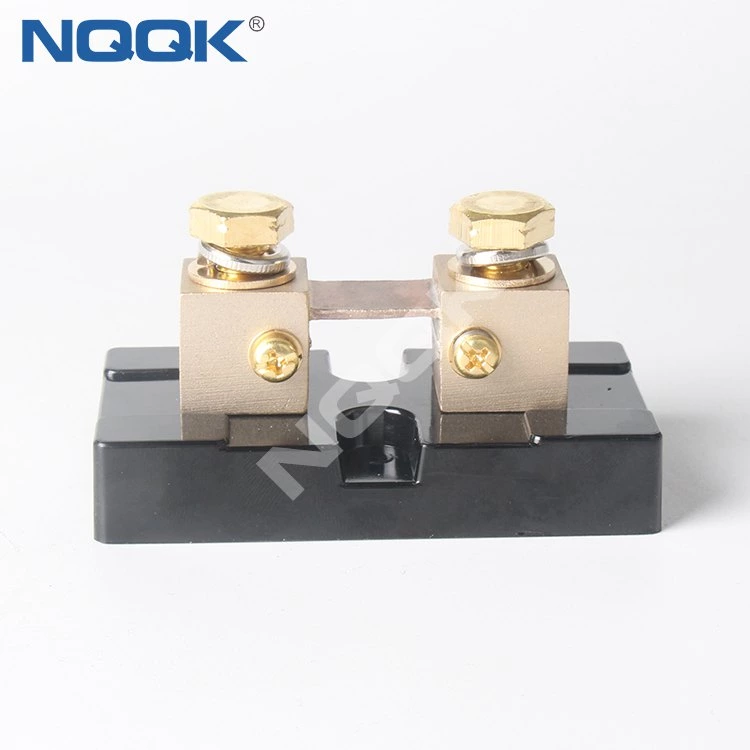

USA Type 200A 100mV DC Brass Electric Current Shunt Resistors for Ampere Panel Meter
- US-4 200A 100mV
2. Application：For Telecommunications equipment、Electric cars、Aerospace、Charging station、
Electroplating Power Equipment、Instrument and meter, Dc power system, etc..
USA type 200A 100mV DC brass Electric current Shunt Resistors
for Ampere Panel Meter
The main technical parameters:
1, accuracy level: 2 ~ 4000A; 0.5: 5000 ~ 10000A; 1 level.
2, the ambient conditions: -40 ~ +60 ℃, relative humidity ≤ 95% (35 ℃).
3, overload performance: rated current 120%, 2 hours.
4, the voltage drop: 50mV60mV70mV100mV
5, the load under the heat: temperature stability tends to change, the rated current 50A the following does not exceed 80 ℃;
rated current 50A or more does not exceed 120 ℃.
(Or copper) and the shunt connection is not allowed to have artificial contact resistance, the sampling point of the
secondary voltage can not be sampled from the non-sampling point.
Actual use of the current (long) is recommended not to exceed 80% of rated current.
|Color||Black and Silver|
|Material||Copper with nickel plated|
|Overload capacity||120% of rated current for 2hr|
|Function||are used to multiply the measuring range of current of measuring instruments.|
|Application||Use for DC digital Amp Meter.|
