5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor

1. Use: The interchangeable shunts are used to multiply the measuring range of current of measuring instruments. 2. Application:For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument and meter, Dc power system, etc..
Brand
NQQK

FL-RS Russia type 30A 75mV DC Electric current Shunt Resistors for Amp Panel Meter Currect Monitornitor

Product Description

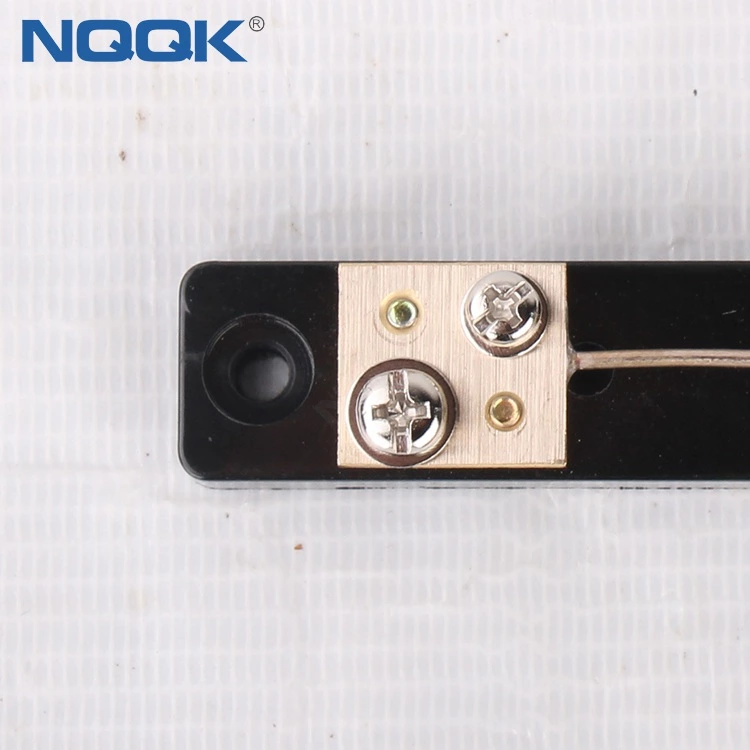

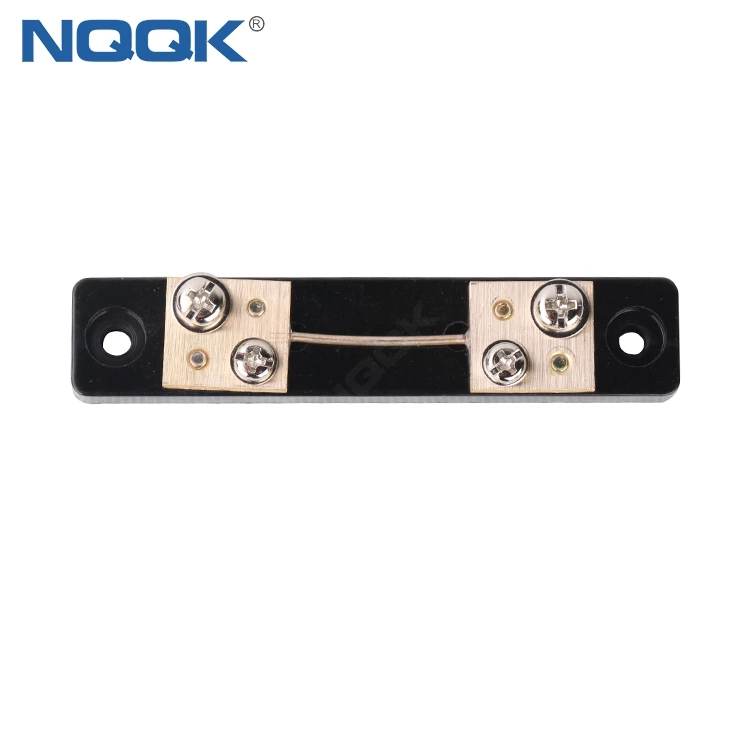

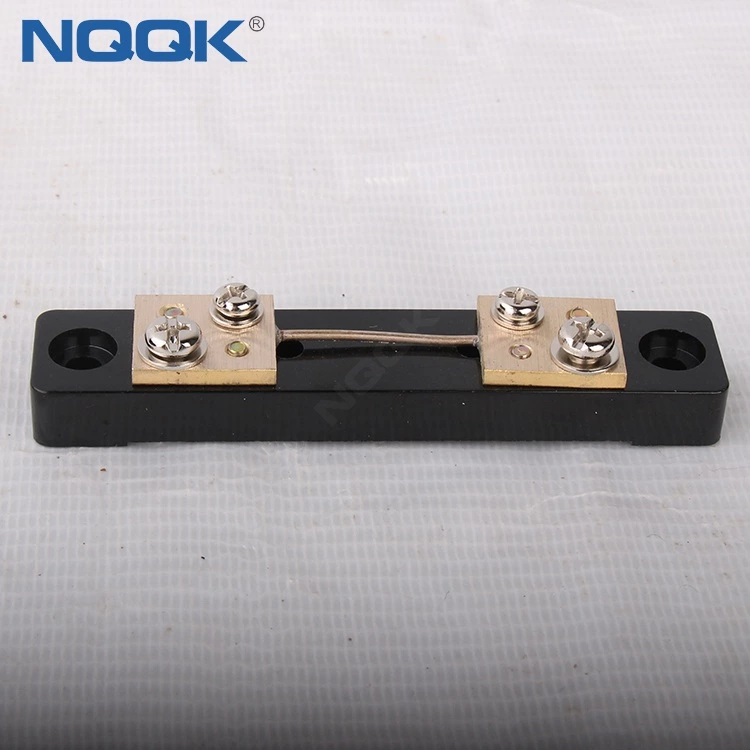

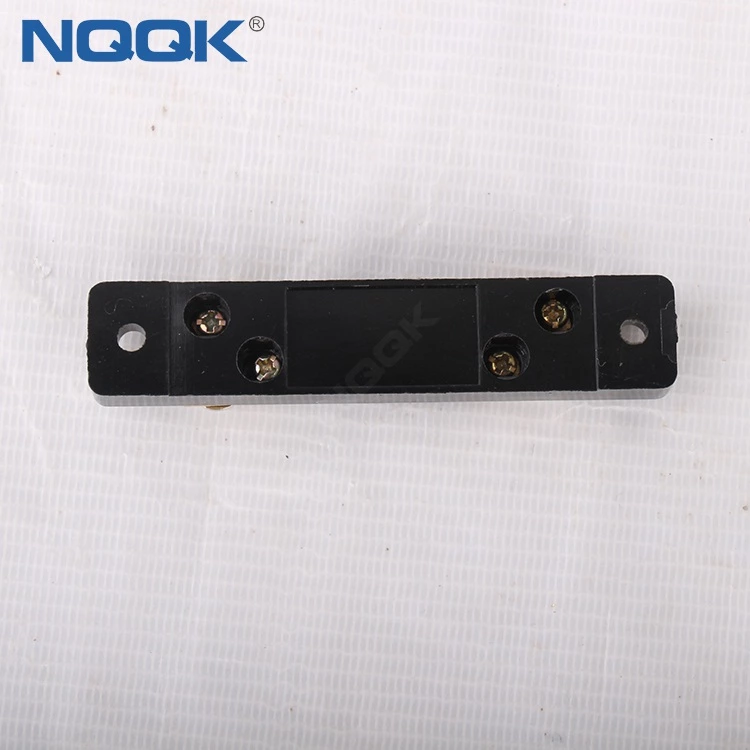

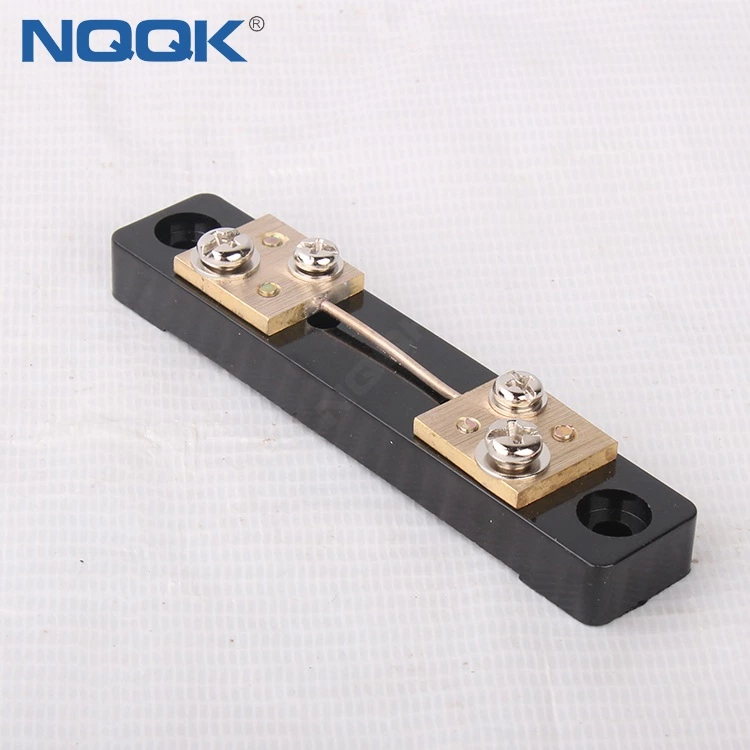

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor



The main technical parameters

1, accuracy level: 2 ~ 4000A; 0.5: 5000 ~ 10000A; 1 level.
2, the ambient conditions: -40 ~ +60 ℃, relative humidity ≤ 95% (35 ℃).
3, overload performance: rated current 120%, 2 hours.
4, the voltage drop: 50mV60mV70mV100mV
5, the load under the heat: temperature stability tends to change, the rated current 50A

the following does not exceed 80 ℃; rated current 50A or more does not exceed 120 ℃.



Precautions:

(Or copper) and the shunt connection is not allowed to have artificial contact resistance,

the sampling point of the secondary voltage can not be sampled from the non-sampling point.

Actual use of the current (long) is recommended not to exceed 80% of rated current.



Color Black and Silver
Current rating 10A-3000A
Voltage drop 75mV,60mV,100mV
Accuracy class 0.5/0.2
Material Copper with nickel plated
Overload capacity 120% of rated current for 2hr
Function are used to multiply the measuring range of current of measuring instruments.
Application Use for DC digital Amp Meter.

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor

5-10A 75mV RS Type Voltmeter Ammeter DC Current Manganin Shunt Resistor
